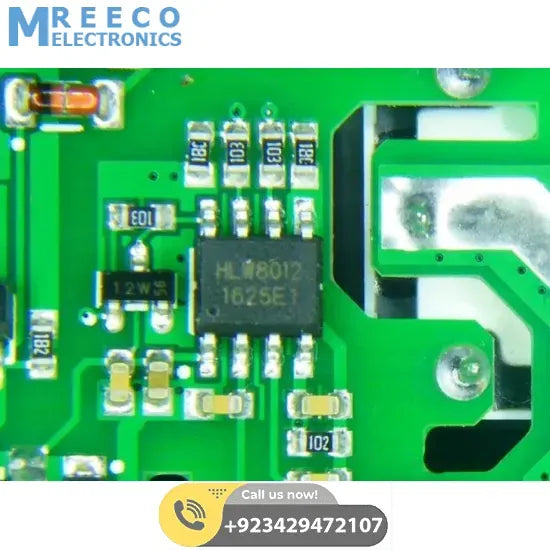

HLW8012 Energy Metering IC

HLW8012 is a single-phase multi-function metering chip that provides high-frequency pulse CF for energy metering, indicating active power, and high-frequency CF1 for indicating current RMS or voltage RMS

HLW8012 Energy Metering IC Features:

• High-frequency pulse CF, indicating active power, ±0.2% accuracy in 1000:1 range
• High-frequency pulse CF1 can be configured as output current arms or voltage arms, achieving 0.5% accuracy over a 500:1 range
• Built-in oscillator
• Low power consumption, +5V single-supply operation, working power less than 15mW

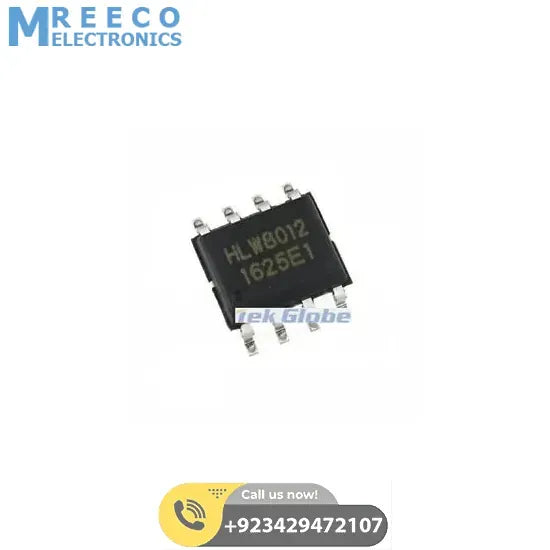

• SOP-8 package

Download Arduino Library:

Chip Pin:

1. VDD: Power supply, 5V voltage
2. V1P: Analog input, Current Channel Differential Input, Maximum Differential Input Voltage Range ±43.75mV
3. V1N: Analog input, 4
4. V2P: Analog input, Voltage Channel Positive Input, Max Input Signal ±700mV
5. GND: Simulated ground, Simulated ground
6. CF: Digital output, Output active power high-frequency pulse, pulse duty cycle 50%
7. CF1: Digital output, SEL=0, CF1 output current arms, pulse duty cycle 50%, SEL=1; CF1 output voltage arms, pulse duty cycle 50%
8. SEL: Digital input, Configure CF1 output current or voltage arms, internal pull-down

Application:

• Metering socket
• Smart home electricity collector
• Intelligent street light power collection end
• The power quality monitoring system
• Various types of energy metering systems

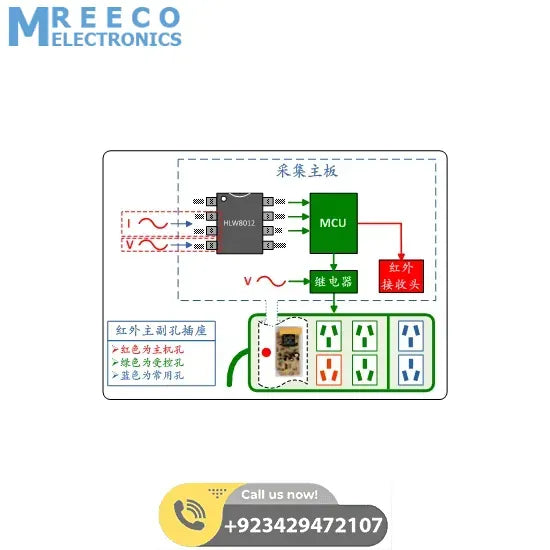

• Internal block diagram
