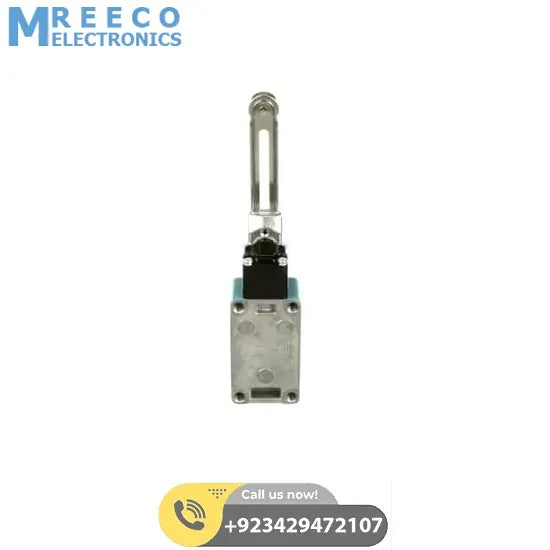

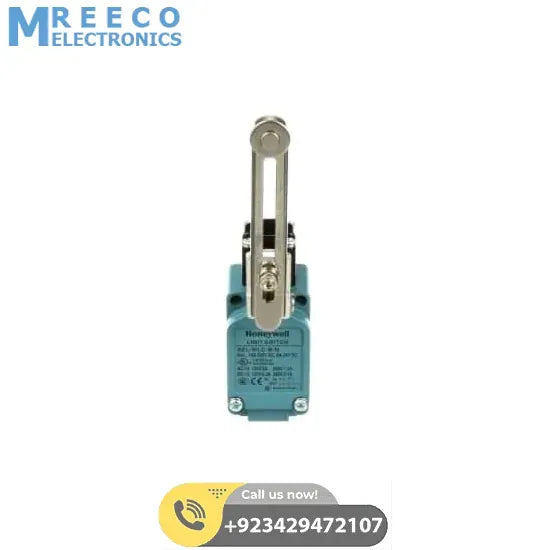

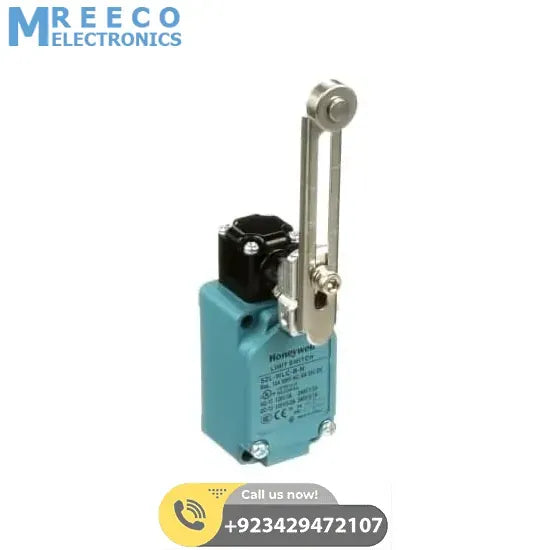

Honeywell Adjustable Roller Rotary Lever Limit Switch Szl-wlc-b

Honeywell limit switch is general purpose limit switches with cost-effective switches that may be used in a wide range of applications from general-purpose conveyors to heavy-duty machinery. This rotary lever is rugged and reliable, the SZL-WL Series switches are specially designed for worldwide use and supported by Honeywell’s vast experience in serving industries around the globe. This Arduino limit switch is with High-quality material. High-quality product offerings combined with Honeywell’s global sales and service resources makes the SZL-WL Series the smart choice for industries whose goal is to minimize plant downtime and reduce overall maintenance costs.

Features Of Honeywell SZL-WLC-B Limit Switch:

• Two-circuit double break.
• High mechanical strength.
• Wide choice of actuators.
• Rugged diecast housing.
• Set position indicator plate for easy maintenance.
• Standard mounting dimensions.
• Oil tight, waterproof and dustproof construction.
• Long mechanical life.
• 10 A current capacity.
• UL, CE, CSA approved.

Specifications Of Honeywell Die-Cast Aluminium Limit Switch Rotary Lever:

1. Part Status: Active
2. Circuit: SPDT-DB
3. Switch Function: On-Mom
4. Current Rating: 10A (AC), 6A (DC)
5. Voltage Rating AC: 125V
6. Voltage Rating DC: 24V
7. Actuator Type: Side Rotary, Adjustable Roller
8. Mounting Type: Chassis Mount
9. Termination Style: Screw Terminal
10. Ingress Protection IP67: Dust Tight, Waterproof
11. Operating Force, Torque: 3 in-lb
12. Pretravel: 30°
13. Differential Travel: 16°
14. Overtravel: 60°
15. Operating Position: 30°
16. Mechanical Life: 10,000,000 Cycles
17. Electrical Life: 750,000 Cycles
18. Operating Temperature: -10°C ~ 80°C

Package Includes:

• 1 x Honeywell SZL-WLC-B Limit Switch
