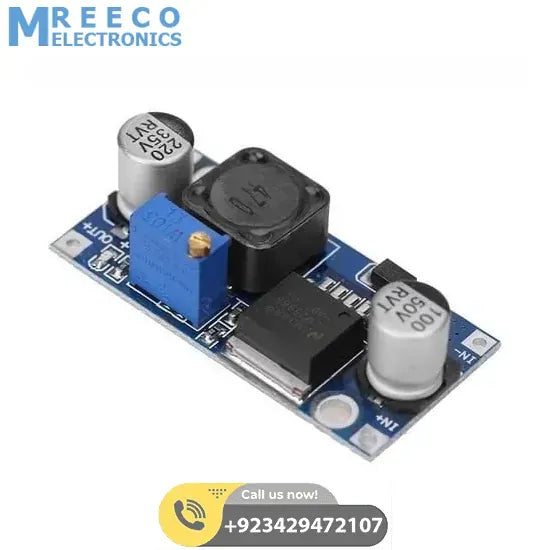

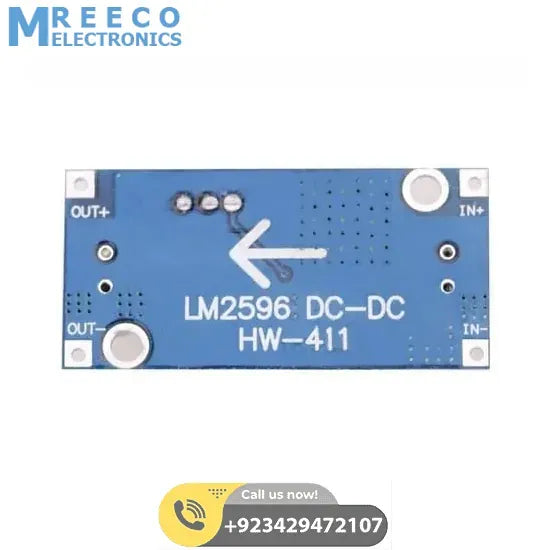

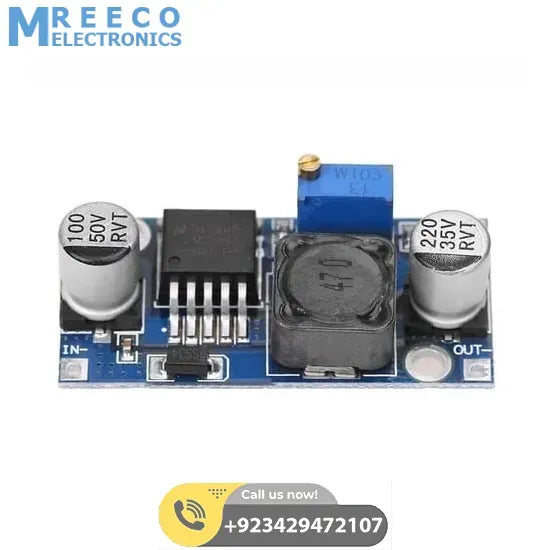

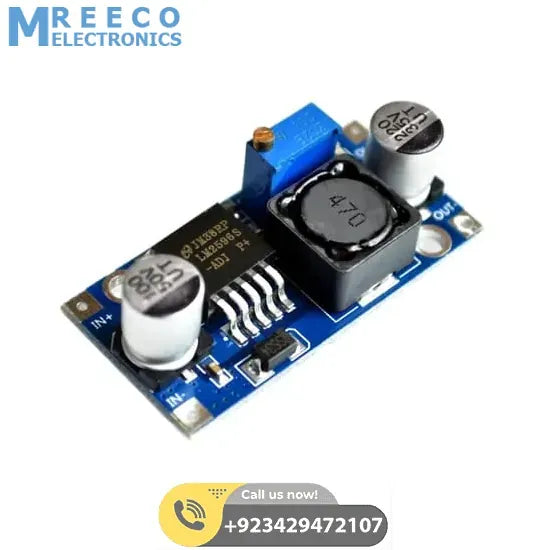

HW-411A LM2596 DC To DC Buck Converter Step Down Module Power Supply

LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators

Features Of DC-DC LM2596 DC-DC Adjustable Buck Converter Step Down Module Power Supply:

• Non-isolated step-down (BUCK) switching regulator.
• Short circuit protection: Current limiting, self-recovery
• Potentiometer adjustment direction
• Non-synchronous rectification

Specifications of LM2596 3A Adjustable Voltage Regulator Buck Module:

1. Model name: DC-DC LM2596S buck module
2. Input voltage:3.2V~46V (recommended for use in 40V)
3. Output voltage:1.25V~35V
4. Output current:3A (maximum)
5. Conversion efficiency:92% (highest)
6. Output ripple:<30mV
7. Switching frequency:65KHz
8. Working temperature:-45 ~ +85
9. Dimension:21mm * 43mm * 14mm (length * width * height)

Package Include:

• 1x DC To Dc Buck Converter Step Down Module Power Supply LM2596
