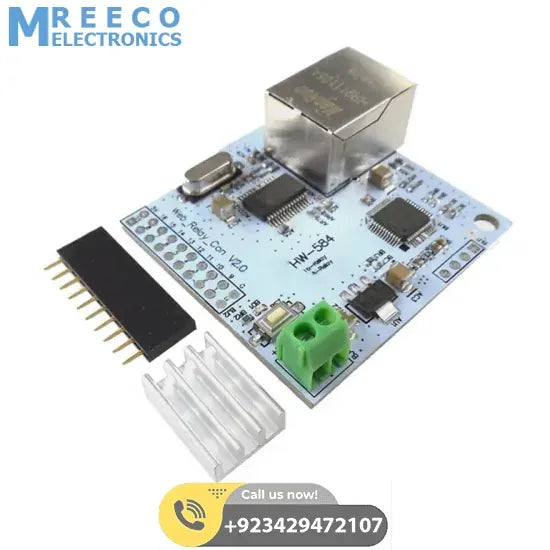

HW-584 8 Way W5100 Network Control Switch 5 Volt Network Relay Module Internet of Things

The 8-way network module is a network relay control module based on 32-bit system. Through this module, the relay module can be controlled through the Internet or router internal network, thereby realizing the purpose of remotely controlling the electrical switch to realize centralized power management. This product can be set and controlled directly through IE browser. Please refer to the instructions for use.

With 8 relay output modules, the relay output contacts are up to 250V 10A.

Applicable to: home decoration, hotel, shopping mall, Internet cafe, Karaoke regular management, daily office, physical store monitoring, Internet of things, industrial equipment, test equipment power control, unattended, underground pipelines, mining equipment, ships, Machine room, street light management, intelligent management, centralized management.

Precautions:

When connecting a high-voltage power module, pay attention to the wiring to avoid equipment damage caused by short-circuit.

Technical specifications:

• External power supply voltage: 5.5V DC 2A Max
• Power with load: 5W
• The load capacity of the relay: 250VAC 10A (2500W AC) or 30VDC 10A (300W) The actual power used should be within 70% of the relay's nominal value, so as not to affect the service life.
• Relay life: 1 million times
• Working temperature: -30~85°C
• The relay can directly control various devices and loads;
• There are 8 normally open and 8 normally closed contacts;
• The blue KF301 terminal is more convenient to connect to the control line.
• Module size: 138m * 56mm* 18.5mm (length * width * height)
• 4 fixing bolt holes, hole 3.1mm, spacing 131mm*49.5mm

2, the default IP: 192.168.1.4 port: 30000

Open the browser, enter the address bar: http://192.168.1.4/30000 to enter the control interface

3. Relay control HTTP command:

Relay 1-8 way command:

Http://ip/port/00:Relay-01 OFF

Http://ip/port/01: Relay-01 ON

Http://ip/port/02:Relay-02 OFF

Http://ip/port/03:Relay-02 ON

Http://ip/port/04:Relay-03 OFF

Http://ip/port/05: Relay-03 ON

Http://ip/port/06 :Relay-04 OFF

Http://ip/port/07:Relay-04 ON

Http://ip/port/08 :Relay-05 OFF

Http://ip/port/09 :Relay-05 ON

Http://ip/port/10 :Relay-06 OFF

Http://ip/port/11 :Relay-06 ON

Http://ip/port/12 :Relay-07 OFF

Http://ip/port/13 :Relay-07 ON

Http://ip/port/14 :Relay-08 OFF

Http://ip/port/15 :Relay-08 ON
