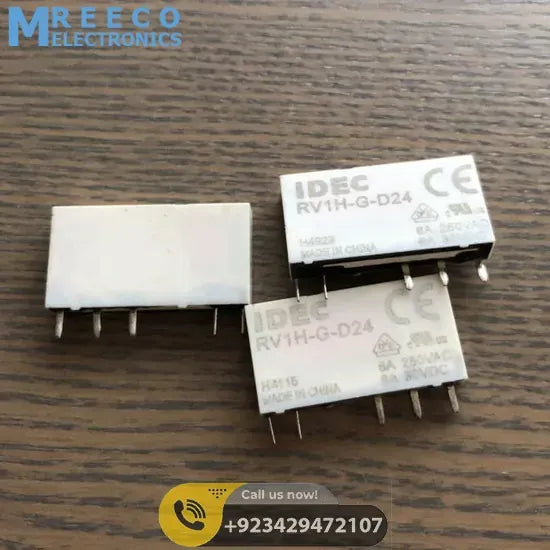

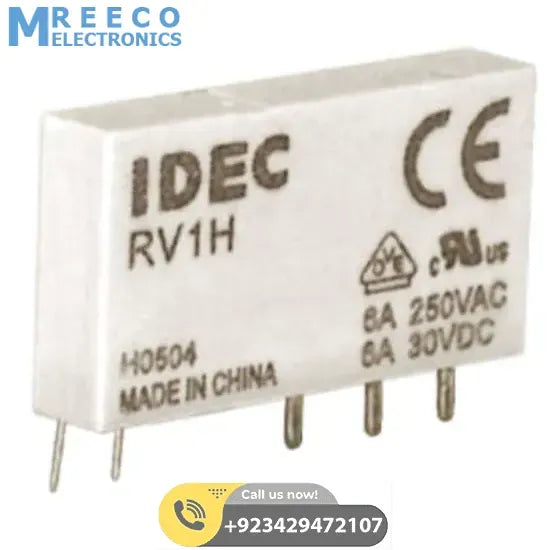

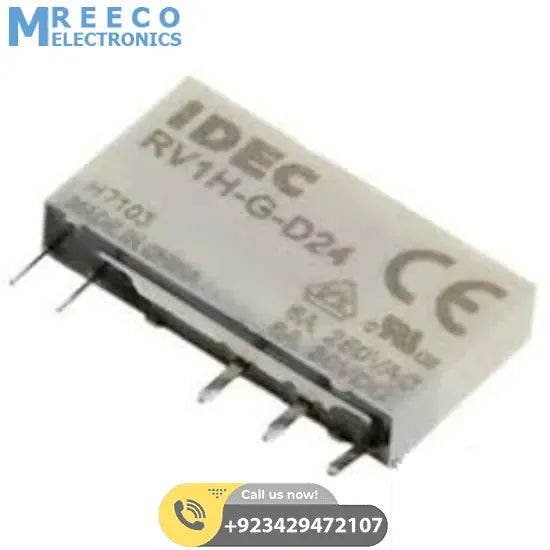

IDEC RV1H G D24 Used Power Relay

RV1H-G-D24 is a Replacement Relay with DC coil for use with RV8H-series interface relay.

This replacement relay has 1CO (SPDT) Au-plated AgNi contact. 6mm wide slim interface relays provide a perfect solution for general-purpose relay applications in compact spaces. It can be used as a universal interface between the controller and the actuator to switch small and medium size loads.

Au-plated = gold plated contacts

AgNi = Silver-Nickel material

Specifications:

1. RV 6mm Relay
2. SPDT spec
3. Voltage rating: 24V DC
4. Only 70mm in height from DIN rail

Features:

1. High dielectric strength and impulse withstand voltages
2. Reverse polarity protected
3. Gold-plated contacts (RV8H-L & S and RV8H-2)
4. 6A contact rating on 6mm RV8H, 8A on RV8H-2, 16A rating on RV8H-1
5. Operating temperature of -40ºC ~ 80°C for EMR
6. RoHS compliant

Typical usage:

These relays are ideal for:

1. PLC and electronic systems
2. Industrial automation
3. Panel builders
4. Assembly machine application
5. and other applications that require a high switching capability.

Datasheet of RV1H-G-D24 replacement relay:

Datasheet

Package includes:

• 1x RV1H-G-D24
