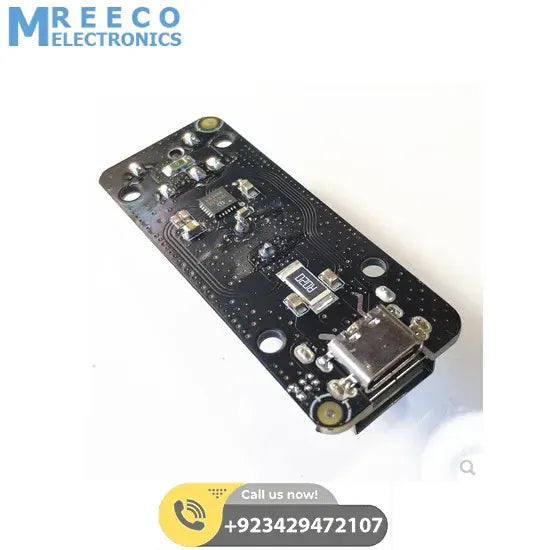

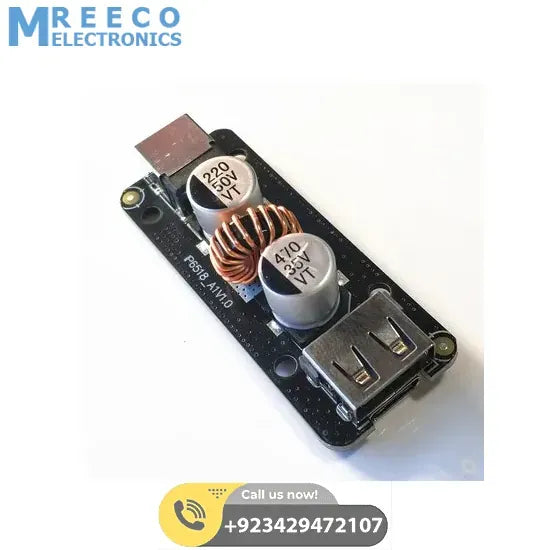

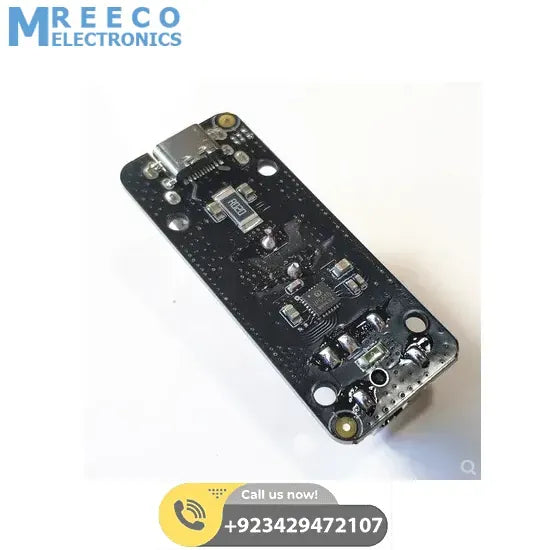

IP6518 Full Protocol Fast Charging Board Module Qualcomm QC3.0 FCP In Pakistan

The IP6518 chip integrates the HiSilicon fast charge protocol and Qualcomm QC2.0/3.0USB interface fast charge protocol, which can quickly charge devices that support FCP and QC2.0/3.0 protocols. In addition to supporting the USB BC1.2 standard, it also supports Apple and FOR Samsung devices. The chip can automatically detect whether the currently connected device is a QC2.0/3.0 or FCP device to automatically adjust the voltage.

IP6518 Full Protocol Fast Charging Board Module Parameters:

1. Input voltage range: 10.5 goes 32 V
2. Output voltage range: 3 V to 20 V
3. Automatic adjustment according to the fast charge protocol (the input must be higher than the 2 V output)
4. Output power: 45 W WAVGAT store: Wavgat.aliexpress.com
5. Output current:
6. 3V --- 3.6A 5V ---- 3.4A
7. 7V ---- 3A 9V ---- 3A 12V ---- 3A
8. 15V ---- 2.3A 20V ---- 2.3A
9. Police voltage output: 5 V 7 V 9 V 9 V 12 V 15 V 20 V
10. Line add-on function, 125mv / A
11. Conversion efficiency: 97%

Support for:

1. BC1.2 Apple
2. Qualcomm QC2.0 QC3.0
3. Huawei FCP SCP
4. Mediatek MTK PE + 1.1 / PE / + 2.0
5. Samsung AFC quick charge agreement
6. Fast loading protocol SFCP

Note:

• Update of the One-plus mobile phone system, this chip is no longer compatible with one-plus flash charging;
• High current USB plug due to the use of 5 A, the contact resistance is low. When using SCP and other high-current low-voltage loads, the load current can overcome the overcurrent protection phenomenon of A and IP651 8

Package Include:

• 1 x IP6518 Full Protocol Fast Charging Board Module Qualcomm QC3.0 FCP
