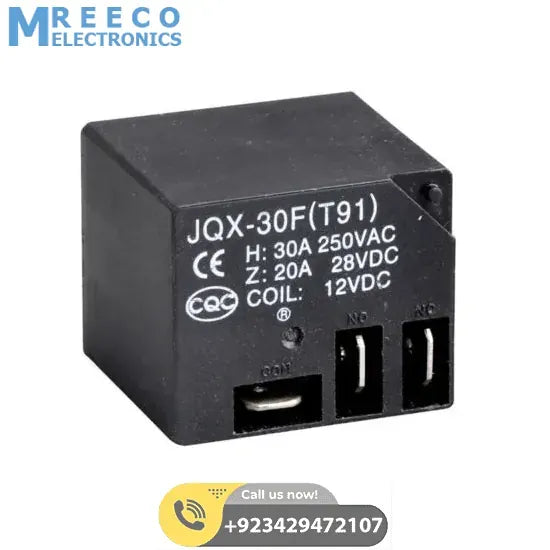

JQX-30F DC12VC Relay T91 Relay

The JQX-30F electromagnetic relay is an electromechanical switch which allows low circuits to operate high current ones. This DC12VC relay is a small size, lightweight and with low coil power consumption. This relay has many advantages compared to conventional switches. For this reason, this best relay has diverse industrial and household applications.

Features & Specifications Of Electromagnetic JQX-30F (T91) Coil 12VDC 240VAC/20A Relay:

• Model: JQX-30F (T91)
• Type: universal
• Nominal coil voltage: 12 VDC
• Nominal contact system voltage: 240 VAC
• Contact capacity: 20 A / 240 VAC
• Contact configuration: SPST - NO
• Number of pins, feathers: 6
• Coil power: <0.9 W
• Switch-on time: 10ms max
• Mounting: PCB + 2 terminals - 6.3mm auto pen
• Contact resistance: <50 mOhm
• Insulation resistance: > 100 MOhm / 500 VDC
• Mechanical endurance of contacts: 1,000,000 times
• Electrical endurance of contacts: 100,000 times
• Dielectric strength between open contacts: 1000 V rms / per 1 min
• Dielectric strength between coil and contacts: 1500 V RMS / per 1 min
• Operating temperature: from -45°C to + 70°C
• Dimensions: 32 x 27 x 28 mm
• Similar products: SIEMENS T91; OMRON G7G

Applications:

• Industrial and power management.

Package Includes:

• 1 x JQX-30F DC12VC Relay
