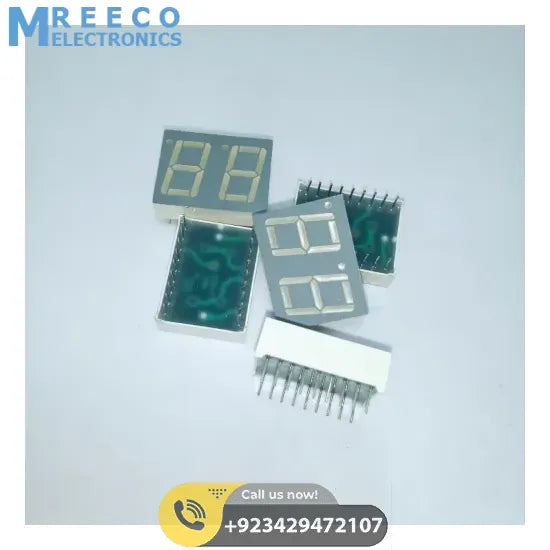

LED 7 Segment 2 Digit Common Anode Display 25MMX17MMX10MM

LED 7 Segment 2 Digit Common Anode

Features of LED 7 Segment 2 Digit Common Anode Display:

• Adopt 0.36 inch 2-digit common Anode Nixie tube
• Adopt low-level signal control for Nixie tube segment / bit-choice
• Connect VCC to the power supply, GND to ground, segment terminal a, b, c, d, e, f, d, up to single-chip I/O port.
• Notice: Forbid connect segment terminal to ground, otherwise, the Nixie tube segment terminal will be destroyed;
• Connect a bit-choice terminal to C1 and connect C2 to single-chip I/O port
• With LED indicator, it will be turned on when powered on

Specifications of LED 7 Segment 2 Digit Common Cathode Display:

1. Product Name: LED Digital Display Tube
2. Type: Common Cathode
3. Common Cathode: 10-5
4. Digital Display: 2 Digit
5. Digital Number: 2 Bit 7 Segment
6. Emitted Color: Red
7. Pin Number: 10
8. Continuous Forward Current: 20mA
9. Average Forward Voltage: 2V
10. Power Consumption : 36mW
11. Luminous Intensity: 11mcd
12. Number Height: 0.35 inch
13. Panel Size : 15 x 14 x 7.2mm / 0.59 x 0.55 x 0.28 inch (L*W*H)
14. Total Size : 15 x 14 x 13.5mm / 0.59 x 0.55 x 0.53 inch (L*W*H)
15. Material: Plastic, Metal
16. Colour: Black, White

Package Includes:

• 1 x LED 7 Segment 2 Digit Common Cathode Display
