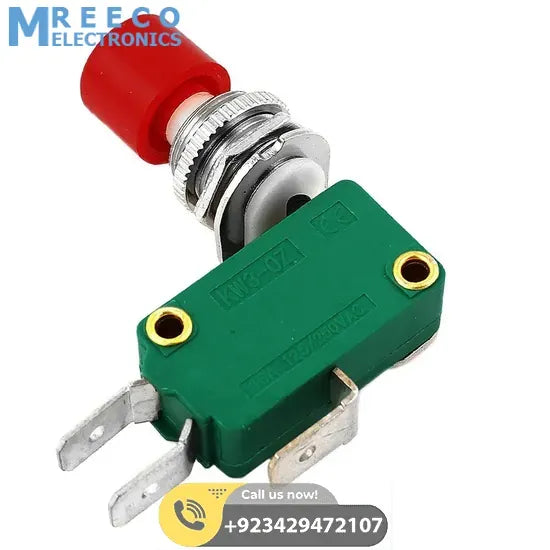

Limit Switch With Fitting

AC 125V/250V 16A SPDT NO NC Momentary Red Cap Push Button Micro Switch DS438

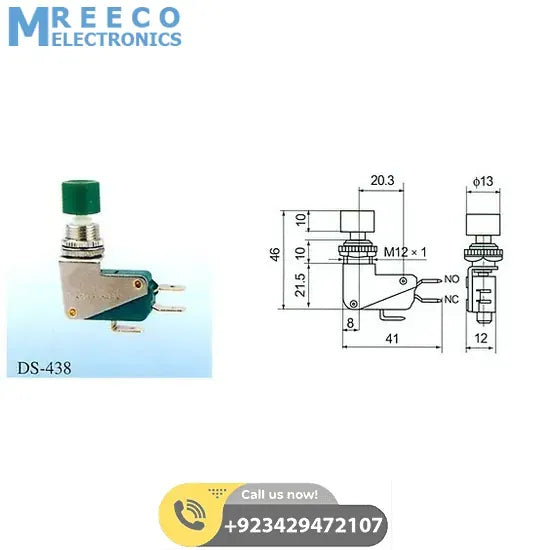

3 terminals, push button actuator with bracket, applicable to AC control circuits. Designed to control the movement of a mechanical part. The micro switch is applicable to AC control circuits, NO NC type and with a push button to control, single pole double throw and momentary contact type. High precision mechanism design offering acute operation and long life. Dia of Holes in Terminals: 1.6mm/ 0.06″. Thread Dia: 11.8mm/0.46″. Terminal Blade Width: 5mm/ 0.19″. Total Size: 4 x 1.6 x 4.6cm/ 1.6″ x 0.6″ x 1.8″ (L*W*H).

Product Name: Micro Switch

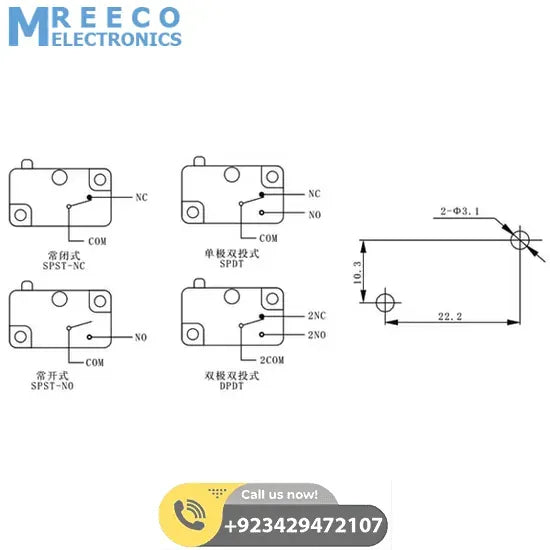

• Model No: DS-438; Actuator Type: Push Button; Power: AC 250V 6A; AC 125V 15A
• Contact configuration: SPDT; Body Size: 2.8 x 1.6 x 1.1cm/ 1.1″ x 0.6″ x 0.4″ (L*W*T)
• Material: Plastic & Metal; Color: Green, Silver Tone; Net Weight: 18g
• Package Content: 1 x Micro Switch
