Description
Model number LJ18A3-8 series
External dimensions M18x1x68
Installation type Non-shielded
Detection distance 8mm, 15mm, 20mm
Setting distance 6.4 mm
Supply voltage 6-36Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
Output current DC type: 300mA max; AC Type: 400mA
Standard detected object Mild steel (18x18x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency 500Hz
Matched mounting bracket M18 90° bending mounting bracket, M18 straight mounting bracket
Output indication Red LED
Short-circuit protection No
Reverse connection protection Yes
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
IP Rating IP65
Operating temperature -25 to 70 ℃ (13 to 158 ℉)
Cable length 1.2m, PVC cable
Material Case: Brass-nickel plated; Sensing surface: ABS

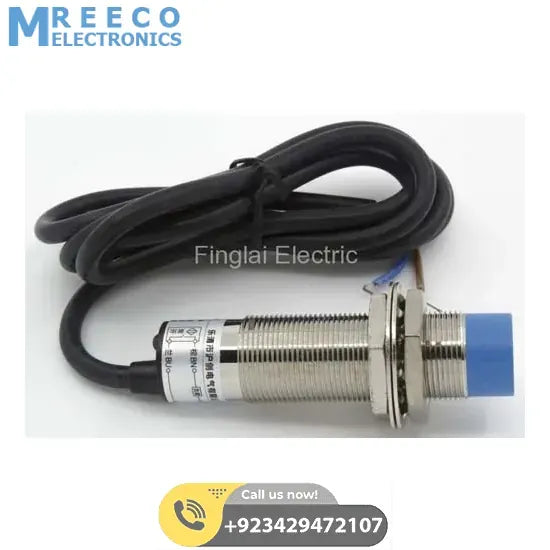

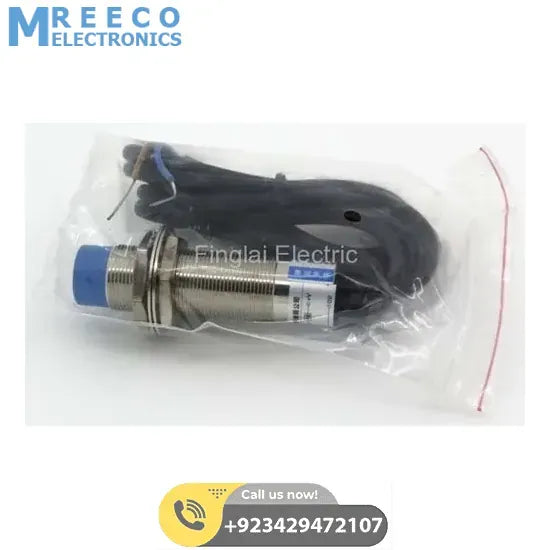

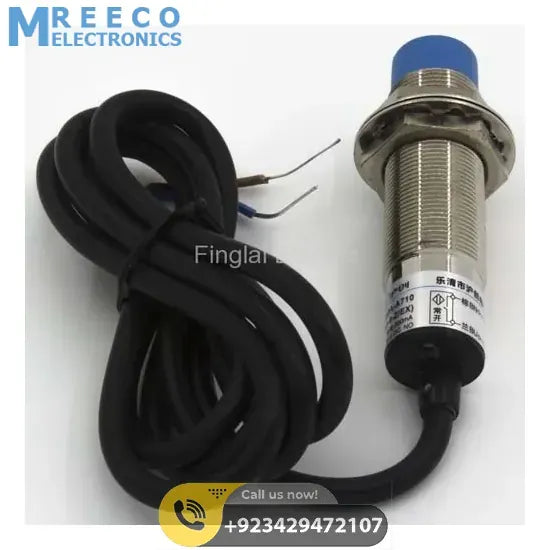

Alias name LJ18A3-8 series cylinder inductive proximity switches
