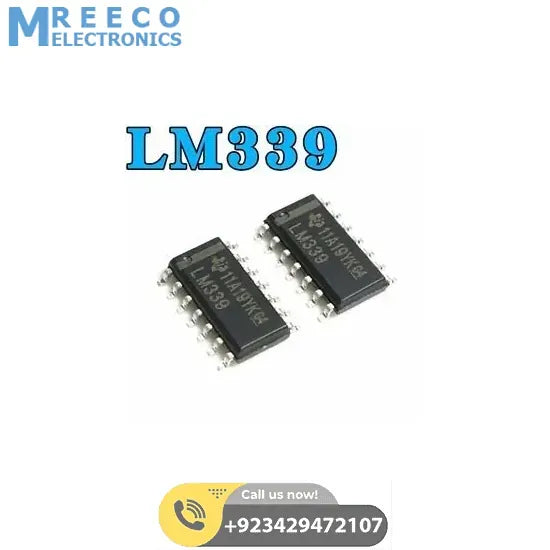

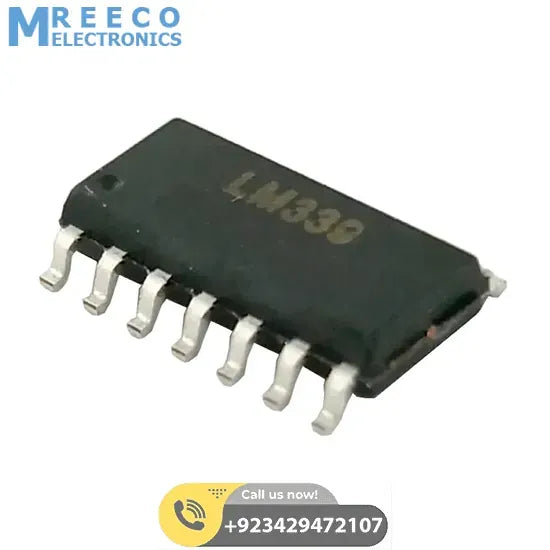

LM339 Quad Comparator SMD

These devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

Lm339 Quad Comparator SMD Features:

• Type:Differential
• Number of Elements:4
• Output Type:CMOS, MOS, Open-Collector, TTL
• Voltage - Supply, Single/Dual (±):2 V ~ 36 V, ±1 V ~ 15 V
• Voltage - Input Offset (Max):5mV @ 30V
• Current - Input Bias (Max):0.25µA @ 5V
• Current - Output (Typ):20mA
• Current - Quiescent (Max):2.5mA
• Operating Temperature:0°C ~ 70°C
• Mounting Type: Surface Mount
• Supplier Device Package:14-SOIC
• Base Part Number:LM339

Package Includes:

1 x Lm339 Quad Comparator SMD
