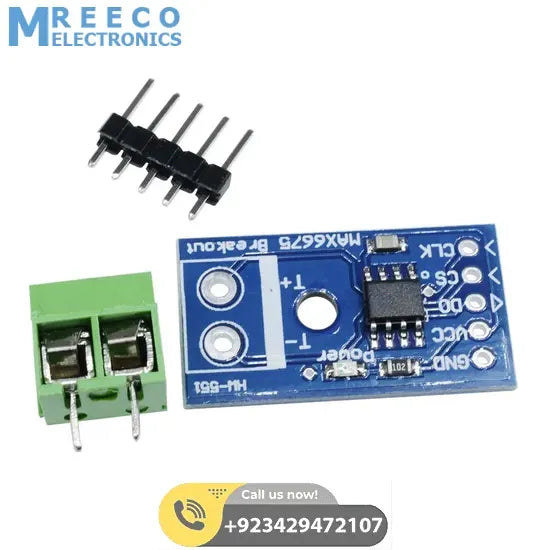

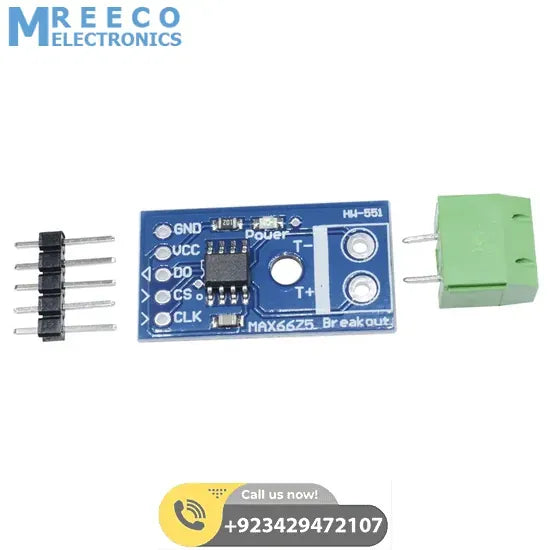

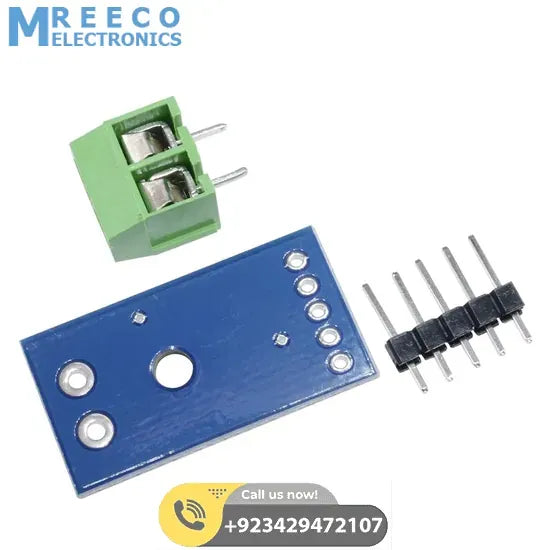

MAX6675 k Type Thermocouple Temperature Sensor Converter For Arduino SPI Interface Module HW551

• MAX6675 module is a 12-bit resolution serial thermocouple analog-to-digital converter, internal integrated cold junction compensation circuit, linearity correction, and thermocouple break detection.
• Simple SPI serial port temperature value output , its temperature resolution capability is 0. 25 Degree, cold junction compensation range -20℃～ 85℃, wide operating voltage range DC3~5V.
• Combining the module and the IO port of the MCU via Dupont cables, the temperature value of the K-type thermocouple can be directly read using the SPI protocol.
• Module interface: GND VCC SCK CS SO; Set screw M6

MAX6675 K Type Thermocouple Temperature Sensor Features:

• Simple SPI serial port temperature value output
• On-chip cold junction compensation
• High impedance differential input
• Thermocouple disconnection detection
• With a fixed mounting holes for easy fixed installation, set screw M6
• Working voltage range is 3.0~5.5V, operating current 50mA
• The operating temperature range of -20℃~ 85℃
• The temperature measurement accuracy: ± 1.5 °C
• Module Interface: GND VCC SCK CS SO
• Supply voltage: 3~5V DC

Package Include:

• 1 x MAX6675 Module
• 1 x connector
