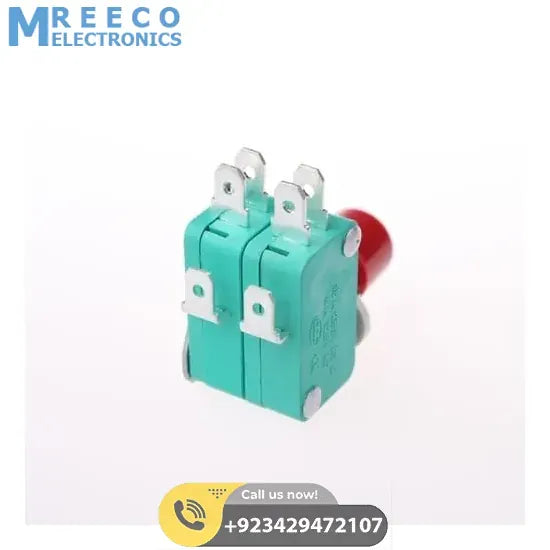

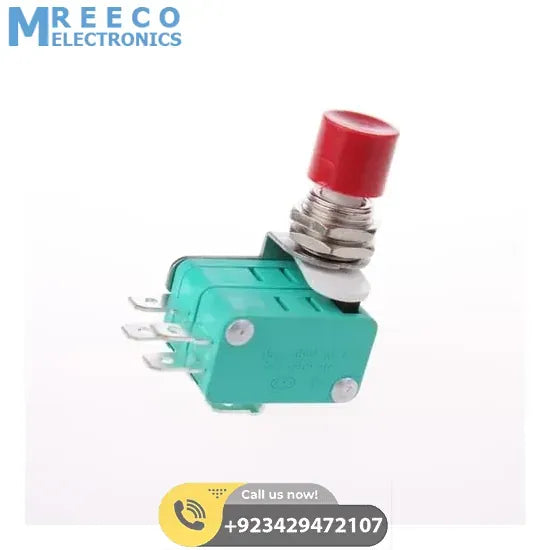

Micro Push Button Limit Switch With 2 Switches Fitting

This Micro Switch is with the push button actuator, applicable to the ac and dc control circuit. Accurate mechanism design of Limit Switch is provided Acute operation and long life. Limit control Switch is widely used in appliances, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc.

Features Of Micro Switch Push Button DS438:

• Adopt thermosetting plastic or thermoplastic
• Offers long service and operations life.
• Small contact gap, snap action, high sensitivity, and small operating travel
• Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc...

Specifications Of Push Button Actuator 2NO 2NC Double Connect Micro Limit Switch:

1. Model No. : DS438~448
2. Actuator Type: Push Button
3. Power:
• AC 250V 15A
• AC125V 15A
• DC250V 0.3A
• DC125V 0.6A
4. Contact Type: 2NO 2NC
5. Body Size: 2.8 x 1.9 x 1.6cm/ 1.1" x 0.75" x 0.63" (L*W*T)
6. Thread Dia : 11.7mm/0.46"
7. Terminal Blade Width : 4.8mm/ 0.188"
8. Total Size : 4.4 x 3.7 x 2cm/ 1.73" x1.45" x 0.8" (L*W*H)
9. Material : Plastic & Metal

Package Include:

• 1 x limit switch with 2 switches fitting
