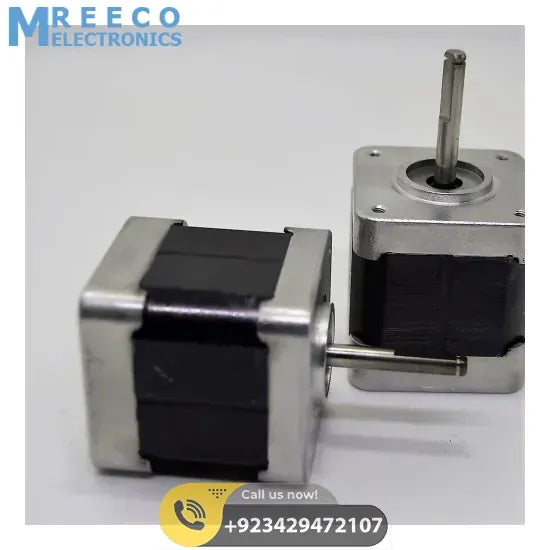

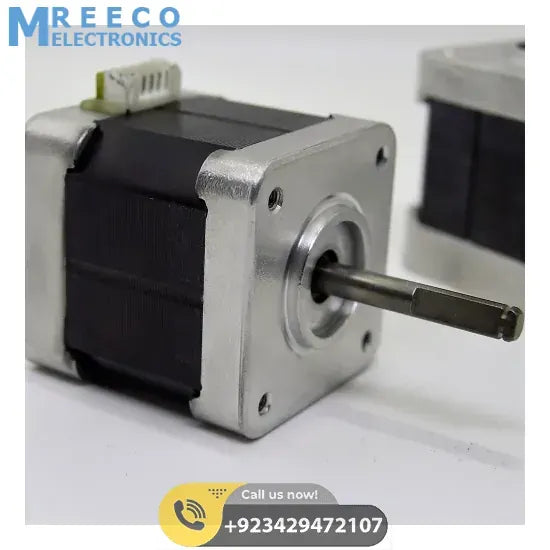

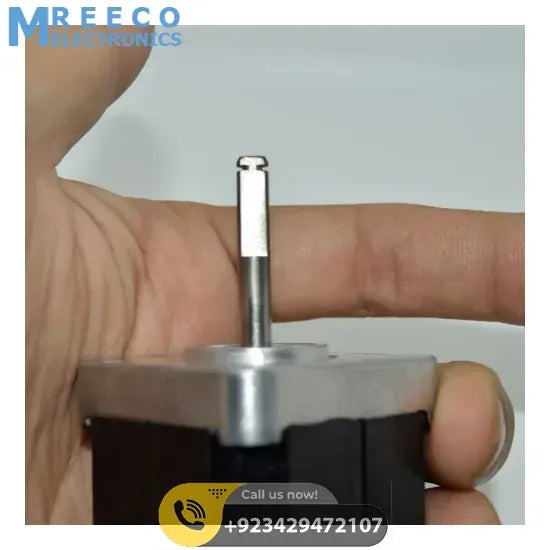

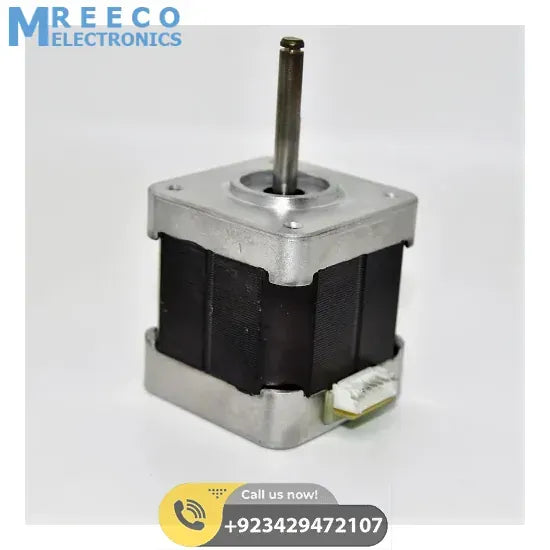

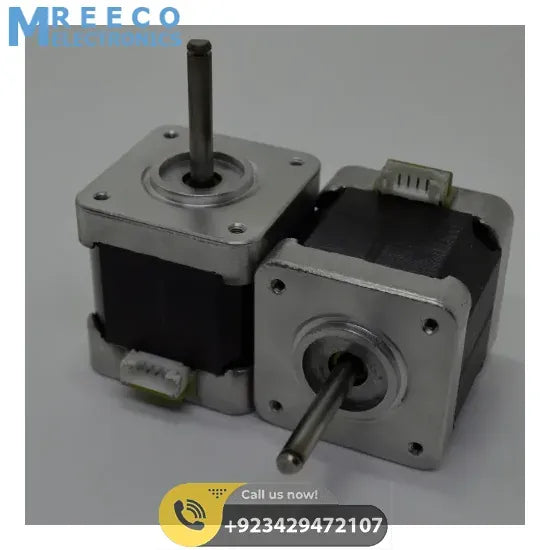

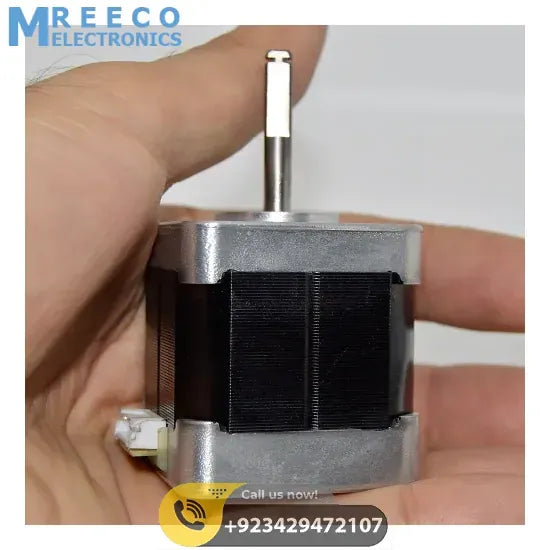

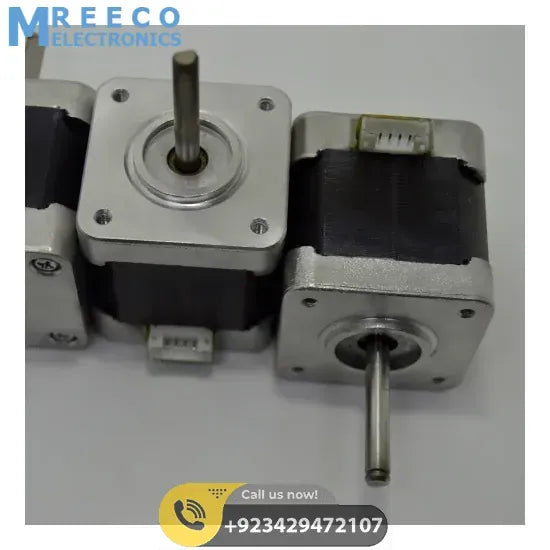

Minebea Japan d Cut Shaft NEMA 17 Stepper Motor For 3d Printer CNC in Paksitan

This D Cut Shaft Nema 17 Stepper Motor For 3D Printer & CNC is a standard sized stepper motor. Nema17 used in many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters, etc. Nema17 4 wire Bipolar Stepper Motor is High precision 4–wire bipolar stepper motor, size in Nema 17, 1.8 deg. step angle (200 … It is one of the most parameters for the stepper motor. You can use A4988 or drv8825 driver to run this motor.

Features Of D Cut Shaft Nema 17 Stepper Motor For 3D Printer & CNC:

• The Stepper motor is known by its property to convert a train of input pulses into a precisely defined increment in the shaft position.
• This is a high-quality motor that can be used for a long time without stuck.
• It has a quite stable performance during work and will not lose a step.
• Low noise and big torque, this is a great choice if you need a stepper motor.
• Stepper motor can be widely used for a 3D printer, CNC engraving machine, etc.

Specifications Of D Cut Shaft Nema 17 Stepper Motor For 3D Printer & CNC.

1. Shaft Dia= 5mm
2. Step Angle: 1.8°
3. Phase Current: 1A
4. Phase Resistance: 5.6Ohm
5. Phase Inductance: 2.8mH
6. Holding Torque: 35N.cm
7. Braking Torque: 2N.cm
8. Rotor Inertia: 54g.cm⊃2;
9. Max. Temperature Rise: 80℃ (rated current, 2 phase on)
10. Operating Temperature: -20℃~+70℃
11. Insulation Resistance: 100 MΩ Min. , 500VDC
12. Radial Clearance: 0.02Max. (450g-Load)
13. Axial Clearance: 0.08Max. (450g-Load)
14. Max. Radial Pressure: 70N (20mm from the flange)
15. Max. Axial Pressure: 15N

Package Includes:

• 1X Dual Shaft Stepper motor with its wire.
