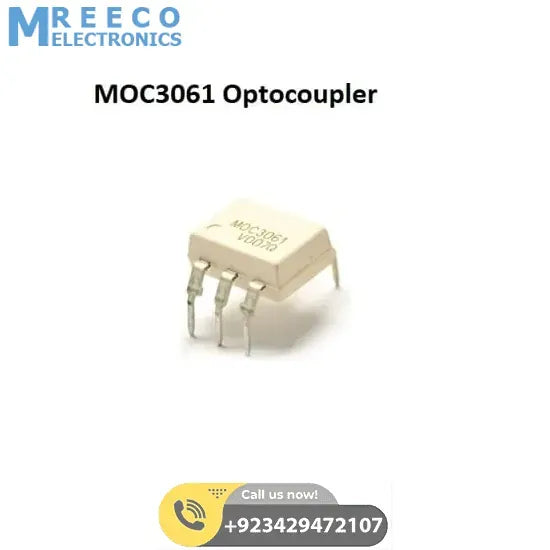

MOC3061 Zero Cross Phototriac Driver Optocoupler IC DIP6

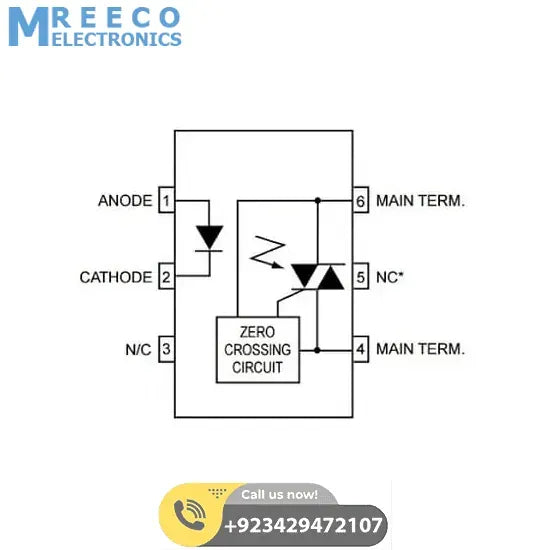

The MOC3061 device consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids, and consumer appliances, etc.

Features And Specifications of MOC3061 Controllable Optocoupler:

• Simplifies logic control of 115/240 VAC power
• Zero voltage crossing
• dv/dt of 1000 V/µs guaranteed
• 600 V/µs guaranteed
• VDE recognized
• Input Forward Voltage: Vf : 1.3V

MOC3061 Datasheet

Applications:

• Solenoid/valve controls
• Static power switches
• Temperature controls
• AC motor starters
• Lighting controls
• AC motor drives
• E.M. contactors
• Solid-state relays

Package Include:

• 1x MOC3061 Optocoupler IC
