Monster Moto Shield VNH2SP30 Motor Driver in Pakistan

Monster Moto Shield VNH2SP30 Motor Driver 14A is essentially a ramped-up version of our Ardumoto motor driver shield. For this Monster Moto Shield, we’ve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note:

When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.

Features:

1. Capable to drive two DC motors or one stepper motor
2. Continuous current capacity 14 A
3. Peak Current capacity 30 A
4. Thermal Shutdown pin configured to provide output to Arduino Analog Pin
5. Maximum Voltage is 16V
6. The maximum PWM frequency is 30 kHz. For most of our Hi-Torque DC motors 12 V, 10 khz PWM is recommended

Package Includes:

• 1 x VNH2SP30 Based 15A(Peak 30A) DC Motor Driver Monster Moto Shield

Package Includes:

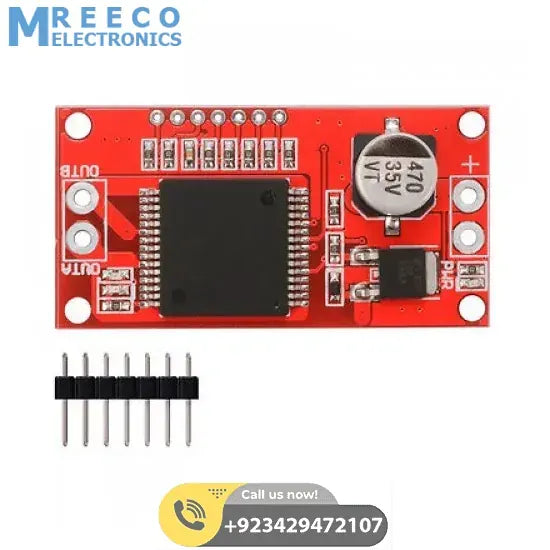

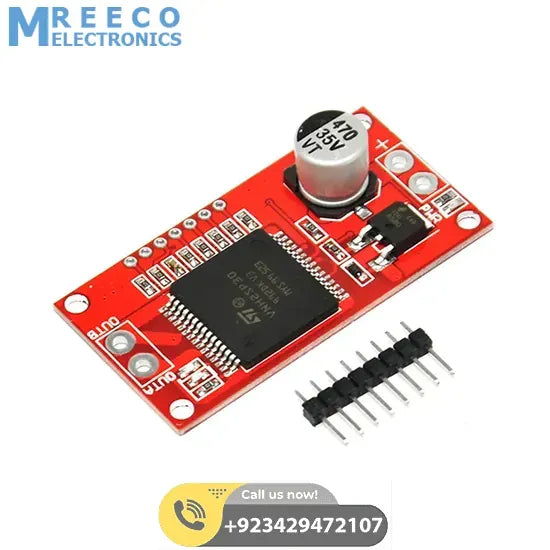

1 x Monster Moto Shield VNH2SP30 Motor Driver 14A Module

1 x Row of 7 pins
