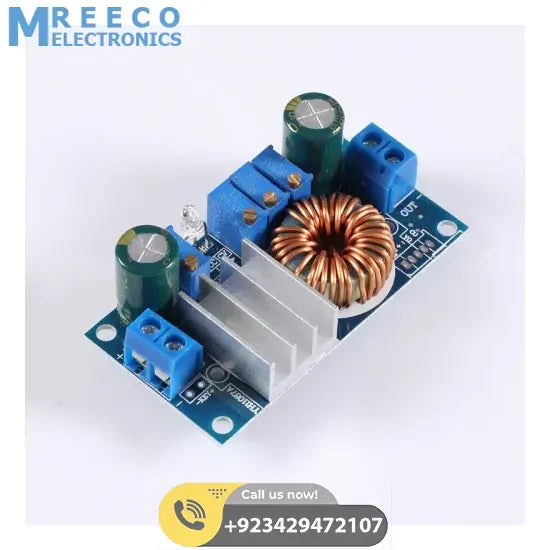

MPPT Solar Controller Solar Panel Board 5A DC-DC Buck Step-down Charging Module Constant Current Voltage Module

MPPT Solar Controller Solar Panel Board 5A DC-DC Buck Step-down Charging Module Constant Current Voltage Module

DC-DC Voltage Regulator Buck Converter 6-36V to 1.25-32V 5A Constant Current Voltage Step Down Module MPPT Solar Controller for Charging Battery Car Power Supply

Description:

1. Module Name: 5A step down constant voltage constant current MPPT 2. Module Properties: Non-isolated buck module (BUCK) 3. Input voltage: 6-36V 4. Output voltage: 1.25-32V continuously adjustable (the default output 5V) MPPT voltage setting range: 6-36V 5. Output current range: 0.05-5A (The default output current is 3A) 6. Turn lights output range: 0.01-5A (default turn lamp current 0.3A) the current range will be a little difference because the parts parameter error. 7. Display: none 8. Operating temperature: -40 ~ + 85 degree 9. Operating frequency: 180KHz 10. Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related) 11. Short circuit protection: Yes 12. Over temperature protection: (automatically shut off the output after overtemperature) 13. Input reverse polarity protection: None, (if necessary, please add the string into the diode) 14. Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it will burn the module! 15. Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection. 16. Installation: 4 pcs 3mm screws 17. Connection: IN is the input, OUT is output 18. Module dimensions:60 x 31 x 22 mm(without meter)

Note: Detection module, please do not direct connect the output of negative electrode and the input of negative electrode.

Applications: 1. DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load. 2. It can power supply for electronic devices. 3. For a variety of battery charge, can observe the state of charge. 4. charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery. 5. it can support high-power LED. 6. As a car power supply , it can for your cell phone or digital products supply.
