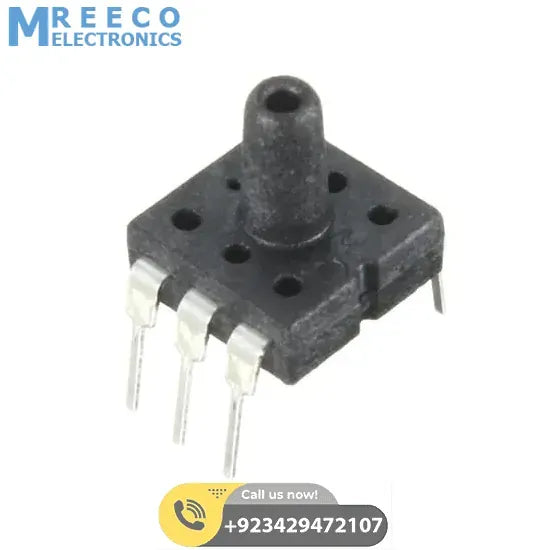

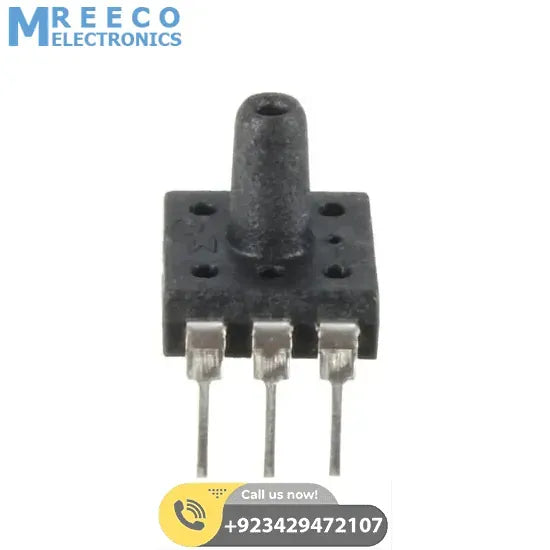

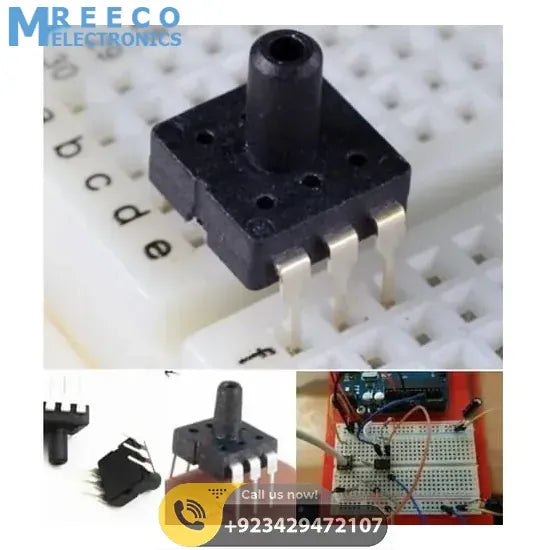

MPS20N0040D-D Dip-6 Sphygmomanometer Pressure Sensor For Arduino

This 6 DIP air pressure sensor is suitable for biomedical, meteorology, and other fields. The core part is a pressure sensor chip which is made by the MEMS pressure technology. 6DIP sphygmomanometer is with a wide applicable temperature range. This pressure sensor DIP-6 For Arduino easy to use and install.

Features Of Sphygmomanometer Pressure Sensor 0-40kPa DIP-6 For Arduino:

• Solid, MEMS technology, high reliability
• Low cost
• Wide monitoring and control media
• The application of a wide temperature range
• Easy to use, easy to install in OEM equipment
• Automotive: tire pressure, car air pump, MAP sensor, diagnostic equipment, automotive sensors.
• Industry: Air brake switch, portable pressure gauges, such as digital pressure gauge, environmental monitoring, consumer and sports
• Health care: patient monitoring and diagnostic equipment, such as blood pressure monitors, medical instrumentation, and monitoring
• Range: 40kpa (differential pressure)
• Output: mV signal
• Supply Voltage: 5VDC or constant current 1Ma
• Linear accuracy: 0.25% FS

Specifications Of Best Sphygmomanometer Pressure Sensor MPS20N0040D-D 6 DIP:

1. Pressure range: 0-5 .8 psi (40kpa)
2. Max pressure capacity of three times the measuring range
3. Working supply: 5 VDC,
4. The input impedance: 4 - 6 KO
5. The output impedance: 4 - 6 KO
6. Operating temperature: -40 - 85 ° C -40 ° F - +185 ° F
7. Storage Temperature: -40 - 125 ° C -40 ° the F - +257 ° F
8. Accessible media, clean, dry, non-corrosive gases
9. Bias voltage: ± 25 mV
10. Full-scale output voltage: 50 - 100 mV
11. Bridge Resistance: 4 - 6 KO
12. Linearity: ± 0.3% F.S.
13. Hysteresis: ± 0.7% F.S.
14. Bias Temperature coefficient: ± 0.08% of F.S. / °c

Package Includes:

• 1 x MPS20N0040D-D Dip-6 Sphygmomanometer Pressure Sensor
