Description

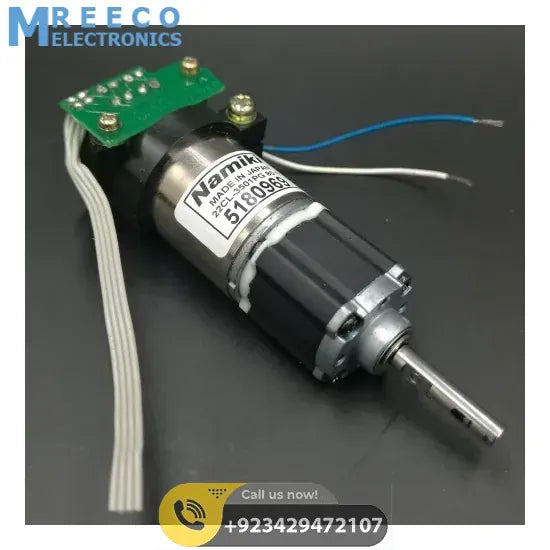

Type: 22CL-3501PG
- Stall Torque: 1.6Nm (16Kg · cm)
- Continuous torque: 0.5Nm (5Kg · cm)
- Voltage: 12VDCDiameter: 22mm
- Shaft length: 19mm (with a 90-degree double incision)
- Shaft diameter: 4mm
- Length: 67mm (not including encoders, gearbox output shaft)
- Stall Current: 1.8A
- Reduction ratio: 80: 1 (metal planetary reducer)
- Output speed: 120 r / min (input voltage DC 12V)
- Encoder: 2 pulses per revolution
- Can be used for smart car, robot, robot tracking
