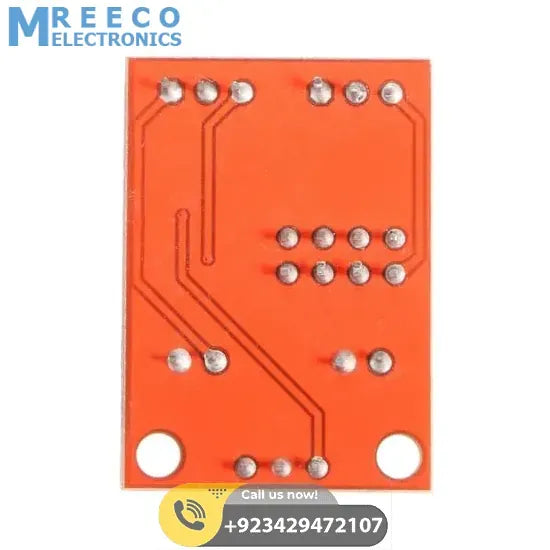

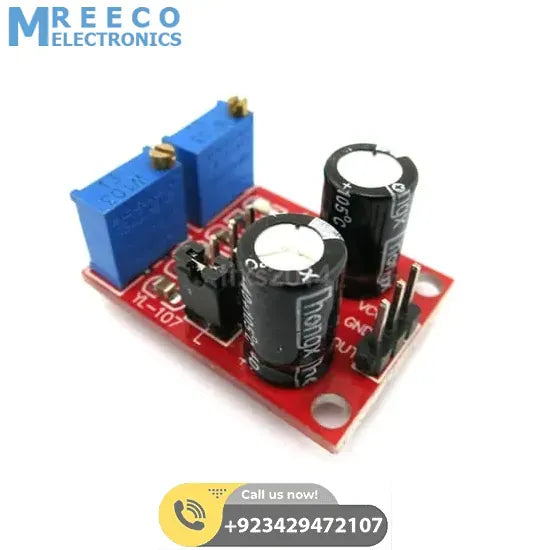

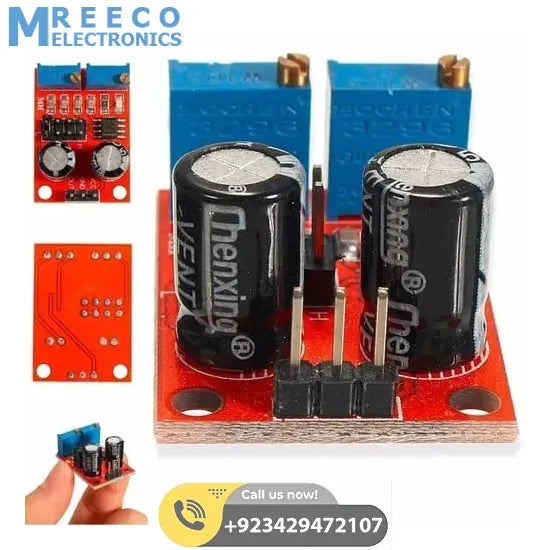

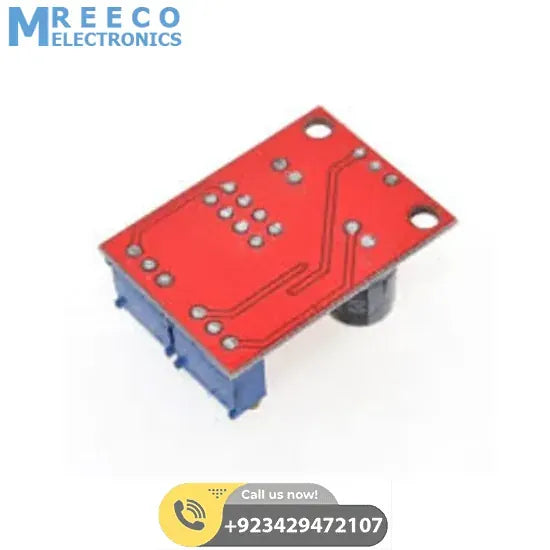

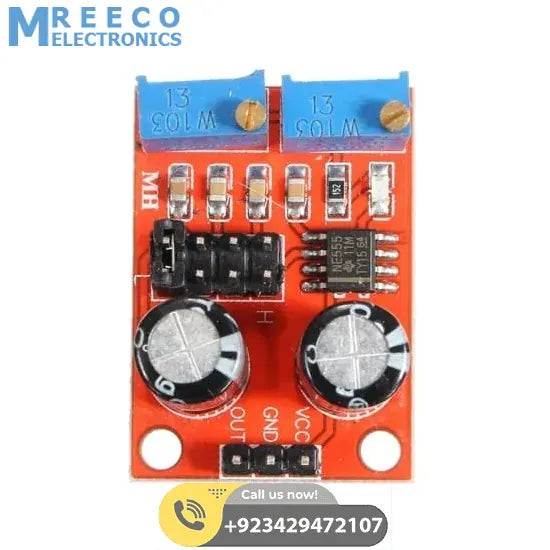

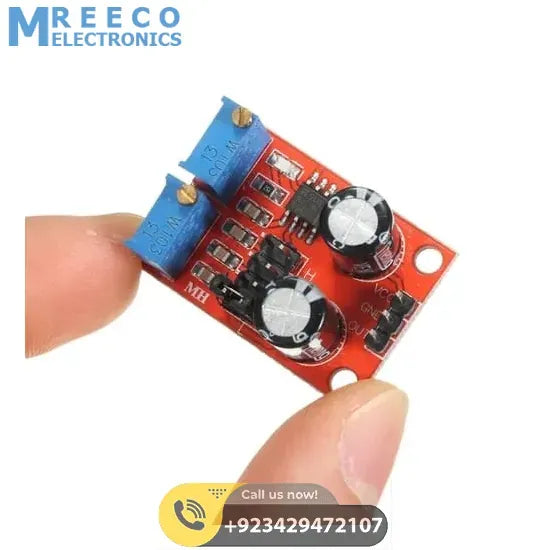

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator is 5 V square wave signal generator. Wave Signal Generator generates a square wave signal used for experimental development. Also, use to drive a stepper motor for generating a square wave drive signal. The output duty cycle can fine-tune. Duty cycle and frequency is not separately adjustable, adjusting the duty cycle will change the frequency.

Features of NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator:

1. As a square wave signal generator generates a square wave signal used for experimental development.
2. Used to drive a stepper motor for generating a square wave drive signal.
3. Generate an adjustable pulse for MCU.
4. Generate adjustable pulse, to control circuitry associated.
5. Size:?31mm x 22mm

Specifications of NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator:

1. Main chip: NE555
2. Input Voltage: 5V-15V DC. when the power supply is 5 V, the output current can be 15 MA around; when 12V power supply, the output current can 35 MA around
3. Input current: >=100 MA
4. Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
5. Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
6. Output with LED indication(low level, LED will on; high level, LED will off; low frequency, the LED flashes)

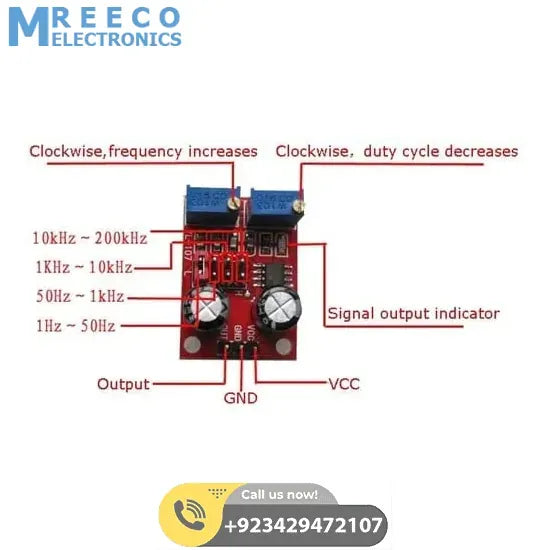

7. The output frequency range is selectable:
8. LF file: 1Hz ~ 50Hz
9. IF file: 50Hz ~ 1kHz
10. High-frequency file: 1KHz ~ 10kHz
11. HF file: 10kHz ~ 200kHz
12. The output duty cycle can fine-tune; duty cycle and frequency is not separately adjustable; adjusting the duty cycle will change the frequency

Package Includes:

1 x NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
