NEMA34 NEMA 34 6nm Torque 75mm Stepper Motor For 3d Printer & CNC in Pakistan

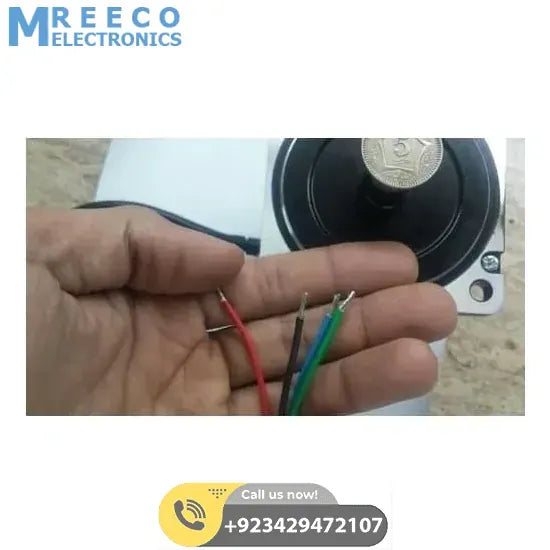

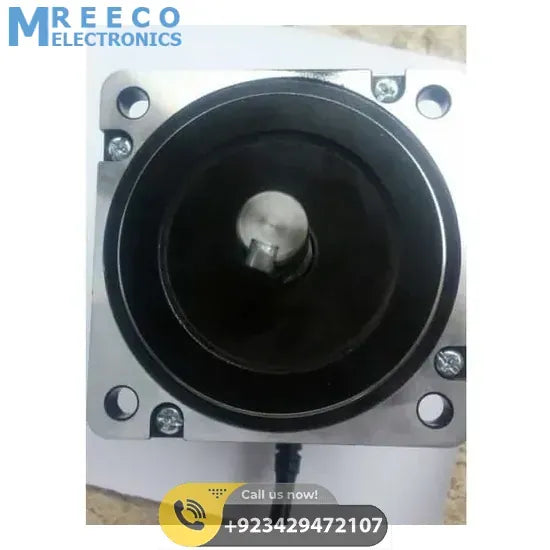

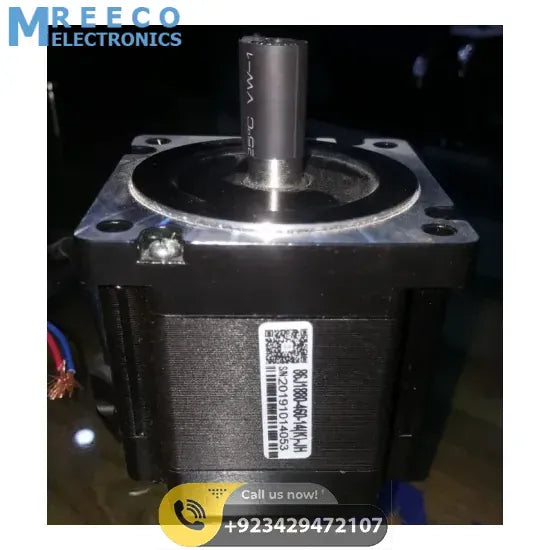

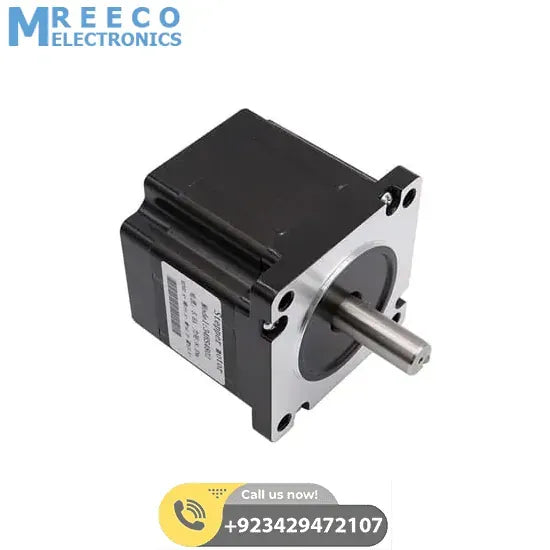

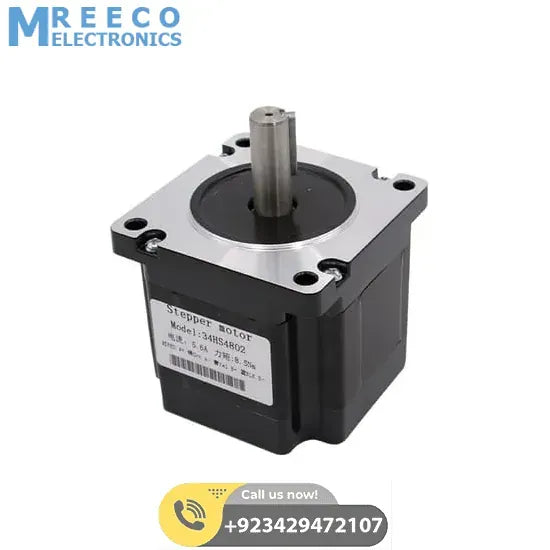

NEMA 34 75mm Stepper Motor is a high torque hybrid bipolar stepping motor with a 3.4×3.4 inch faceplate. NEMA 34 75mm Stepper Motor, Hybrid stepper has the combination of the features of the Variable Reluctance Stepper Motor and Permanent Magnet Stepper Motor. This motor has a step angle of 1.8 deg., which means that it has 200 steps per revolution and for every step, it will cover 1.8°. This NEMA 34 is a 2-Phase motor with 4 wires. Compatible controllers for this motor are CW230, CW250, and CW860.

Features of Nema 34 75mm Stepper Motor:

• High performance, low price
• Supply voltage from 35VDC
• Overvoltage, under voltage, overcorrect, phase short circuit protection
• Offline command input terminal
• Motor torque is related to speed, but not related to step/revolution
• High start speed
• High holding torque under high speed

Specifications of Nema 34 75mm Stepper Motor:

1. Body Length: 75mm
2. Shaft Length: 30mm
3. Shaft Size: 10mm
4. Ampere: 6amp
5. Step Angle Accuracy: ±5%
6. Resistance Accuracy: ±10%
7. Inductance Accuracy: ±20%
8. Temperature Rise: 80℃ Max
9. Ambient Temperature: -20℃～+50℃
10. Insulation Resistance: 100MΩMin.500VDC
11. Dielectric Strength: 500VAC for one minute
12. Shaft Radial Play: 0.02Max.(450g-Load)
13. Shaft Axial Play: 0.08Max.(450g-Load)

Applications:

1. CNC mills & milling machines.
2. CNC lathes.
3. Pick-n-place machines.
4. Laser Engravers and Laser sCutters.
5. Vinyl Sign Cutters.
6. CNC Plasma Cutters.
7. CNC Foam Cutters.

Package Includes:

• 1 x Nema 34 75mm Stepper Motor
