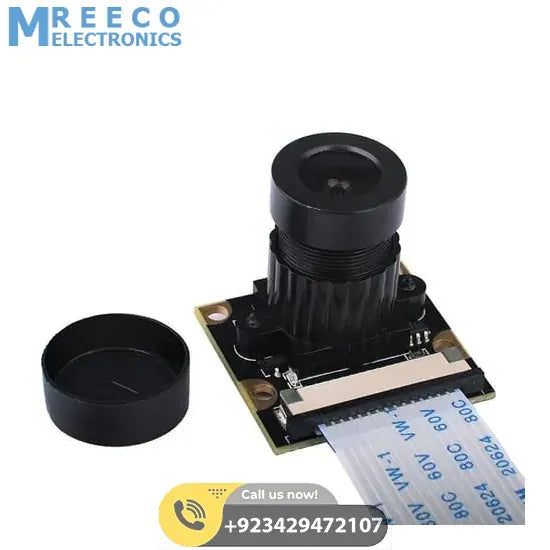

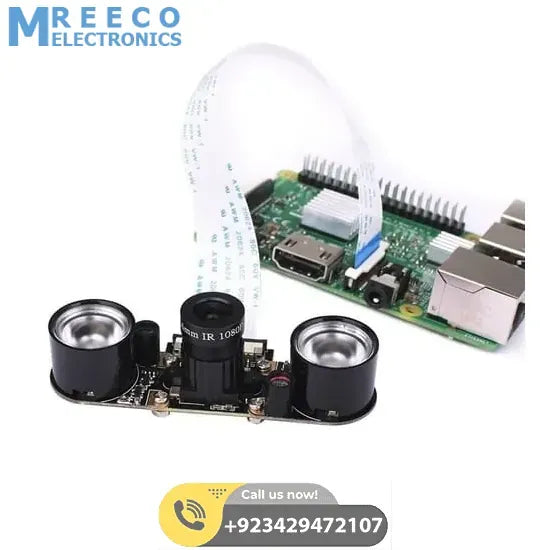

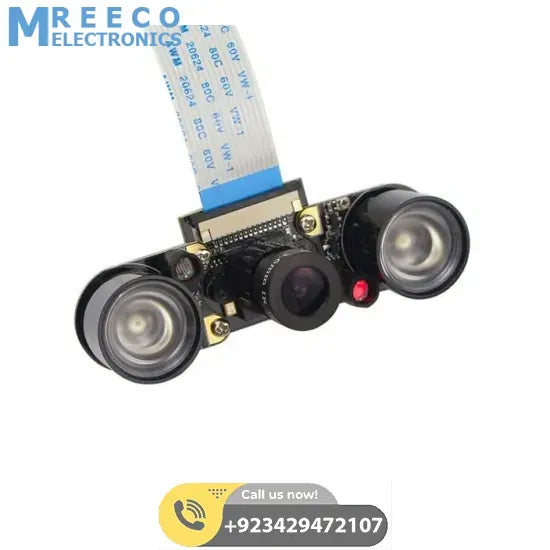

Night Vision 5MP Camera Module For Raspberry Pi With 2 IR LEDS

RPI NOIR camera board is suitable for shooting an infrared picture or shooting in low light conditions. Raspberry Night Vision Camera can be connected directly to the Raspberry Pi’s CSI connector. The latest v1.3 can provide high-resolution 5MP resolution images, or 30fps, 1080p HD video. The noir camera night vision was designed by British Raspberry Pi Foundation and manufactured panel with a 5MP (2592 × 1944 pixels) OmniVision 5647 fixed-focus sensor module which serial interface (CSI) through a dedicated 15-pin MIPI camera and 15-pin ribbon cable to connect to the Raspberry Pi. CSI bus can be extremely high data transfer rates, and specifically for transferring pixel data to the BCM2835 processor.

Features Of Raspberry Pi Infrared Night Vision Camera With 2 IR LED'S:

• Raspberry Pi Camera Module, adjustable-focus Raspberry PI infrared night vision camera 500W+ photographic lamp light
• Raspberry Pi Night Vision Camera, supports all revisions of the Pi
• 5-megapixel OV5647 sensor
• No IR filter for low light conditions
• Fully compatible with A and B Raspberry Pi Raspberry Pi
• 1.4μm X 1.4μm pixel technology available to very high performance and OmniBSI
• The optical dimensions of 1/4 inch
• Automatic image control functions
• Programmable frame rate control
• 32bytes embedded single-times programmable (OTP) memory
• Digital video port (DVP) parallel output interface

Specifications Of Night vision camera module for Raspberry Pi:

1. Lens: 1/4 5M
2. Aperture (F): 2.9
3. Focal Length: 3.29MM
4. Diagonal: 72.4 degree
5. Sensor best resolution: 1080p (2592×1944 pixels)
6. Dimension: 25mm x 24mm x 6mm
7. 4 screw holes
8. Used for both attachment and 3.3V power supply
9. Supports up to 2 3W high-power 850 infrared LED and/or fill flash

Warning:

• The LEDs intensity is limited by the Raspberry Pi power supply, please ensure you have an adequate Raspberry Pi power supply installed. LEDs running at full intensity can get hot, please take care during prolonged use.

Package includes:

• 1x Raspberry Pi Camera Board
• 2x Infrared LED Board
• 1x 15-Pin FFC CSI Cable
