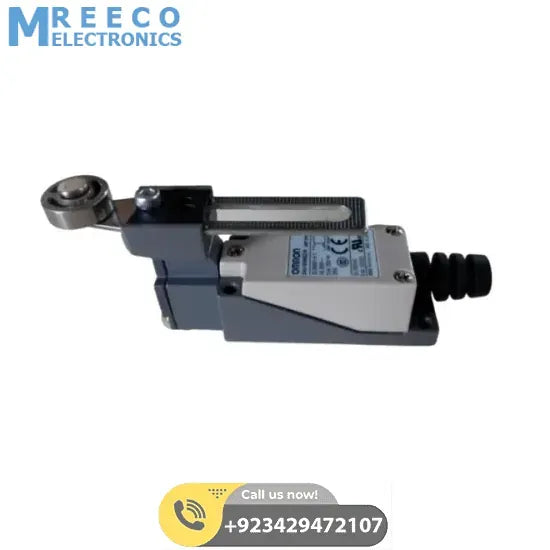

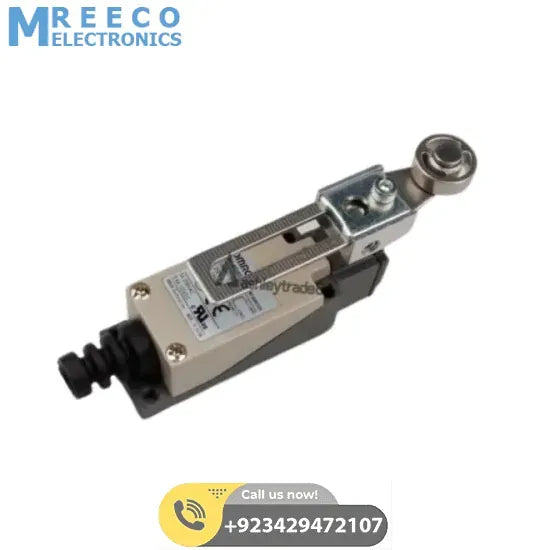

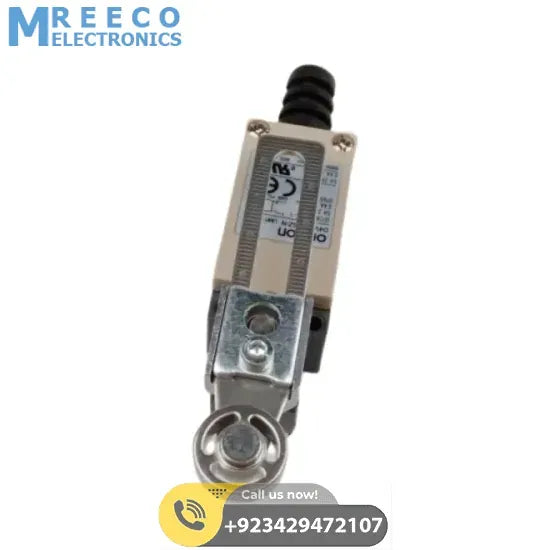

OMRON Roller Lever Limit Switch D4V-8108SZ

OMRON Limit Switch D4V-8108SZ is easy to use electromechanical limit switches offer special qualities. This roller limit switch is used for purpose-built detection devices with characteristics such as presence/absence, positioning and travel limit, objects passing and counting. This precision limit switch is made from high-quality material whitch offering double insulation and protection of IP65.

Features Of Best High-Quality Omron Limit Switch D4V8108SZ:

• Limit switch, compact design, long mechanical life.
• Easy wiring with full open terminals.
• High precision, high reliability
• Dustproof, waterproof, oil-proof construction (IP65).
• Double circuit type.
• 5A load current.
• Strong body with a combination of reinforced plastic and aluminium Die Casting components.
• Build-in basic switch with the double spring mechanism.

Specifications Of OMRON Small Limit Switch D4V 8108SZ:

1. Actuator Type: Roller Lever
2. Pole and Throw Configuration: DPST
3. Normal State Configuration: NO/NC
4. IP Rating: IP65
5. Maximum Current: 5 A ac, 400 mA dc
6. Maximum AC Voltage: 250V
7. Maximum DC Voltage: 250V
8. Connection Type: Screw
9. Terminal Type: Screw
10. Length: 82.3mm
11. Width: 27.8mm
12. Minimum Operating Temperature: -20C
13. Maximum Operating Temperature: 60C
14. Mechanical Life Minimum: 10000000 Operations
15. Dimensions: 82.3 x 27.8 x 25.4 mm
16. Depth: 25.4mm

Package Includes:

• 1 x D4V-8108SZ limit switch OMRON
