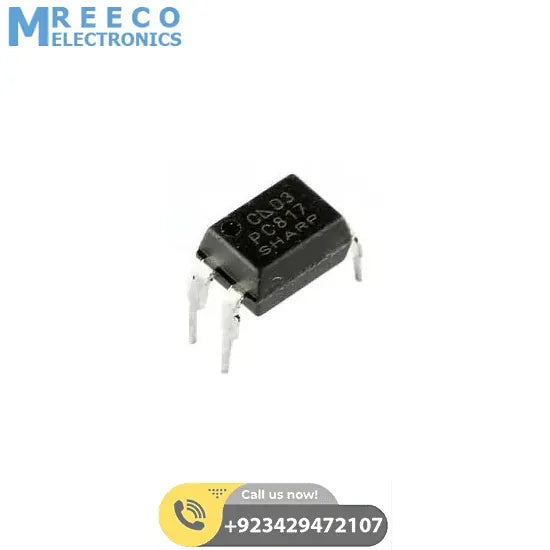

Original Sharp Pc817 Optocoupler
Currently sold out
PC817 Series contains an IRED optically coplied to a phototransistor.PC817 have package in a 4pin DIP,available in wide-lead spacing option and SMT gullwing lead-form option.input-output isolationvoltage(rms)is 5.0kV....
Ask about this product on WhatsApp- Fast deliveryFree shipping on prepaid orders above Rs. 10,000
- Secure payment100% secure payments by Meezan Bank
- SupportMonday to Saturday, 11:00 AM to 8:00 PM
- ReturnsSee our return and refund policy
Description

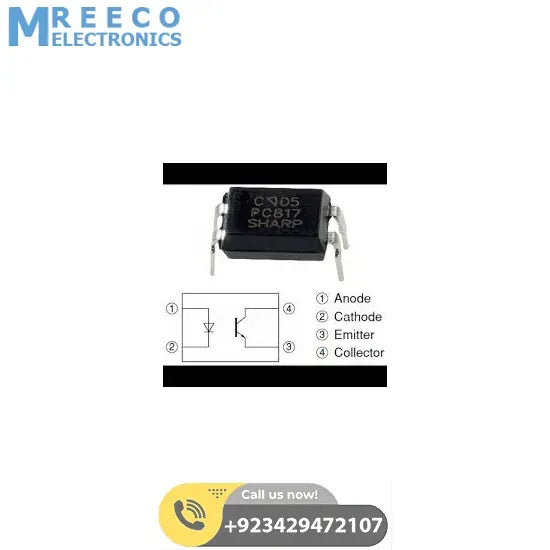

PC817 Series contains an IRED optically coplied to a phototransistor.PC817 have package in a 4pin DIP,available in wide-lead spacing option and SMT gullwing lead-form option.input-output isolationvoltage(rms)is 5.0kV.collector-emmiter voltage is 80V(*) and CTR is 50% to 600% at input current of 5mA.
Link For Datasheet : https://assets.componentsense.com/images/pdfs/1105_11_2b6b5101dbf84df6ef010e5d55e70e60.pdfPC817 Optocoupler Features and Specifications:
- Input Diode Forward Voltage: 1.25V
- Collector-Emitter Voltage: 80V (max)
- Collector Current: 50mA (max)
- Cut-off frequency: 80 kHz
- Rise Time: 18us
- Fall Time: 18us
- Available as 4-pin DIP through-hole and also as SMT package.
Applications Of PC817;
- Electrical Isolation circuits
- The microcontroller I/O switching circuits
- Signal isolation
- Noise coupling circuits
- Isolation digital from analog circuits
- Ac/DC Power control
Package Include
1 x PC817 Optocoupler ic
Specifications
| Brand | Mreeco |
|---|---|
| Category | Semiconductor Components & ICs |
| SKU | 637720688988981297 |
| Availability | Currently sold out |
