PIC16F88 16F88 Microcontroller

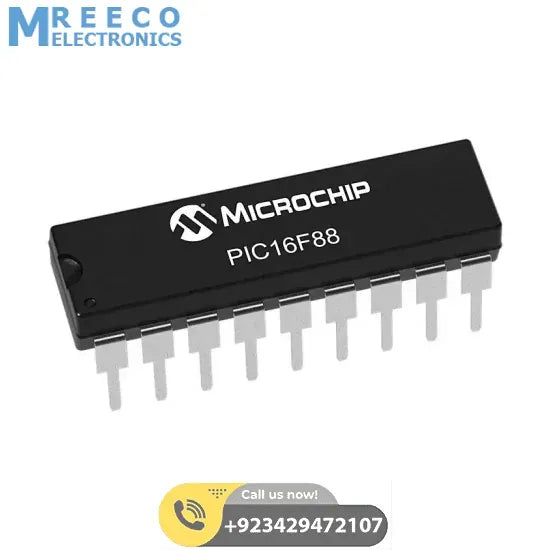

Microchip PIC 16F88 Microcontroller Chip

The PIC16F88 features 8 MHz internal oscillator, 256 bytes of EEPROM data memory, a capture/compare/PWM, an Addressable USART, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus, 7 channels of 10-bit Analog-to-Digital (A/D) converter and 2 Comparators that make it ideal for advantage analog / integrated level applications in automotive, industrial, appliances and consumer applications.

Oscillators:

• Three Crystal modes: – LP, XT, HS: up to 20 MHz
• Two External RC modes
• One External Clock mode: – ECIO: up to 20 MHz
• Internal oscillator block: – 8 user selectable frequencies: 31 kHz, 125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz, 4 MHz, 8 MHz

Peripheral Features:

• Capture, Compare, PWM (CCP) module:
• • – Capture is 16-bit, max. resolution is 12.5 ns
• – Compare is 16-bit, max. resolution is 200 ns
• – PWM max. resolution is 10-bit

Special Microcontroller Features:

• 100,000 erase/write cycles Enhanced Flash
• program memory typical
• 1,000,000 typical erase/write cycles EEPROM
• data memory typical
• EEPROM Data Retention: > 40 years
• In-Circuit Serial Programming™ (ICSP™) via two pins
• Processor read/write access to program memory
• Low-Voltage Programming
• In-Circuit Debugging via two pins
• Extended Watchdog Timer (WDT): – Programmable period from 1 ms to 268s
• Wide operating voltage range: 2.0V to 5.5V

Documents

16F88 Datasheet
