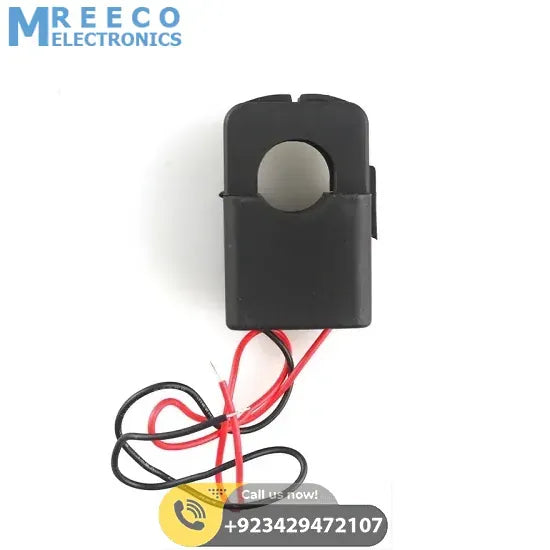

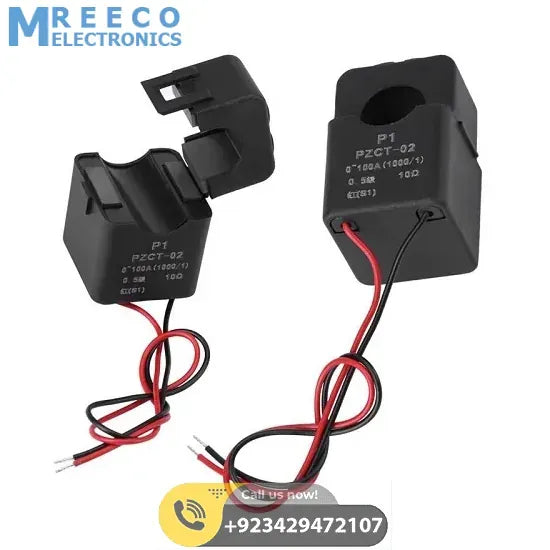

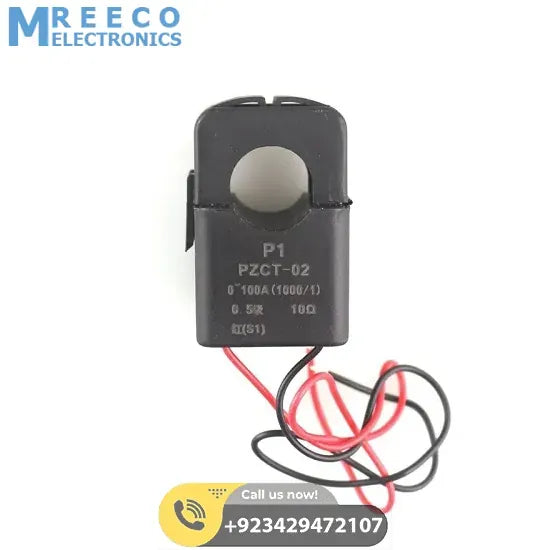

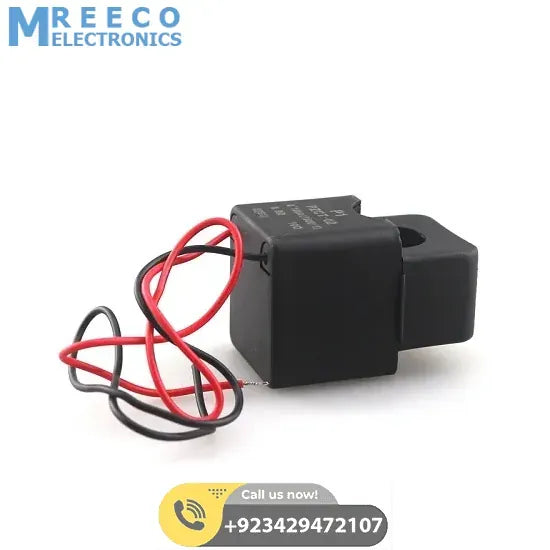

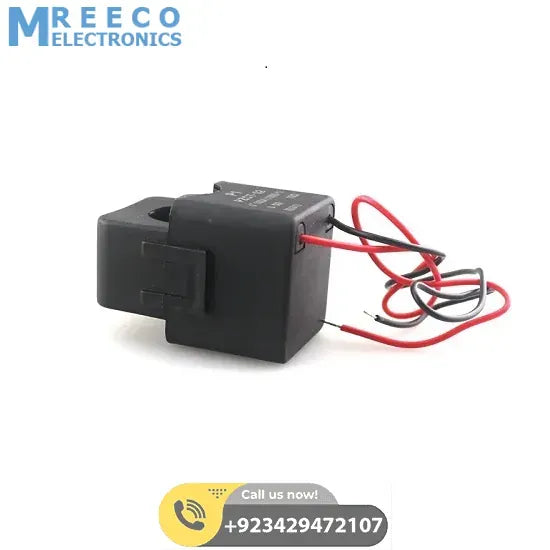

PZCT-02 Split Core Current Transformer Coil Sensor For 100A Amp Energy Meter

This current transformer

• This is a mini-split base current transformer; it's the smallest one compared to similar products (output 100MA).
The current transducer used for energy meter in special; AC 220v, 380v power supply can both be applied.

Features Of PEACEFAIR PZCT-02 Split Core Current Transformer Coil Sensor:

• This is a mini-split base current transformer; it's the smallest one compared to similar products (output 100MA).
• The diameter of the inner hole is 16mm, the accuracy is ≤0.5 grade.
• Using a snap joint structure, it can be fixed to the cable directly through nylon ties.
• Built-in input coil; small and light, easy to install.
• Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety, and reliability.

Specifications Of PZCT-02 Split Core Current Transformer For AC 220V 380V 100A Digital Ammeter Energy Meter:

1. The ambient temperature: -40 °C ~ +85 °C;
2. Relative humidity: Less than 90% when 40 °C
3. The working frequency range: 50Hz ~ 60Hz.
4. Insulation heat-resistant grade: Class B (130 °C).
5. Insulation resistance: Greater than 1000MΩ in Normal
6. The resistance: 42Ω

Package Includes:

• 1 x PZCT-02 Split Core Current Transformer
