RC Plane Kit

Rc plane kit is now in Pakistan. Rc plane kit now includes all the parts in one package that you need to build you own rc plane.

RC Plane Kit Specificitions :

FS-I6 Transmitter With FS-IA6 Receiver:

1. Channels: 6
2. Model Type: fixed-wing / glider / helicopter/ multirotor
3. RF Range: f2.405-2.475Ghz
4. Bandwidth: 500Khz
5. Band: 142
6. RF Power: Less than 20 dBm
7. 2.4G System: AFHDS 2A and AFHDS
8. Code type: GFSK
9. Sensitivity: 1024
10. Low voltage warning: Less than 4.2V
11. DSC port: PS2; output:PPM
12. Charger port: No
13. ANT length: 26mm*2 (dual antenna)
14. Weight: 392g
15. Power: 6V 1.5AA*4
16. Display mode: Transflective STN positive type,128*64 dot matric VA73*39mm, white backlight
17. Size: 174*89*190mm
18. Online update: Yes
19. Certificate: CE0678,FCC

Servo Motor MG90S Tower Pro:

1. Weight: about 13.4g
2. Dimension: 22.8 x 12.2 x 28.5mm
3. Stall Torque: 1.8kg/cm(4.8V ),2.2kg/cm(6V)
4. Operating Speed: 0.1sec/60degree(4.8v), 0.08sec/60degree(6v)
5. Operating Voltage: 4.8-6.0V
6. Motor Type: coreless motor
7. Connector Wire Length : 175mm

TURNIGY 2800mAh Lipo Battery Pack:

1. Battery parameter:ZOP Power 11.1V 2800mAh 40C 3S
2. Capacity:2800mAH
3. Size:120mm X 35MM X 20MM
4. Weight:183g

8x6 Black EP propeller:

1. Size: 8060
2. Color : Black
3. Length: 20.3cm
4. Pitch: 6mm
5. Prop Root Thickness: 10mm
6. Compatible Motor: 1400KV
7. Usage: Suitable for RC Airplane and quadcopter

HOBBYKING HK-30A - ESC 25-30A SS SERIES:

1. Weight: 24g
2. Size: 45x25x4mm
3. Cells: 2-3S (Auto Detect)
4. Max Current: 25A
5. Burst: 30A
6. BEC: 3A

BLDC MOTOR A2212 10T 1400KV Outrunner:

1. Color: as shown in the pictures.
2. Material: durable aluminum alloy.
3. Motor dimensions: phi;27.5 x 30mm; Shaft diameter: phi;3.17mm
4. 100% brand new and high quality 1400KV Outrunner Brushless Motor.
5. Suitable for RC helicopter, airplane, quadcopter, and multi-copter.
6. VK: 2200rmp/V.
7. Max efficiency: 80%
8. Max efficiency current: 4-10A ( gt;75%)
9. Current Capacity: 12A/60s
10. No Load Current @ 10V: 0.5
11. Number of Cells: 2-3 Li-Poly

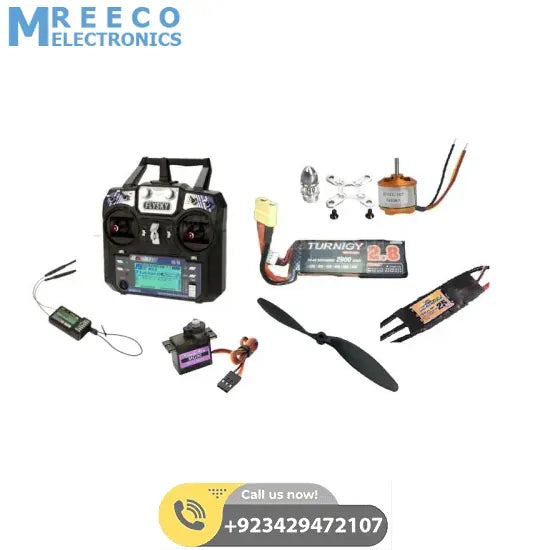

Package includes:

• FS-I6 Transmitter With FS-IA6 Receiver
• Servo Motor MG90S Tower Pro
• TURNIGY 2800mAh Lipo Battery Pack
• 8x6 Black EP propeller
• BLDC MOTOR A2212 10T 1400KV Outrunner
• HOBBYKING HK-30A - ESC 25-30A SS SERIES
