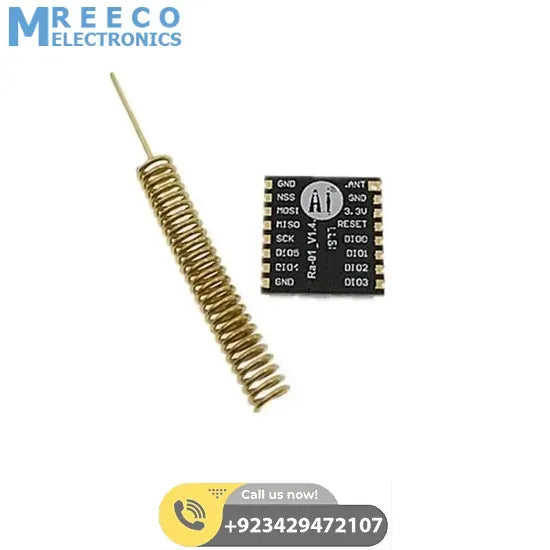

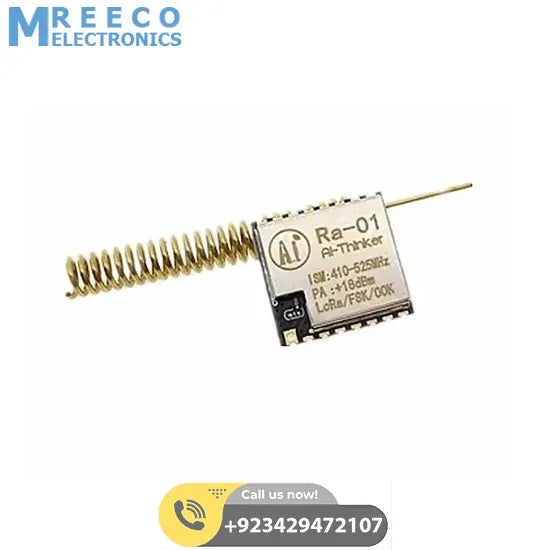

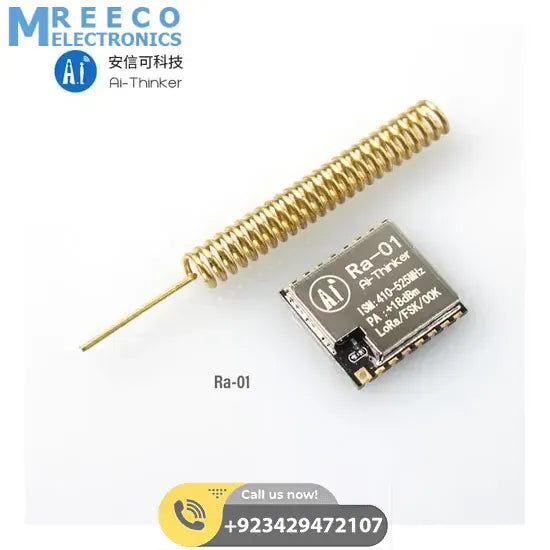

Retired Product Lora Ra-01 433MHz SX1278 Long Range Wireless Module

Features:

• LoRaTM spread spectrum communication
• +20dBm - 10mW. Stable RF output power when the input voltage changed
• Half-duplex SPI communication
• The programmable bit rate can reach to 300kbps
• Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK Modulation Mode
• 127dB RSSI wave range.
• Automatically detect RF signal, CAD model, and super high-speed AFC
• With CRC 256 bytes data engine
• Half hole (castellated hole) SMD package
• With metal shielding case
• Spring antenna

Specifications:

1. Wireless Standard: 433MHz
2. Frequency range: 420 - 450MHz
3. Port: SPI/GPIO
4. Operating Voltage: 1.8 - 3.7V, default 3.3V
5. Working Current, Receive: less than 10.8mA (LnaBoost closed, Band 1)
6. Transmit less than 120mA (+20dBm),
7. Sleep model: 0.2uA
8. Working temperature: -40- +85 degrees
9. Pin pitch: 2.0 mm

Package Includes:

• 1 x 433Mhz SX1278 Long Range Wireless Module
