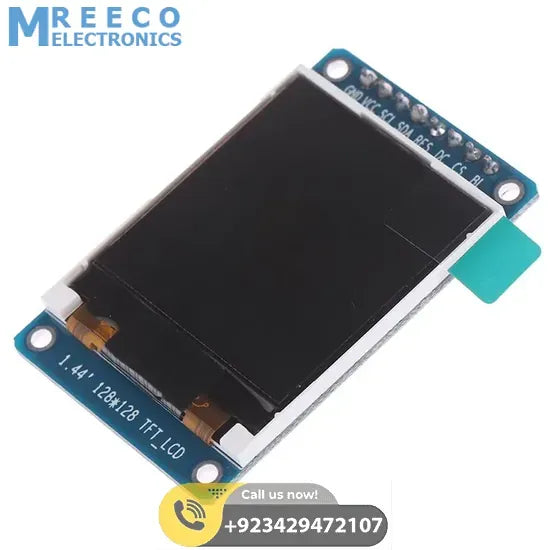

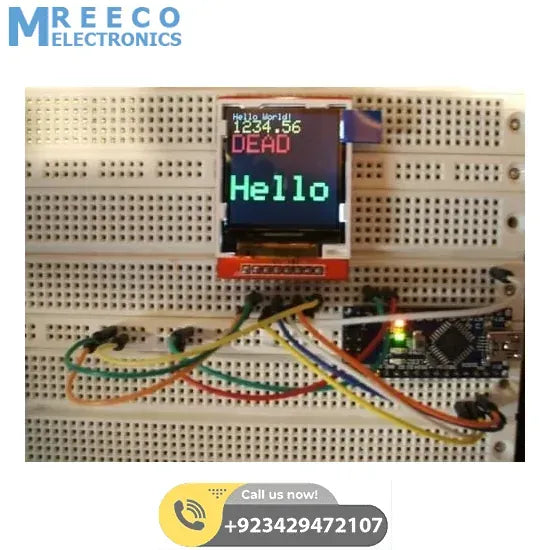

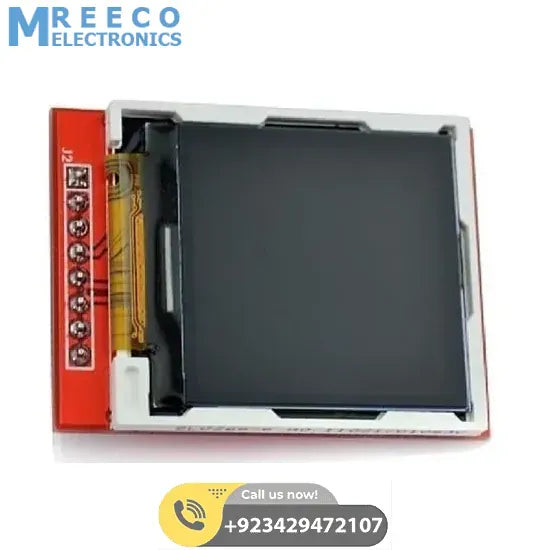

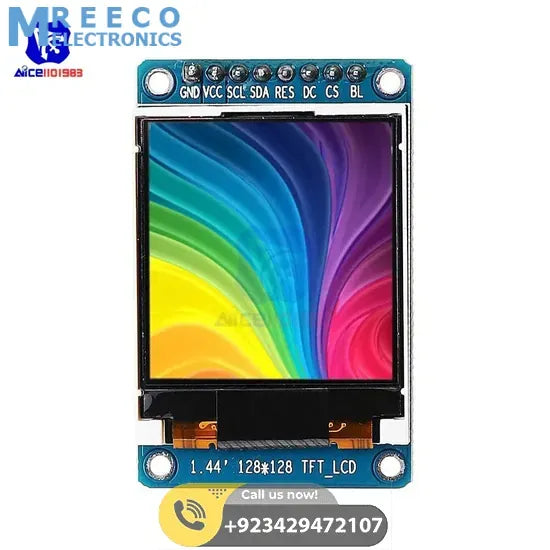

ST7735S 1.44 Inch 128x128 SPI TFT Color Screen LCD Display

This 1.44 inch SPI TFT Color Screen LCD Display has 128 x 128 resolution and 262 colours. This Color Screen LCD Display uses SPI interface to communicate with the controller such as Arduino, it is the best upgrading of the Nokia5110. Unlike the low cost NOKIA6110 and similar LCD displays, which are CSTN type and thus have poor colour and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display a full 16-bit colour using our library code. The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. We also had a little space so we placed a microSD card holder so you can easily load full colour bitmaps from a FAT16/FAT32 formatted microSD card.

Note: This LCD Screen is not Touch-Screen

Features of 1.44 inch 128x128 SPI TFT Color Screen LCD Display:

2. TFT colour screen, the effect is far better than other small CSTN screen
4. Fully compatible and alternative 5110 interface
5. Onboard LDO, support 5V/3.3V input voltage

Specifications of 1.44 inch 128x128 SPI TFT Color Screen LCD Display:

1. Size: 1.44 inch
2. Interface: SPI
3. Resolution: 128*128 pixel
4. Visual area: 1:1 square
2. TFT colour screen, the effect is far better than other small CSTN screen
3. Drive IC: ILI9163
5. Fully compatible and alternative 5110 interface
6. Onboard LDO, support 5V/3.3V input voltage
, the LED backlight, 3.3V input

Package Includes :

• 1 x 1.44 inch TFT LCD Color Screen Module
