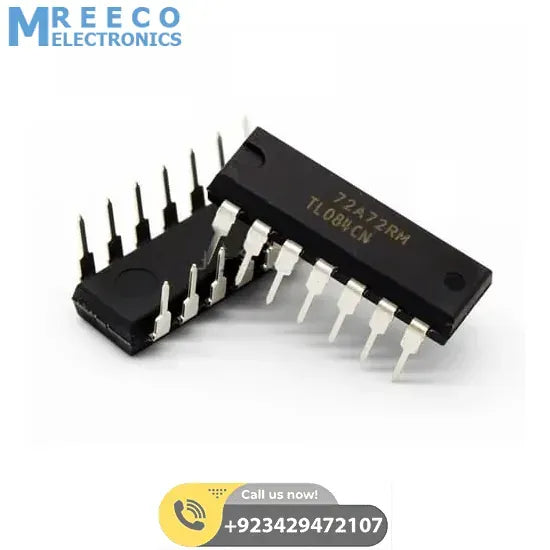

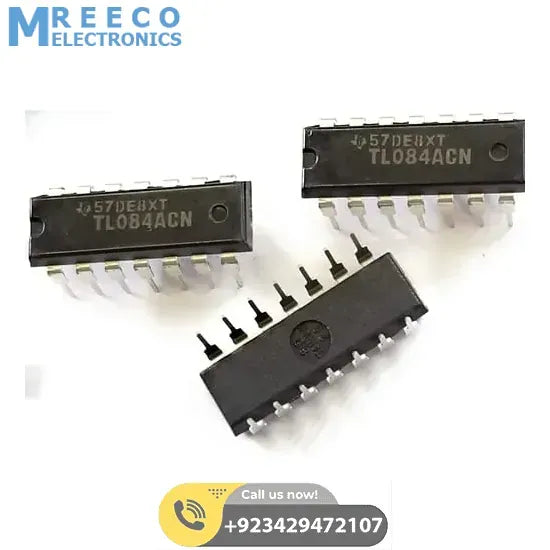

TL084 Quad Operational Amplifier IC

The TL084CN JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.

Features:

• Output Short-Circuit Protection
• Low Total Harmonic Distortion
• Latch-Up-Free Operation
• Wide Common-Mode and Differential Voltage Ranges
• Low Power Consumption
• High Input Impedance: JFET Input Stage

Specifications:

1. Supply Maximum Voltage: 36V
2. Number of Channels: 4 Channels
3. Gain Bandwidth Product: 3 MHz
4. Slew Rate: 13 V/us
5. Common Mode Rejection Ratio: 70 dB to 86 dB
6. Input Bias Current: 200 pA
7. Input Offset Voltage: 6 mV
8. Supply Minimum Voltage: 7 V
9. Operating Supply Current: 1.4 mA

Datasheet
