  2. UNI T UT216B True RMS Digital Clamp Meter 600A

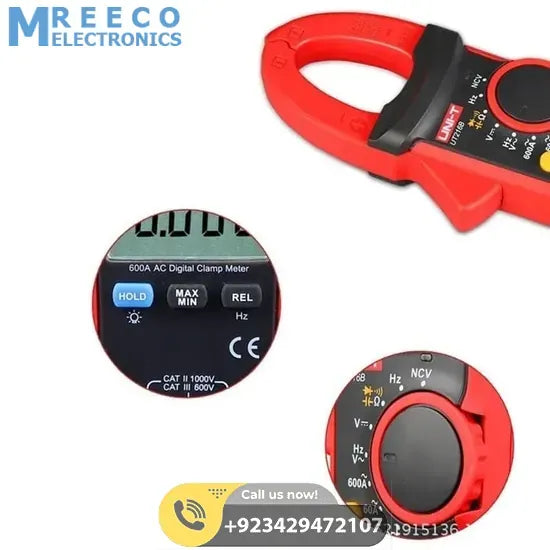

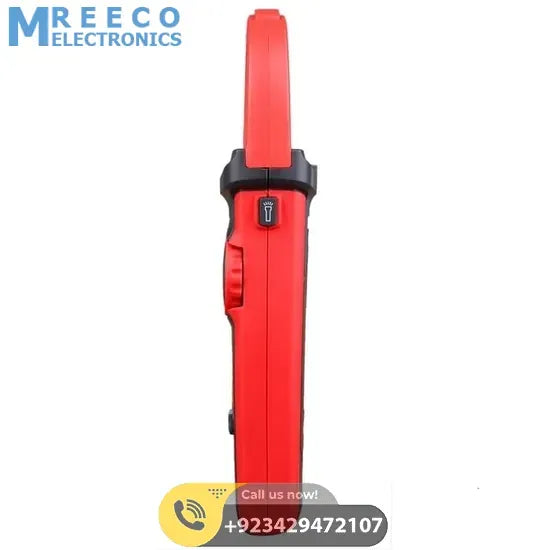

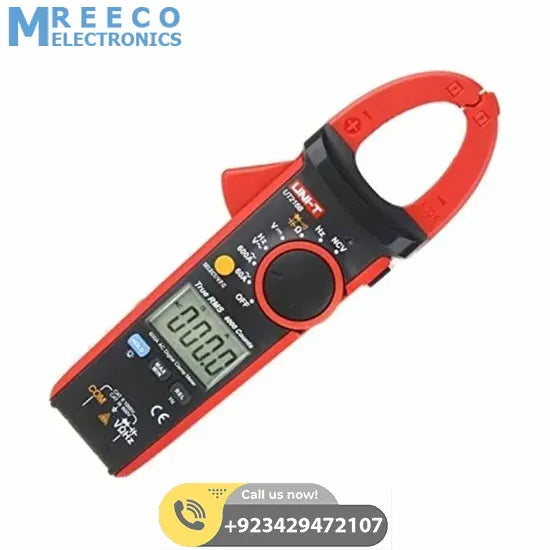

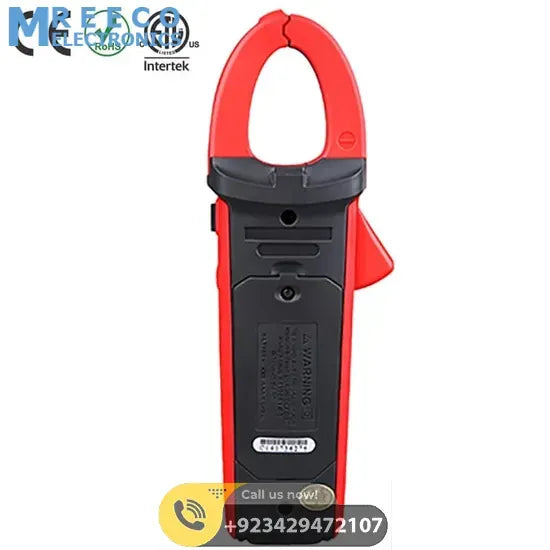

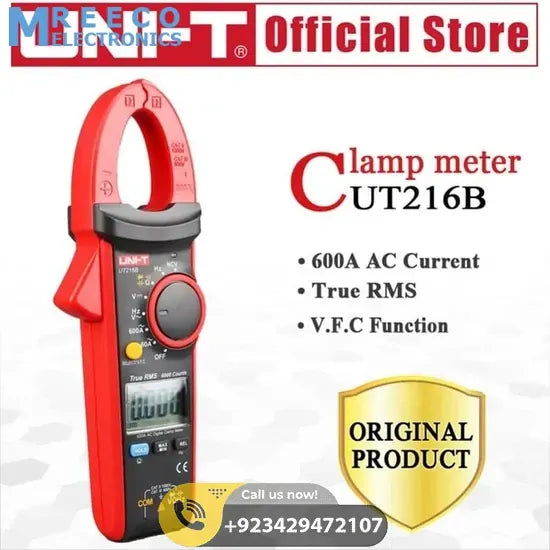

UNI T UT216B True RMS Digital Clamp Meter 600A - Front View
UNI-T

UNI T UT216B True RMS Digital Clamp Meter 600A

SKU: TMD1,Th6,KRTCategory: Meters
Rs 0

In stock

UT216 series Digital clamp meters are designed for measuring high-frequency currents (up to 400Hz) in railways and aerospace, server rooms, IT systems, etc. True RMS Clamp Tester's double injection design gives users ...

Ask about this product on WhatsApp
  • Fast deliveryFree shipping on prepaid orders above Rs. 10,000
  • Secure payment100% secure payments by Meezan Bank
  • SupportMonday to Saturday, 11:00 AM to 8:00 PM
  • ReturnsSee our return and refund policy

Description

UT216 series Digital clamp meters are designed for measuring high-frequency currents (up to 400Hz) in railways and aerospace, server rooms, IT systems, etc. True RMS Clamp Tester's double injection design gives users a more comfortable grip and enhanced durability. Produced by UNI-T. Handheld Clamp tester UT216B has full-range overload protection and unique appearance design is more excellent in performance.UNI-T ut216b Tong tester is an ideal tool for the detection, maintenance, and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power, and circuit equipment.

Features Of Portable Handheld Digital Electrical Clamp Meter UT216B:

  • True RMS
  • Auto range, 3/s sampling rate
  • MAX/MIN/Relative modes
  • Flashlight
  • Data hold, LCD backlight, auto power-off
  • 400Hz measurement
  • NCV, non-contact AC voltage testing
  • VFC, low pass filter

Specifications Of UNI-T UT216B AC/DC Current Auto Range Clamp Tester:

Specifications Range UT216A UT216B UT216C UT216D
AC current (A) 600A ±(2.5%+5) ±(2.5%+5) ±(2.5%+5) ±(2.5%+5)
AC current frequency response   50/60Hz 40~400Hz 40~400Hz 40~400Hz
DC current (A) 600A     ±(2.5%+5) ±(2.5%+5)
AC voltage (V) 750V ±(1.2%+5) ±(1.2%+5) ±(1.2%+5) ±(1.2%+5)
AC voltage frequency response   40~400Hz 40~400Hz 40~400Hz 45~400Hz
DC voltage (V) 1000V ±(0.8%+1) ±(0.8%+1) ±(0.8%+1) ±(0.8%+1)
Resistance (Ω) 60MΩ ±(1%+2) ±(1%+2) ±(1%+2) ±(1%+2)
Capacitance (F) 60mF ±(4%+5) ±(4%+5) ±(4%+5) ±(4%+5)
Frequency (Hz) 10Hz~1MHz   ±(0.1%+4) ±(0.1%+4) ±(0.1%+4)
Temperature -40°C~1000°C     ±(2%+5) ±(2.5%+3)
-40°F~1832°F     ±(2%+10) ±(2.5%+6)
Features
Display count   6000 6000 6000 6000
Auto range   √ √ √ √
Jaw opening   30mm 30mm 30mm 30mm
True RMS   √ √ √ √
Diode Around 3.0V √ √ √ √
V.F.C.     √ √ √
NCV   √ √ √ √
Data hold   √ √ √ √
Relative mode   √ √ √ √
MAX/MIN   √ √ √ √
LCD backlight   √ √ √
Inrush current       √ √
OLED display         √
Analog bar graph       61 21
Flashlight   √ √ √ √
Auto power off   √ √ √ √
Continuity buzzer   √ √ √ √
Low battery indication ≤3.6V √ √ √ √
Input protection   √ √ √ √
Input impedance for DCV ≥10MΩ √ √ √ √
General Characteristics
Power 1.5V battery (R03) x 3
Display 38mm x 24mm
Product color Red and grey
Product net weight UT216A: 280g; UT216B/C/D: 231.7g
Product size 220mm x 75mm x 40mm
Standard accessories Batteries, test leads, point contact temperature probe (UT216C/UT216D)
Standard individual packing Gift box, carrying bag, English manual
Standard quantity per carton 40pcs
Standard carton measurement 485mm x 345mm x 385mm
Standard carton gross weight UT216A: 20.6kg; UT216B: 19.3kg; UT216C: 20.1kg; UT216D: 20.3kg

Package includes:

  • 1x Clamp Meter UNI T UT216B
