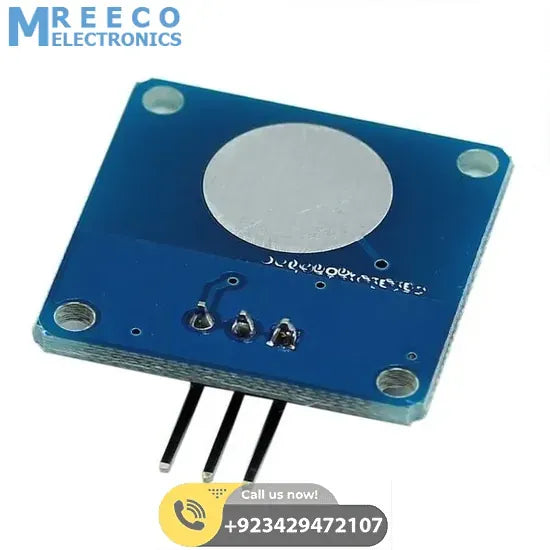

TTP223B Capacitive Touch Sensor Module

The Digital Sensor TTP223B Module Capacitive Touch Switch is based on a touch-sensing IC (TTP223B) capacitive touch switch module. In the normal state, the module output low, low power consumption; When a finger touches the corresponding position, the module output high, if not touched for 12 seconds, switch to low-power mode. Jog type : the initial state is low , high touch , do not touch is low ( similar touch of a button feature ) Module can be installed in such as surface plastic, glass of non-metallic materials In addition to the thin paper ( non-metallic ) covering the surface of the module , as long as the correct location of the touch , you can make hidden in the walls, desktops and other parts of buttons.

Touch Sensor Interface :

1. Control Interface: A total of three pins (GND, VCC, SIG), GND to ground, VCC is the power supply, SIG digital signal output pin
2. Power Indicator: Green LED, power on the right that is shiny

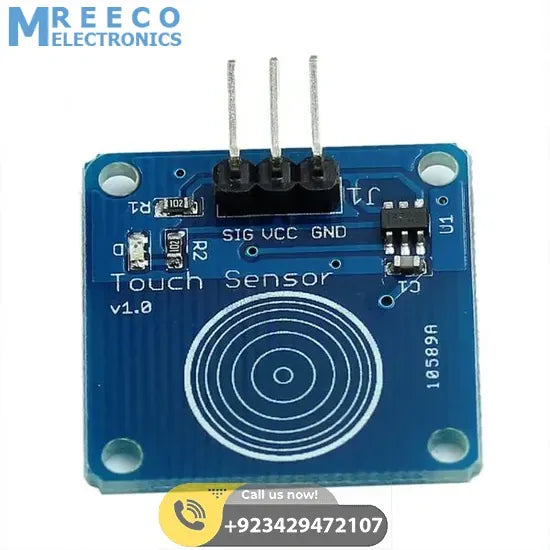

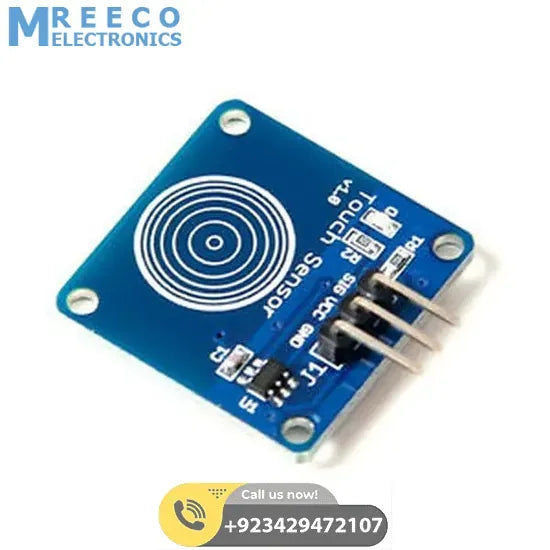

3. Touch area: Similar to a fingerprint icon inside the area, you can touch the trigger finger.
4. Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination.

Features:

1. Low power consumption
2. Power supply for 2 ~ 5.5V DC
3. Can replace the traditional touch of a button
4. Four M2 screws positioning holes for easy installation

Specification:

1. Power supply voltage(VCC): 2.0, 3, 5.5 V.
2. Output high VOH: 0.8VCC V
3. Output low VOL: 0.3VCC V
4. Response time (touch mode) : 60 mS
5. Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V) : 8 mA
6. Output pin pull-up current (@ VCC = 3V, VOH = 2.4V) : 4 mA
7. Response time (low power mode) : 220 mS
8. Size : 24 x 24 x 7.2 mm

Package Includes :

1 x TTP223B Capacitive Touch sensor Module
