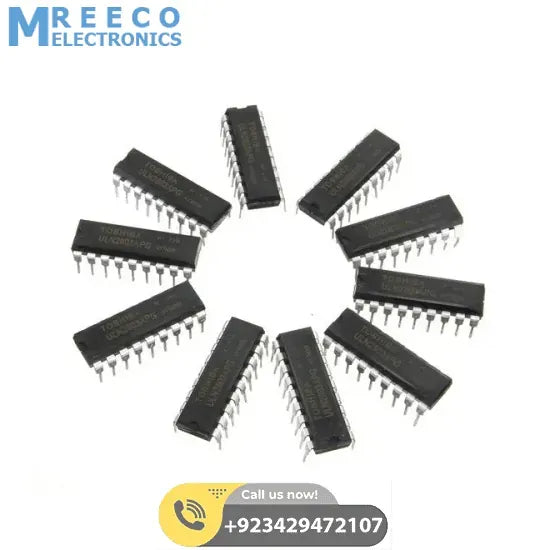

ULN2803 ULN2803A ULN2803A IC

The ULN2803A is a high-voltage, high-current Darlington transistor array. The device consists of eight npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500 mA. The Darlington pairs may be connected in parallel for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. The ULN2803A has a 2.7-k series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices

Applications:

• Motor driver
• relay driver
• Led lights driver
• Switching
• Driving printer hammers
• Industrial Equipment
• Printers

ULN2803 ULN2803A ULN2803APG IC Features:

• Output current (single output) 500 mA (max)
• High sustaining voltage output 50 V (min)
• Output clamp diodes
• Inputs compatible with various types of logic CMOS, TTL.
• Package Type−APG : DIP−18pin

Package Includes:

•   1x ULN2803 IC

•
