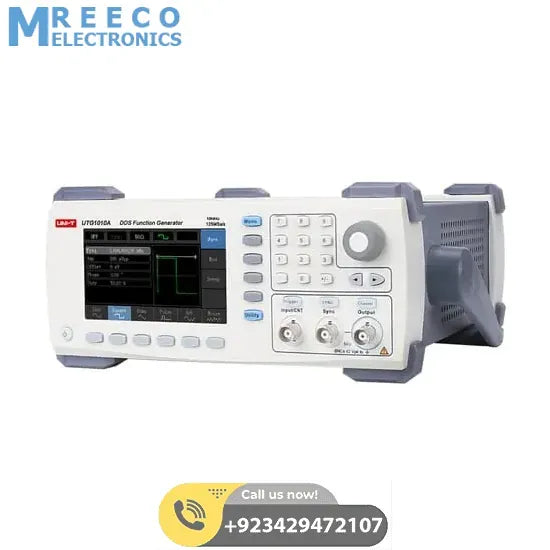

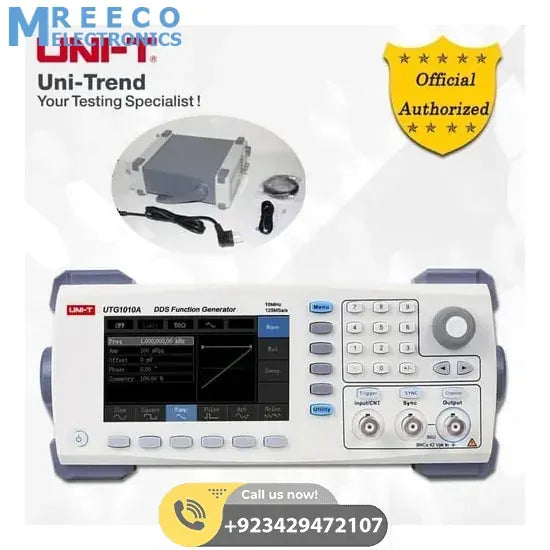

UNI T UTG1010A 10MHz DDS Function Generator in Pakistan

UNI T 10MHz Function Generator UTG1010A function/arbitrary waveform generators adopt direct digital synthesis technology to produce accurate and stable waveform output with 1Hz resolution. This UTG 1010A function waveform generator has modulations such as AM, PM, FM, ASK, FSK etc. This arbitrary waveform with an internal or external source, linear and logarithmic sweeps and USB interface are available. This function signal generator is ergonomically constructed for simple operation.

Features Of UNI-T Function/Arbitrary Waveform Generator UTG-1010A:

• 5MHz / 10MHz / 20MHz sine wave output, 1µHz full band resolution
• 5MHz pulse waveform output, rise and fall time adjustable
• 125MSa / s sampling rate and 14-bit vertical resolution
• Dual-channel performance standard
• 16 nonvolatile waveform memory
• Modulation modes: AM, FM, PM, ASK, FSK, PWM
• 4.3 inch high-resolution TFT LCD display
• Standard interface: USB Device

Specifications Of 10MHz 1CH Signal Function Generator 125MSa/s 4.3'' TFT LCD USB:

1. Model: UTG1010A
2. Channel: 1
3. Sampling rate: 125MS/s
4. Output frequency: 10MHz
5. Sine: 1μHz~10MHz
6. Square: 1μHz~5MHz
7. Ramp: 1μHz~400kHz
8. Pulse: 1μHz~5MHz
9. Arbitrary: 1μHz~2MHz
10. Resolution: 1μHz
11. Accuracy within 90 days: ± 50ppm, 18℃~28℃
12. Accuracy within 1 year: ± 100ppm, 18℃~28℃
13. Vertical resolution: 14 bits
14. Max. memory depth: 16 sets of arbitrary waveforms
15. Output standard waveform: Sine, square, ramp, triangle, pulse, noise, DC, arbitrary
16. Output amplitude range: 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (High Z)
17. Modulation types: AM, FM, PM, PWM, ASK, FSK, PSK
18. Interface: USB Device
19. Power: 100~240V AC, 50Hz/60Hz
20. Display: 4.3 inches TFT LCD, WVGA (480 x 272)

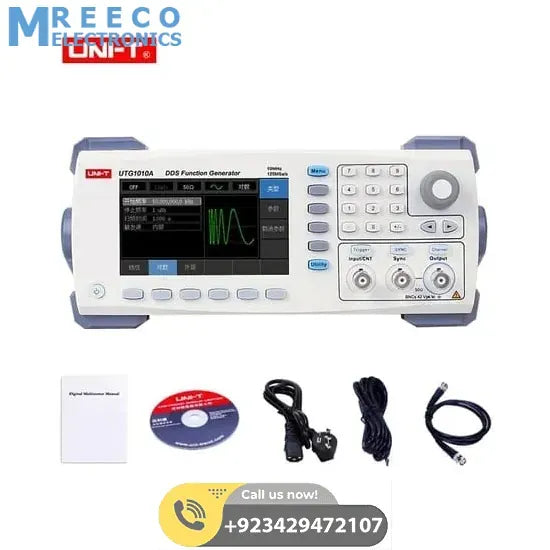

Package Includes:

• 1 x UNI-T function/arbitrary waveform generator UTG-1010A
• 1 x USB interface cable
• 1 x power cord
• 1 x BNC-BNC cable
• 1 x PC software CD
• 1 x User manual
