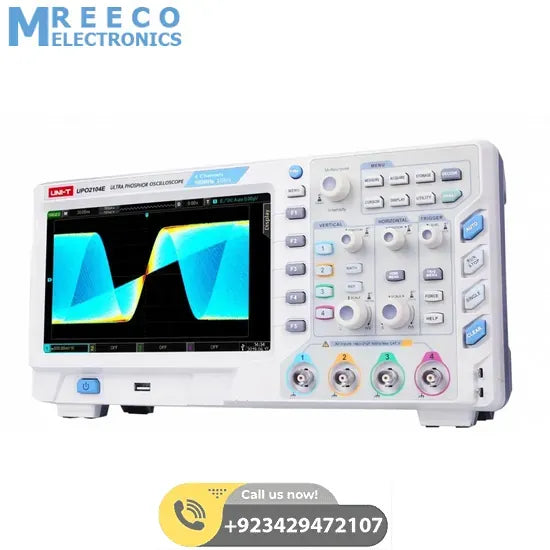

UNI-T UPO2104E 4 Channel Ultra Phosphor Oscilloscope in Pakistan
In stock
The UNI-T UPO2104E is a 4-channel oscilloscope for high performance and is a direct successor to the UPO2104CS. Compared to its predecessor, a number of specifications have been changed, for example, the 2104E has a m...
Ask about this product on WhatsApp- Fast deliveryFree shipping on prepaid orders above Rs. 10,000
- Secure payment100% secure payments by Meezan Bank
- SupportMonday to Saturday, 11:00 AM to 8:00 PM
- ReturnsSee our return and refund policy
Description
The UNI-T UPO2104E is a 4-channel oscilloscope for high performance and is a direct successor to the UPO2104CS. Compared to its predecessor, a number of specifications have been changed, for example, the 2104E has a memory depth of 56 Mpts and the waveform capture rate has been increased to 80,000 wfms per second. What makes this scope really unique is that it can use a separate time base per channel. Furthermore, the scope has a large number of functions and the trigger options have been drastically expanded.
Features of UNI-T 4 Channel UPO2104E Ultra Phosphor Oscilloscope:
- Bandwidth: 70MHz, 100MHz
- 56Mpts (single channel)
- 83,000wfms/s waveform capture rate
- 256-level intensity grading display
- Adjustable channel time base
- 65,000 frames waveform record
- 8-inch TFT LCD, WVGA (800 x 480)
- Interfaces: USB Host, USB device, LAN, AUX
Specifications of UNI-T 4 Channel UPO2104E Ultra Phosphor Oscilloscope:
| Display | 8 inches TFT color LCD Display with WVGA (800×480) resolution |
| Bandwidth | 100MHz |
| Memory Depth | 56Mpts (single channel) |
| Size | 336mm×164mm×108mm |
| Input Impedance | (1MΩ±2%) II (20pF±3pF) |
| Sampling Rate | 1GS/s |
| Channels | 4 |
| Frequency counter | Hardware 6 bits counter (Channels areselectable) |
| Power | 100V~240VAC, 50Hz/60Hz |
| Product Name | Uni-T 4 Channel UPO2104E Ultra Phosphor Oscilloscope |
| Vertical scale | 1mV/div~20V/div (1MΩ) |
| Waveform capture rate | 83,000wfms/s |
| Waveform record | 65,000 Frames |
| Weight | 3.5kg |
Specifications
| Brand | UNI-T |
|---|---|
| Category | Lab Equipments |
| SKU | TCBOX83 |
| Availability | In stock |
