UNI T UT343D Coating Thickness Gauge Meter Tester

SKU: RAWLIXUNICategory: Meters
Rs 0

In stock

UNI-T UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This UT-343D coating thickness meter is designed with a unique quick test feature. This car paint thickness gaug...

Ask about this product on WhatsApp
  • Fast deliveryFree shipping on prepaid orders above Rs. 10,000
  • Secure payment100% secure payments by Meezan Bank
  • SupportMonday to Saturday, 11:00 AM to 8:00 PM
  • ReturnsSee our return and refund policy

Description

UNI-T UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This UT-343D coating thickness meter is designed with a unique quick test feature. This car paint thickness gauge, which allows users to set thickness range and using a 3-colour LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency. UT343 digital thickness gauge meter display is auto rotatable. This CE certified best car paint thickness gauge can store up to 500 sets of data for further analysis through the PC analytical software that is included. This thickness gauge tool is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.

Features Of UNI-T UT343D Coating Thickness Gauge:

  • Automatic identification of iron and non-ferrous substrates
  • The sensor uses diamond clamping technology, which is accurate, wear-resistant and stable.
  • Single point and two-point calibration to ensure measurement accuracy
  • Single point, multi-point quick judgment and prompt

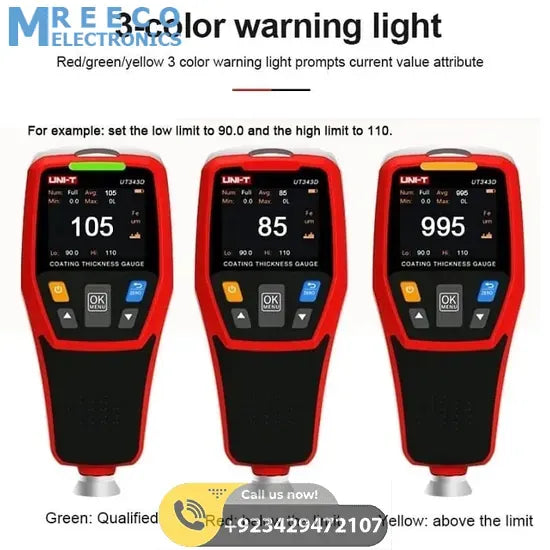

  • Red, green and yellow warning lights
  • The screen display content is automatically rotated
  • 500 sets of storage data and USB data transmission

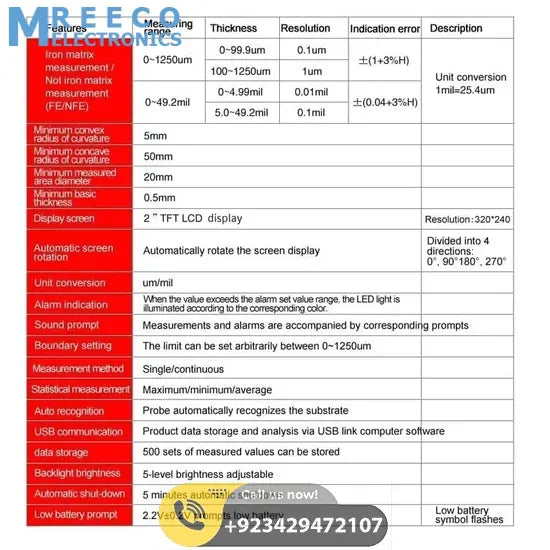

Specifications Of UNI-T UT343D Mini Coating Thickness Gauge Iron Matrix, Non-Ferrous Matrix Tester:

Specifications Range
Measuring range 0~1250um
Accuracy ±(3%H+1)um
Resolution 0.1um (0~99.9um); 1um (100~1250um)
Measurement method Single/Continuous
Measurement mode Max/Min/Avg
Metal type Ferrous/ non-ferrous
Features
Display type 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control √
Auto rotatable screen √
Unit conversion √
Audio alarm √
LED alarm √
PC analysis software √
USB communication √
Quick test mode √
Data storage  500 groups
Auto power off √
Low battery indication √
General Characterisitics
Power 1.5V AA battery (LR6) x 2
Display 48mm x 36mm
Product color Red and grey
Product net weight 175g
Product size 153.5mm x 64.5mm x 41mm
Standard accessories Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing Gift box, English manual
Standard quantity per carton 20pcs
Standard carton measurement 355mm x 320mm x 195mm
Standard carton gross weight 7.5kg

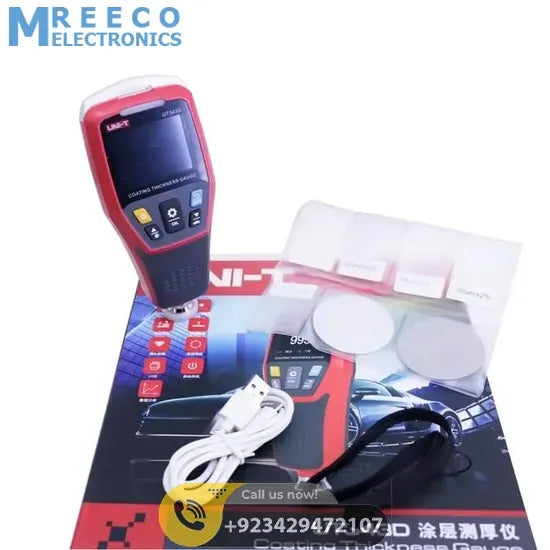

Package Includes:

  • 1 x Coating Thickness Gauge
  • 1 x Micro USB Interface Cable
  • 1 x User's Manual
  • 1 x Carrying Bag
  • 1 x Hand Strap
