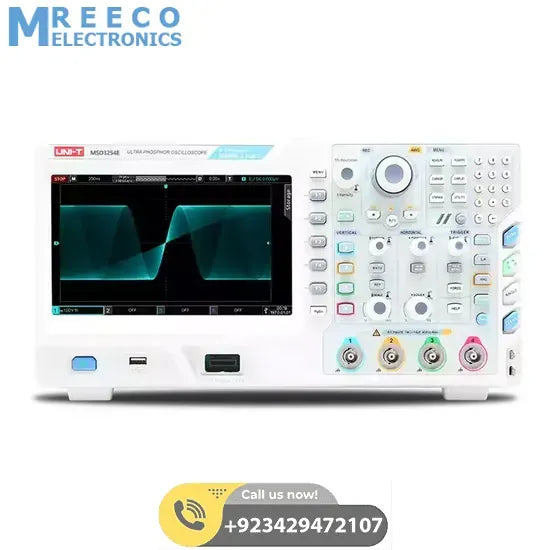

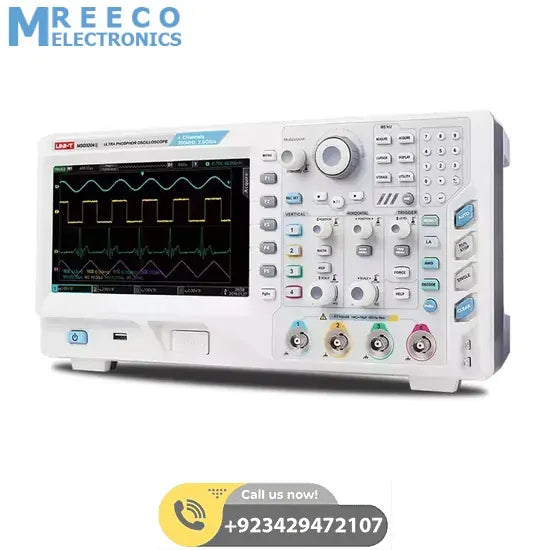

UNI-T MSO3254E 250MHz Mixed Signal 4 Channel Digital Oscilloscope

Model

MSO3152E

MSO3154E

MSO3252E

MSO3254E

Analog bandwidth

150MHz

250MHz

Channels

2+16 digital

4+16 digital

2+16 digital

4+ 16digital

Sampling rate (Analog)

2.5GS/s (Single channel), 1.25GS/s (Dual channels)

Sampling rate (Digital)

1.25GS/s (Eight channels), 625MS/s(Sixteen channels)

Memory depth

70Mpts

Waveform capture rate

200,000wfms/s

Time base scale

2ns/div~50s/div (Real-time sampling rate, memory depth display )

Time base scale (digital)

2ns/div~40S/div[Step by 1-2-4 stall]

Input impedance

(1MΩ±1%) II (20pF±3pF)

Input impedance digital

(101kΩ±1%) II (9pF±1pF)

Vertical scale

1mV/div~20 V/div (1 MΩ)

DC gain accuracy

<5mV: ±3%, ≥5mV: ±2%

Waveform record

100,000 frames

Trigger types

Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup/Hold, Pulse Width, Slop, Video, Code; RS232/UART, I2C, SPI, USB,
CAN, LIN, FlexRay

Bus decode

RS232/UART, I2C, SPI, USB, CAN, LIN, FlexRay

Waveform operations

A+B, A-B, A×B, A/B, FFT, editable advanced and logical operations

Auto measurements

Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width,
-Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in totaldigital
channel: Freq, Period, +Width, -Width, +Duty, -Duty, RiseDelay A→B,FallDelay A→B, Phase A→B, Phase B→A

Measurement display

5 types

Measurement statistics

Average, Max, Min, standard deviation and number of measurements

Frequency counter

6 bits

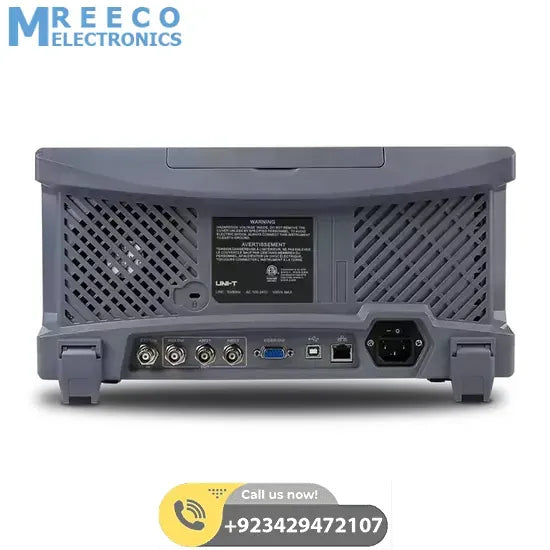

Standard interfaces

USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), AWG,UT-M15 logic analyzer probe, VGA

USB interface cable

UT-D14

Passive Probe x 2/4 (1 x , 10 x switchable,300MHz,)

UT-P06

Passive Probe x 2/4 (1 x , 10 x switchable,200MHz,)

UT-P05

16CH Logic analyzer probe

UT-15M
