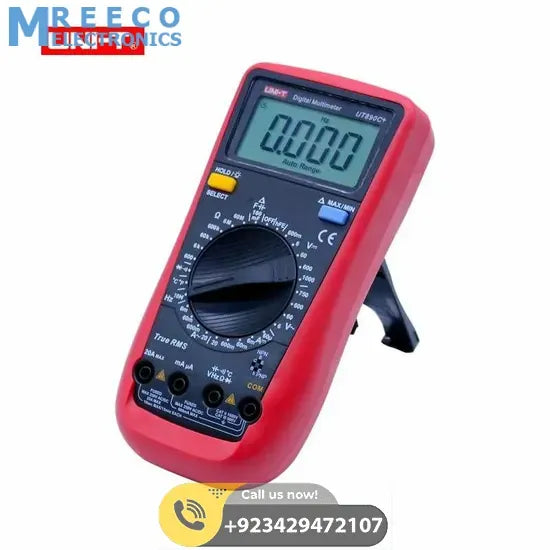

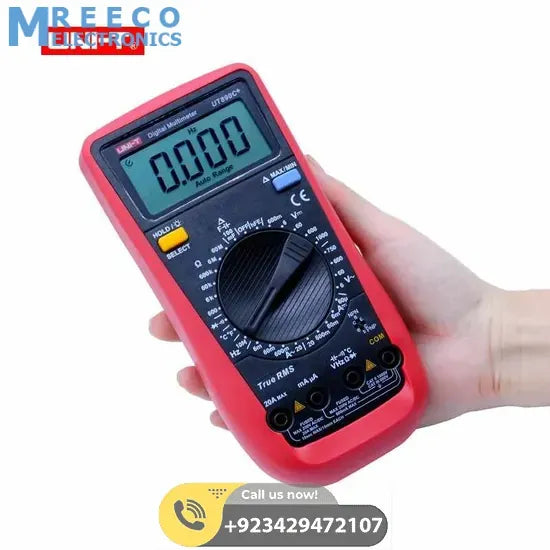

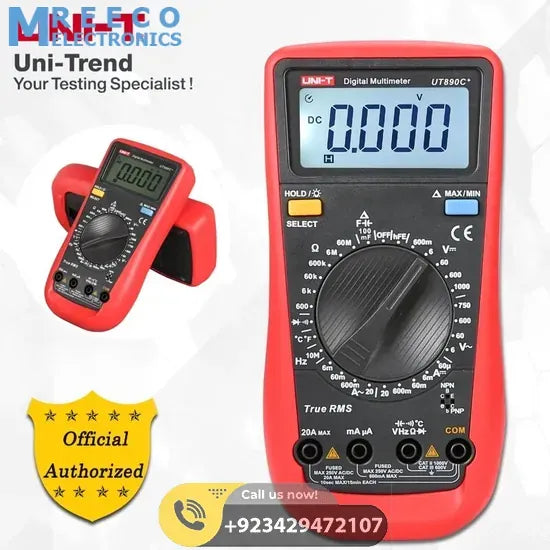

UNI T True RMS Digital Multimeter UT890C+ in Pakistan

A digital multimeter is a test tool used to measure two or more electrical values principally voltage (volts), current (amps) and resistance (ohms). UNI T True RMS DMM is a standard diagnostic tool for technicians in the electrical/electronic industries. The UNI-T UT890C+ 6000-count true RMS digital multimeters are designed with a large LCD display for measuring AC/DC voltage & current, resistance, frequency, capacitance, temperature and performing hFE, diode, continuity tests. UNI-T Standard Multimeter UT890C+ is ergonomic design, comfortable and solid. UT890C+ Multimeter is a cheap accurate multimeter for very tight budgets.

Features Of True RMS DMM UT890C+:

• Overload protection up to 600V.
• Data hold and True RMS function.
• Low battery indicating protection.
• High accuracy and resolution up to 6,000 counts.
• Add to unique MAX-MIN value calculate function.
• It can measure the diode whose voltage drop is up to 3V. So it is very suitable to measure LED.
• Fuse blowing alarm.
• Over-current alarm (≥20A).
• Auto power-off function.
• It also measures temperature °C and °F
• LCD backlight.

Specifications Of Digital Multimeter UNI-T UT890C+:

1. DC voltage:
• 600.0mV: ±(0.5%+4)
• 6.000V/60.00V/600.0V: ±(0.5%+2)
• 1000V: ±(0.7%+10)
2. AC voltage :
• 6.000V/60.00V/600.0V: ±(0.8%+3)
• 750V: ±(1.0%+10)
3. DC Current:
• 60.00uA/6.000mA/60.00mA: ±(0.8%+8)
• 600.0mA: ±(1.2%+5)
• 20A: ±(2.0%+5)
4. AC Current:
• 6.000mA/60.00mA: ±(1.0%+12)
• 600.0mA: ±(2.0%+3)
• 20A: ±(3.0%+5)
5. Resistance:
• 600.0Ω: ±(0.8%+5)
• 6.000kΩ¸/60.00kΩ¸/600.0kΩ¸/6.000MΩ: ±(0.8%+3)
• 60.00MΩ:± (1.0%+25)
6. Capacitance:
• 6.000nF: ±(5.0%+35)
• 60.00nF ~ 600.0uF: ±(2.5%+20)
• 6000uF: ±(5%+10)
7. Frequency:
• 9.999Hz ~ 9.999MHz: ±(0.1%+5)
8. Frequency Measuring range:
• 10Hz~10MHz (Auto range)
• ≤100kHz: 100mVRMS≤ Input ≤30VRMS,
• >100kHz~1MHz: 200mVRMS ≤ Input ≤ 30VRMS,
• >1MHz: 600mVRMS ≤ Input ≤ 30VRMS
9. Temperature :
• -400 ℃ ~ 1000 ℃: ± (1.0% + 3)
• -40 ℉ ~ 1832 ℉ : ± (1.5% + 5)

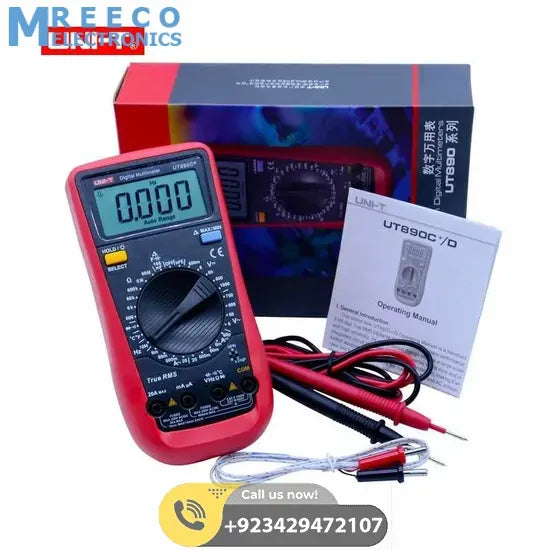

Package Include:

• 1 x UNI-T UT890C+ Digital Auto Range True RMS Multimeter

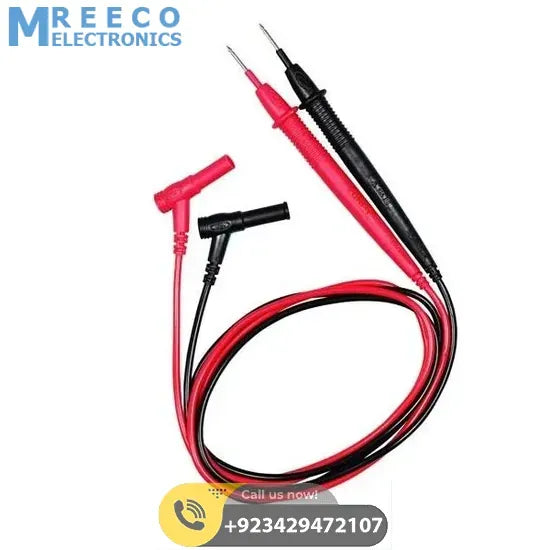

• 1 x Test Probe
