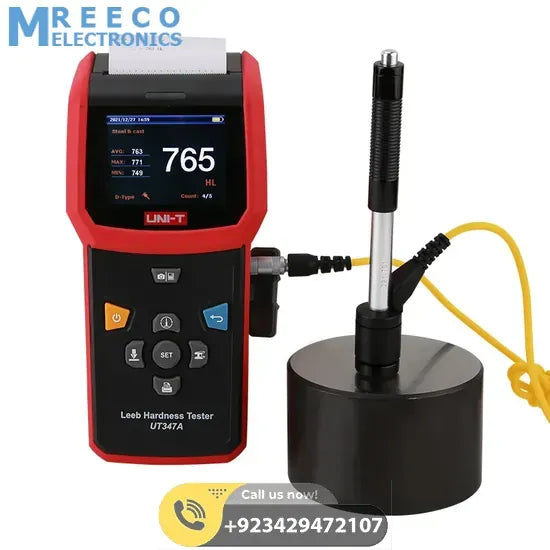

UNI-T UT347A Leeb Hardness Tester - Front View

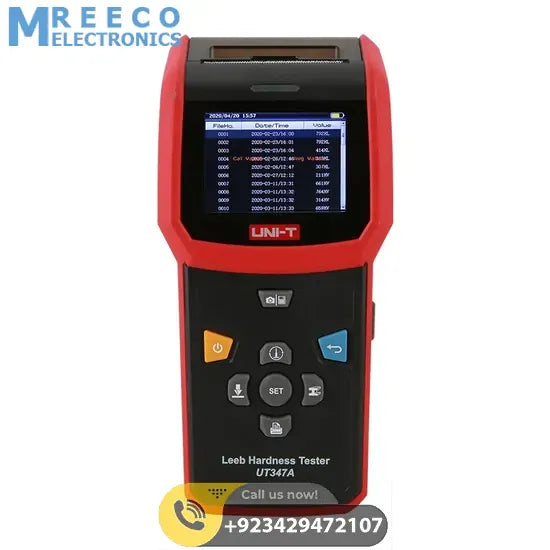

UNI-T UT347A Leeb Hardness Tester - Side View

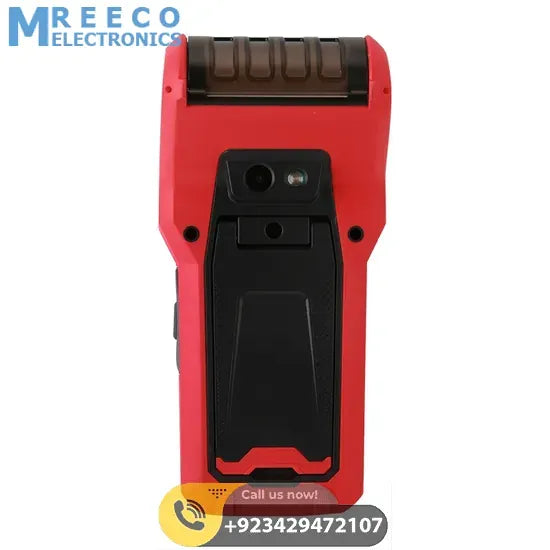

UNI-T UT347A Leeb Hardness Tester - Back View

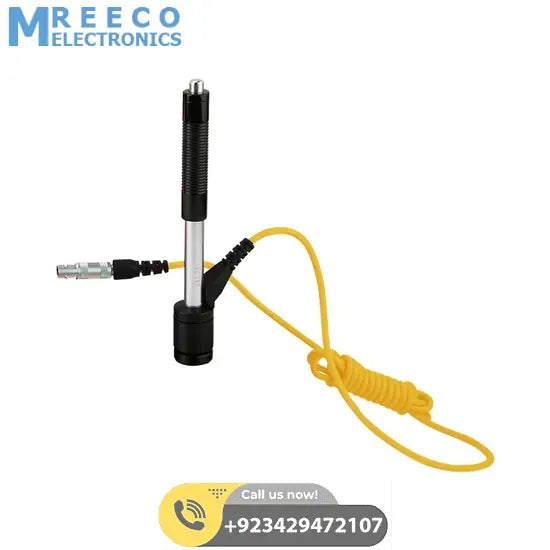

UNI-T UT347A Leeb Hardness Tester - Top View
Roll over image to zoom in Click on image to zoom
UNI-T UT347A Leeb Hardness Tester - Front ViewUNI-T UT347A Leeb Hardness Tester - Side ViewUNI-T UT347A Leeb Hardness Tester - Back ViewUNI-T UT347A Leeb Hardness Tester - Top View

UNI-T UT347A Leeb Hardness Tester

SKU: TCBOX5
Price:
Rs 0.00
Stock:
In stock

Pickup available at MREECO Electronics

Usually ready in 1 hour

Description

Features of UT347A Leeb Hardness Tester

  • 6 kinds of hardness VALUES (1HL, HB, HRC, HRB, HV, HS) is a real-time measurement
  • One hardness tester can be equipped with 7 different impact devices
  • Automatic identification without calibration when replacing impact device
  • Statistical, multi-unit, line chart, histogram 4 measurement modes
  • Camera: 640×480 pixels (900 BMP format pictures could be stored)
  • Automatic alarm when the upper and lower limits are exceeded
  • Adjustable backlight brightness
  • Mobile phone Bluetooth APP and PC software analysis data
  • Support thermal printing
  • Tri-color LED indication and LED flashlight

Technical Specifications of UT347A Leeb Hardness Tester

Specifications
Functions Impact device type Standard Richter block hardness value Resolution Error value Indication repeatability instructions
Hardness measurement D 790±40HLD 1HLD ±6HLD 6HLD Standard hardness blocks: 1. Standard D-type Richter hardness blocks A grade uniformity ±1HLD; 2. Standard G Type Richter Hardness blocks, grade A uniformity ±1HLG;
530±40HLD ±10HLD 10HLD
DC 790±40HLDC 1HLDC ±6HLDC 6HLDC
530±40HLDC ±10HLDC 10HLDC
DL 894±40HLDL 1HLDL ±12HLDL 12HLDL
736±40HLDL
D+15 795±40HLD+15 1HLD+15 ±12HLD+15 12HLD+15
544±40HLD+15
G 590±40HLG 1HLG ±12HLG 12HLG
500±40HLG
E 755±40HLE 1HLE ±12HLE 12HLE
508±40HLE
C 851±40HLC 1HLC ±12HLC 12HLC
590±40HLC
Certificates CE (In processing), UKCA
Display screen 2.8-inch 320*240 graphic dot matrix color TFT screen.
Material selection Steel and cast steel, alloy tool steel, stainless steel, forged steel, cast aluminum alloy, copper zinc alloy, copper tin alloy, gray cast iron, nodular cast iron, pure copper; Select the appropriate material for measurement.
Hardness scale  HL, HB,  HRC,  HRB,  HV, HS
Strength σb(tensile strength)
Impact direction 0°、45°、90°、135°、180°A total of 5 impact directions
Measurement mode Statistical, multi-unit, line chart, histogram
Statistical measure Max/Min/Avg
Thermal printing 57mm width thermal printing pape
Data storage 900groups
Voice prompt √
Bluetooth APP function √
USB Communication √
PC analysis software √
Auto power off Can be set: 1/ 5 / 10 /30 minutes or cancel
Low battery indication √
External power source Power adapter requirements: DC5V 2A Type-c connector.
Charging time About：2～4h
Battery 3.7V 2500mAh polymer rechargeable lithium battery.
Drop test 1m
