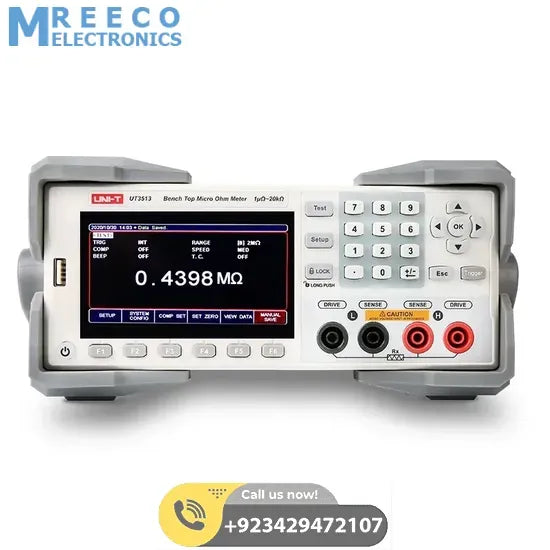

UNI-T UT3513 DC Resistance Tester Microohmmeter

Features of UNI-T UT3513 DC Resistance Tester Microohmmeter

• 4.3 inch LCD screen display
• 0.05% accuracy, with 20000 readings
• UT3513 resistance test range: 1μΩ~20kΩ

Range mode

The instrument can realize automatic, manual, and nominal range test modes

Optional test r speed

Three test speeds:

• Slow speed: 3 times/sec.
• Medium speed: 18 times/sec.
• Fast: 60 times/sec.

File management, saving and browsing data

For the measured display value, it can be quickly browsed on the screen of the instrument after manual saving. File management allows users to save settings to 10 files, which is easy to read when starting up or changing specifications.

Comparator function

• UT3516 has 6-gear sorting function, and UT3513 has 1 set of comparator functions.
• Built-in 10-level comparator output (UT3516): 6 qualified files (BIN1~BIN6),
• 3 unqualified files (NG, NG LO, NG HI, and 1 total qualified file (OK).
• Three ways to select the sound: off, qualified, unqualified Comparison method: direct reading comparison, absolute value tolerance, percentage tolerance.

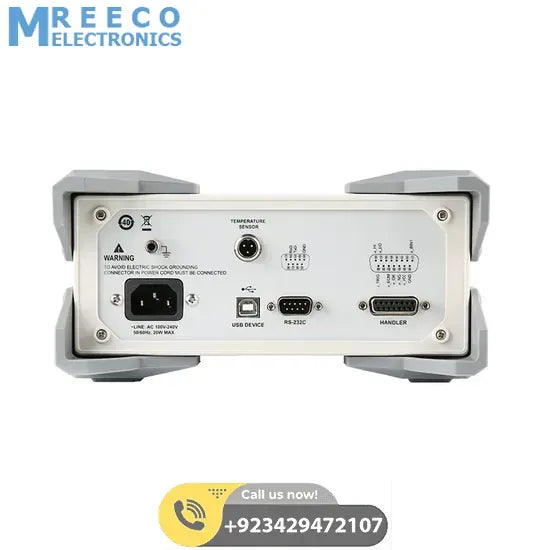

Configure rich interfaces

• RS-232/RS-485 interface: Use SCPI and Modbus RTU protocols to communicate with computers, PLCs or WINCE devices to efficiently complete remote control and data acquisition functions.
• USB Device: It can simplify the communication between the computer and the instrument.
• HANDLER interface: used to realize online operation to facilitate automatic control with user system control.
• Components Temperature compensation sensor input interface: the instrument has a built-in temperature compensation interface to compensate for test errors caused by ambient temperature.
• USB Host interface: used to save data or screenshots.

Technical Specifications of UNI-T UT3513 DC Resistance Tester Microohmmeter

Accessories of UNI-T UT3513 DC Resistance Tester Microohmmeter
