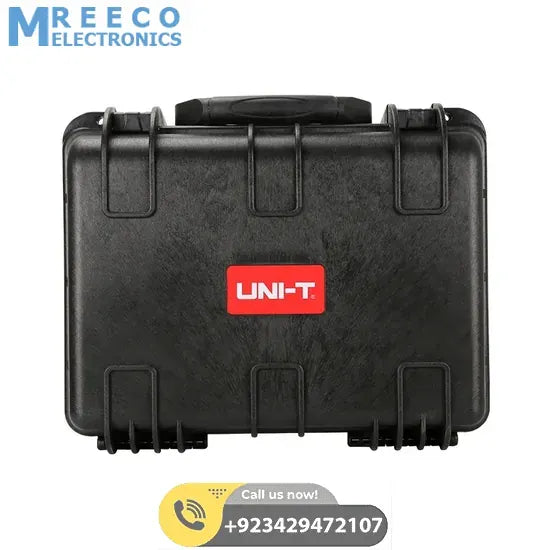

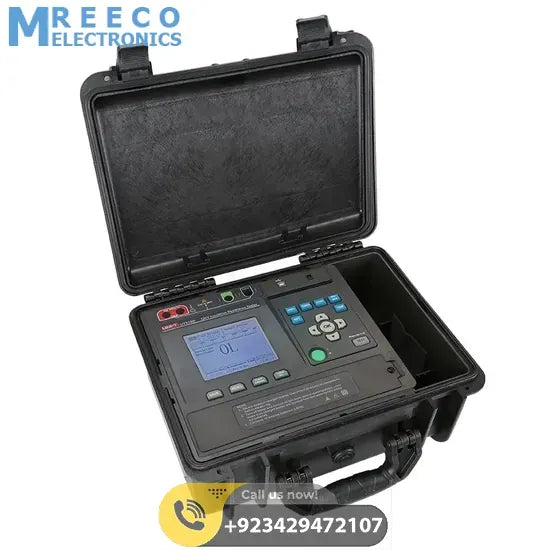

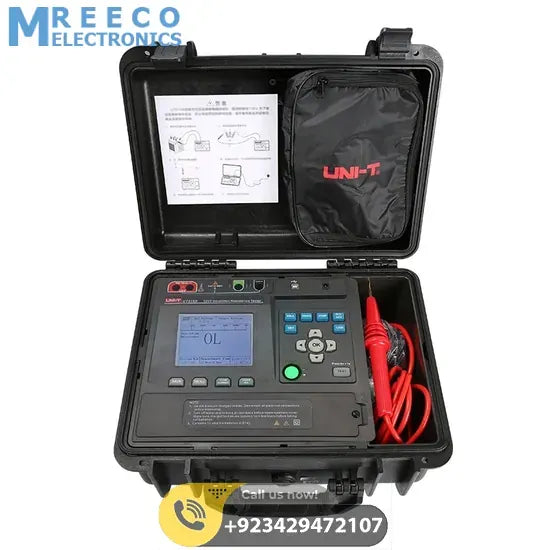

UNI-T UT516B Insulation Resistance Tester
Rs 0
In stock
Features of UT516B Insulation Resistance Tester: AC/DC voltage USB data transfer Low battery indication Data storage LCD backlight Polarization Index Over-range alarm 9999 Max display Comparative measurement Measurem...
Ask about this product on WhatsApp- Fast deliveryFree shipping on prepaid orders above Rs. 10,000
- Secure payment100% secure payments by Meezan Bank
- SupportMonday to Saturday, 11:00 AM to 8:00 PM
- ReturnsSee our return and refund policy
Description
Features of UT516B Insulation Resistance Tester:
- AC/DC voltage
- USB data transfer
- Low battery indication
- Data storage
- LCD backlight
- Polarization Index
- Over-range alarm
- 9999 Max display
- Comparative measurement
- Measurement time selection
Technical Specifications of UT516B Insulation Resistance Tester:
| Specifications | Range | UT516B | |||
| Insulation Resistance Measurement | 500V | 0.50MΩ~4.99G | ±(5%+5) | ||
| 5.00G-49.9GΩ | ±(10%+10) | ||||
| 50.0GΩ-500GΩ | for reference only | ||||
| 1000V | 1.00MΩ-9.99GΩ | ±(5%+5) | |||
| 10.0G-99.9GΩ | ±(15%+10) | ||||
| 100GΩ-1000GΩ | for reference only | ||||
| 2500V | 2.50MΩ-24.9GΩ | ±(5%+5) | |||
| 25.0G-249GΩ | ±(15%+10) | ||||
| 250GΩ-2.5TΩ | for reference only | ||||
| 5000V | 5.00MΩ-49.9GΩ | ±(5%+5) | |||
| 50G-499GΩ | ±(15%+20) | ||||
| 500GΩ-5.0TΩ | for reference only | ||||
| 10000V | 10.0MΩ-99.9GΩ | ±(10%+10) | |||
| 100G-999GΩ | ±(20%+20) | ||||
| 1000GΩ-10TΩ | for reference only | ||||
| 12000V | 12.0MΩ-99.9GΩ | ±(10%+10) | |||
| 100G-999GΩ | ±(20%+20) | ||||
| 1000GΩ-10TΩ | for reference only | ||||
| Output voltage | 500V | 0~+10% | |||
| 1000V | 0~+10% | ||||
| 2500V | 0~+10% | ||||
| 5000V | 0~+10% | ||||
| 10000V | -5~+10% | ||||
| 12000V | -5~+10% | ||||
| Load current | 500V (R=500KΩ) 1mA | 0%---+20% | |||
| 1000V (R=1MΩ) 1mA | 0%---+20% | ||||
| 2500V (R=2.5MΩ) 1mA | 0%---+20% | ||||
| 5000V (R=5MΩ) 1mA | 0%---+20% | ||||
| 10000V (R=10MΩ) 0.15~1.2mA | 0%---+20% | ||||
| 12000V (R=12MΩ) 0.15~1.2mA | 0%---+20% | ||||
| DC voltage measurement | 30V~1000V | ±(3%+5) | |||
| AC voltage measurement | 30V~750V (50~60Hz) | ±(3%+5) | |||
| Features | |||||
| PC software for data analysis | √ | ||||
| Backlight Function | √ | ||||
| Date storage | 999 sets of date | √ | |||
| Dielectric Absorption Ratio (DAR) | 0.00~999 | √ | |||
| Polarization Index (PI) | 0.00~999 | √ | |||
| General Characterisitics | |||||
| Power | 1.5V alkaline batteries (LR14) X 10, power adapter | ||||
| Product color | Red and grey | ||||
| Product net weight | 6.6kg | ||||
| Product size | 410*342*204mm | ||||
| Standard accessories | User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries | ||||
| Standard individual packing | Gift box, tool box | ||||
| Standard quantity per carton | 1pc | ||||
| Standard carton measurement | 510*320*420mm | ||||
| Standard carton gross weight | 10.2kg | ||||
