- UNI-T UT620A Digital Micro Ohm Meter
UNI-T

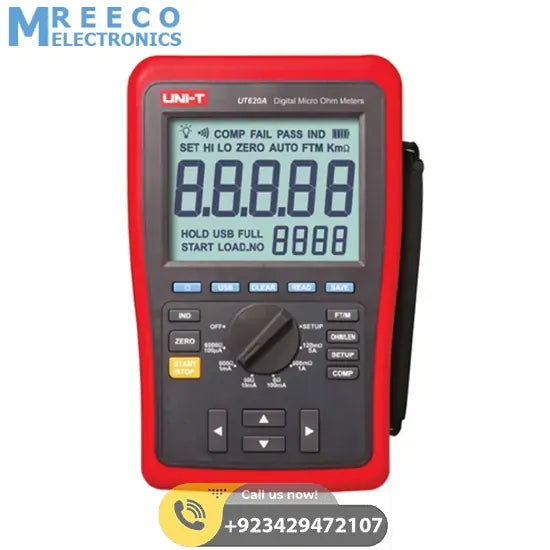

UNI-T UT620A Digital Micro Ohm Meter
Rs 0
In stock
Applications of UNI-T UT620A Digital Micro Ohm Meter:UT620 can be used in narrow space for on-site troubleshooting, such as metal coating resistance/motor and small transformer winding resistance measurements, earth s...
Ask about this product on WhatsApp- Fast deliveryFree shipping on prepaid orders above Rs. 10,000
- Secure payment100% secure payments by Meezan Bank
- SupportMonday to Saturday, 11:00 AM to 8:00 PM
- ReturnsSee our return and refund policy
Description
Applications of UNI-T UT620A Digital Micro Ohm Meter:
UT620 can be used in narrow space for on-site troubleshooting, such as metal coating resistance/motor and small transformer winding resistance measurements, earth system joints/welding points/power distribution cabinet bus and lead connection inspections and more.
Features of UNI-T UT620A Digital Micro Ohm Meter:
- Improved measurement method which improves accuracy by counter-balancing contact resistance of leads
- Comparison measurement with upper and lower limits
- Wire length measurement (m/ft)
- Built-in Lithium battery
- 1000-group data storage
- Data transmission between USB and PC
- Data hold
- LCD backlight
- Zeroing function, relative mode
- IND resistance measurement mode
Technical Specifications of UNI-T UT620A Digital Micro Ohm Meter:
| Specifications | Range | UT620A |
| Resolution | 10uΩ | |
| Resistance (Ω) | 120mΩ/5A | ±(0.25%+25) |
| 600mΩ/1A | ±(0.25%+25) | |
| 6Ω/100mA | ±(0.25%+25) | |
| 60Ω/10mA | ±(0.25%+25) | |
| 600Ω/1mA | ±(0.25%+25) | |
| 6kΩ/100uA | ±(0.75%+30) | |
| Features | ||
| Display count | 60000 | |
| Four-wire measurement | √ | |
| Wire length measurement | √ | |
| High/low limit alarm | √ | |
| Data storage | 1000 | |
| USB data transmission | √ | |
| Manual range | √ | |
| Backlight | √ | |
| Relative value | √ | |
| Low battery indication | √ | |
| General Characterisitics | ||
| Power | Li-ion battery 7.4V 4000mAh, rechargeable | |
| Display | 116mm x 87.5mm | |
| Product color | Red and grey | |
| Product net weight | 1.5kg | |
| Product size | 268mm x 168mm x 60mm | |
| Standard accessories | Test leads with Kelvin clips (red & black), power cord, power adaptor, USB interface cable, PC software CD | |
| Standard individual packing | Gift box, carrying bag, English manual | |
| Standard quantity per carton | 1pcs | |
| Standard carton measurement | 370mm x 90mm x 290mm | |
| Standard carton gross weight | 3kg | |
| Optional accessories | Four-wire test probes (red & black) x 1 | |
