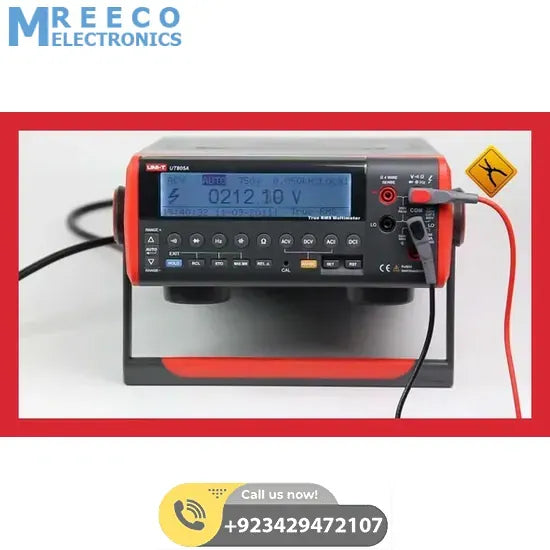

UNI-T UT805A Bechtop Digital Multimeter

Description:

UNI-T UT805A Bechtop Digital Multimeter is now also avaible in Pakistan.

Features:

1. Auto range; Bandwidth (100kHz )
2. Diode; Continuity buzzer; True RMS
3. Data hold; Relative measurement
4. MAX/MIN; Data recall; RS-232
5. Voltage and current: AC+DC measurement
6. 200000-count auto range/TRMS
7. 256 x 64 pixels dot-matrix LCD
8. High accuracy up to ±(0.015%+3) for DC voltage

Specifications: Specifications Range Best Accuracy Model 　 UT805A DC voltage (V) 1000V ±(0.015%+3) AC voltage (V) 750V ±(0.2%+100) DC current (A) 10A ±(0.03%+10) AC current (A) 10A ±(0.3%+100) Resistance (Ω) 20MΩ ±(0.02%+6) Capacitance (F) 6mF ±(2%+5) Frequency (Hz) 10Hz~60MHz ±(0.1%+3) Features Display count 　 200000 Data storage 　 100 USB interface 　 √ LCD backlight 　 √ Dot-matrix LCD 256 × 64 pixels √ Input protection 　 √ General Characteristics Power AC 220V/50Hz Display 128mm x 28mm Product color White and grey Product net weight 3.2kg Product size 300mm x 245mm x 105mm Standard accessories Test lead, multi-purpose socket, AC 220V power cord, software CD, RS-232 interface cable, USB interface cable, alligator clip, probe Standard individual packing Carton box, English manual Standard quantity per carton 4pcs Standard carton measurement 685mm x 450mm x 315mm Package includes:

1xUNI-T UT805A Bechtop Digital Multimeter
