| Model |

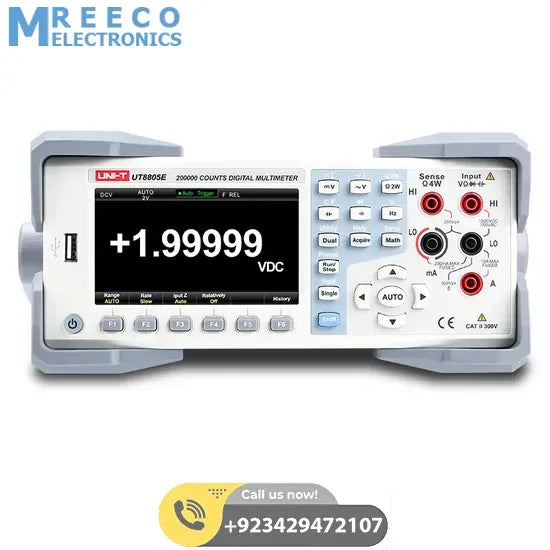

UT8805E |
| Specifications |
Range |
Accuracy (90 days) |
| DC voltage (V) |
20mV/2V/20V/200V/1000V |
±(0.008%+0.003%) |
| AC voltage (V) |
200mV/2V/20V/200V/750V |
±(0.19%+0.05%) |
| DC current (A) |
200μA/2mA/20mA/200mA/2A/10A |
±(0.050%+0.005%) |
| AC current (A) |
2mA/20mA/200mA/2A/10A |
±(0.30%+0.1%) |
| Resistance (Ω) |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10MΩ/100MΩ |
±(0.012%+0.003%) |
| Capacitance (F) |
2nF/20nF/200nF/2μF/20μF/200μF/2mF |
±(1%+0.5%) |
| Frequency (Hz) |
20Hz~1MHz |
±(0.01%+0.003%) |
| Temperature |
-270°C~1760°C (thermocouple and thermal resistance sensor supported) |
±0.5°C |
| special function |
| Display count |
199999 |
| Auto range |
√ |
| True RMS |
√ |
| Sampling speed |
5k rdgs/s |
| Data storage |
10k data record; 1GB Nand Flash total storage |
| Frequency response (Hz) |
100kHz |
| Diode/triode |
√ |
| Continuity buzzer |
√ |
| Data hold |
√ |
| Mathematical operations |
Pass/Fail, relative value, minimum/maximum/average, standard deviation, dBm, dB, Hold, histogram, trend chart and bar chart |
| Voltage & current |
AC+DC |
| Input resistance |
≥10GB or 10MΩ |
| Interface |
USB Host, USB Device, LAN, RS-232 |
| General Characteristics |
| Power |
AC 100V~120V: 45Hz~440Hz; AC 200V~240V: 45Hz~66Hz |
| Display |
4.3 inches TFT LCD |
| Product color |
White and grey |
| Product net weight |
4.4kg |
| Product size |
239mm×100mm×344mm |
| Standard individual packing |
Carton box |
| Standard quantity per carton |
2pcs |
| Standard carton measurement |
380mm x 330mm x 320mm |
| Standard carton gross weight |
9kg |
| Ordering Information |
| UT8000E Series |
Benchtop Digital Multimeter (199999,Auto) |
UT8805E |
| Standard Accessories |
International standard power cord |
/ |
| USB interface cable |
/ |
| Test leads |
/ |
| double female straight-through serial cable |
DB9 |
| Product Warranty Card |
/ |
| backup fuse |
/ |
| User manual and Software appliation CD |
/ |
