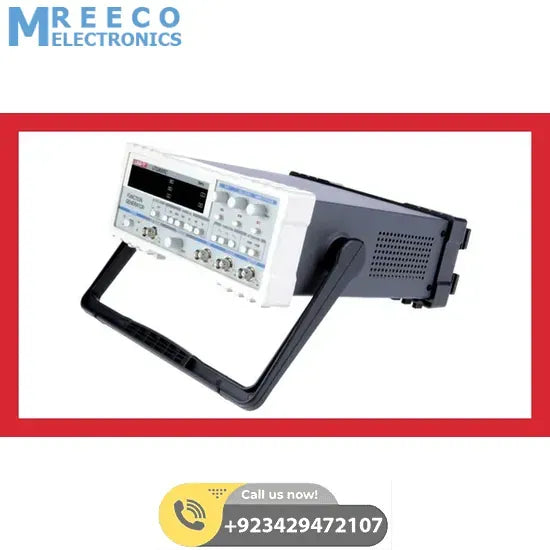

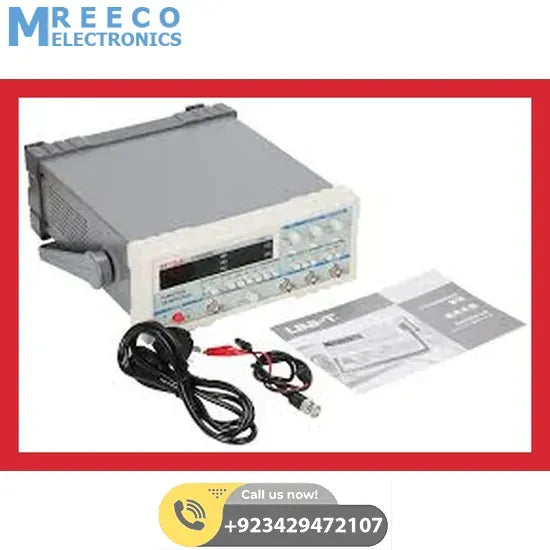

UNI-T UTG 9005C Function Generator in Pakistan

Function generator for the output of sine, square, triangle, pulse, TTL, and ramp signals with a frequency range up to 5 MHz. 4-digit frequency display, 3-digit amplitude display. The device can also be used as a frequency counter. Operating voltage: 220 VAC. Dimensions: 320 x 240 x 100 mm / 3.0 kg. Incl .: BNC to Krokoclip cable, power cable, user manual.

1. Amplitude: 1 mVpp to 20 Vpp
2. Accuracy / Resolution: ± 5.0% / 0.1 mV
3. Frequency: 5 Hz to 5 MHz
4. Accuracy / Resolution: ± 1.0% / 1 mHz
5. Output Power: 2 Wpp
6. Output Impedance : 50 • Attenuation: 20dB + 40dB
7. DC Offset: -10V ... + 10V
8. Display: 4 Digits Frequency / 3 Digits Amplitude
9. Duty Cycle: 10% - 90%
10. Distortion, sine: <2% at 1 kHz
11. Rise time, square wave: <35nS
12. VCF:> 100: 1
13. Counter range: 0.2Hz - 10MHz
14. Amplitude range: 0.5Vpp - 5Vpp
15. nput impedance: 10k
16. Housing color Light gray / Gray
17. Weight:3kg
18. width 320 mm
19. height 100 mm
20. depth 240 mm
