Description

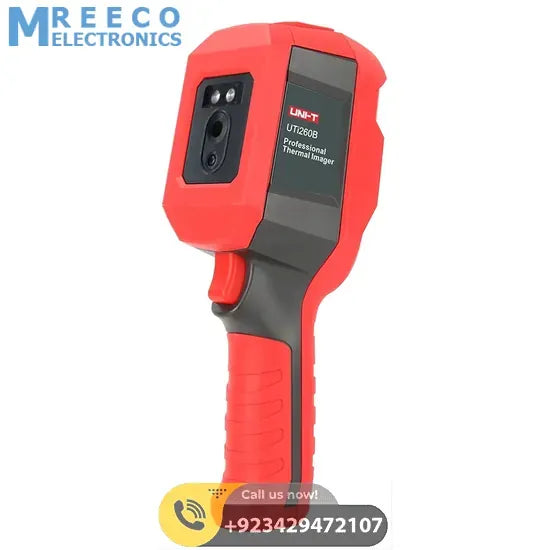

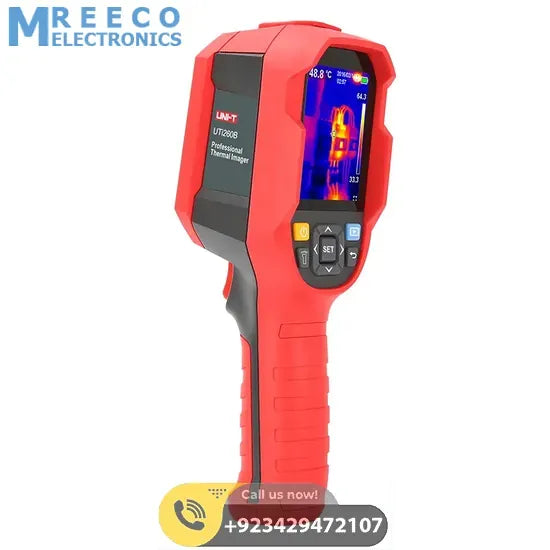

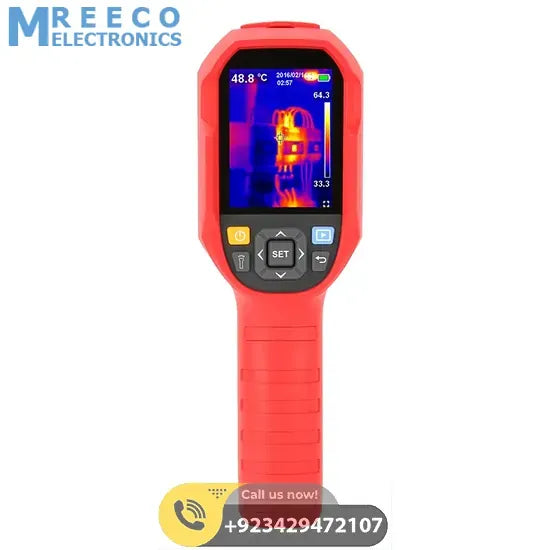

Description of UNI-T UTi260B Thermal Imager:
- Infrared resolution: 120x90 to 256x192
- Display models: Thermal, Digital camera, Thermal blending, PiP on selected models
- Temperature measurement range: -20℃~400℃ / -20℃~550℃
- Cost effective
Technical Specifications of UNI-T UTi260B Thermal Imager:
| IR resolution | 256x192 pixel |
| Screen Display | 2.8”LCD |
| Field of view (FOV) | 56°x 42° |
| Thermal sensitivity (NETD) | 50mk |
| Spatial resolution (IFOV) | 3.8mrad |
| Focus | Focus free |
| Frame rate | 25Hz |
| Object Temperature range | -20~550℃ |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Battery operating time | 6hours |
| Founctions | |
| Palettes | 7 |
| Emissivity | Adjustable (0.01-0.99) |
| Measurement presets | Point x3 |
| Digital camera | 648 x 488 pixels |
| Image Model | Thermal,visible,blending,PiP |
| LED | √ |
| ROI (eliminates interference) | √ |
| Auto tracking for Lo/Hi temperature | √ |
| Alarm | √ |
| Storage | 16G Micro SD Card |
| PC software | Analysis, Real-time display |
| Protection | IP65/2m |
| Communication interface | Type-C |
| Package | |
| Product net size | 236mm x 75.5 mm x 86mm |
| Product net weight | 910g |
| Standard accessories | Micro SD card, Type-C USB cable, Manual |
