Description

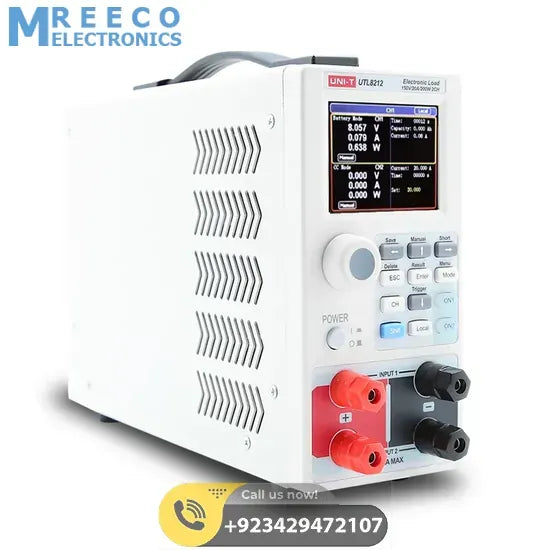

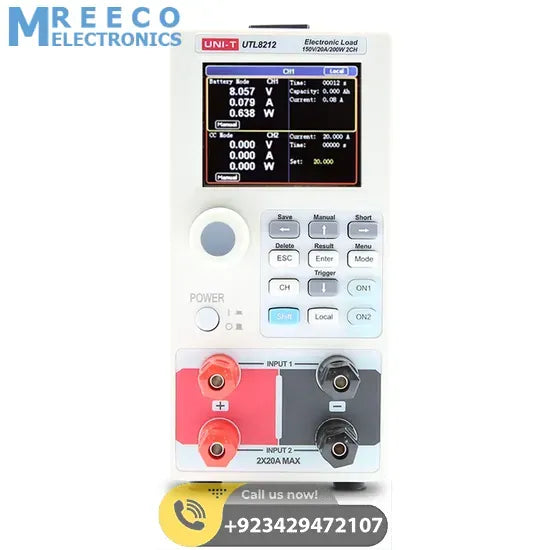

Features of UNI-T UTL8211 / UTL8212 DC Electronic Load Tester:
- 2.8 inch large screen LCD display
- Test resolution: 1mV/1mA
- Voltage test range: 0~150V
- Current test range: 0~40A (UTL8211), 0~20A (UTL8212)
- Power test range: 0~400W (UTL8211), 0~200W (UTL8212)
- Built-in 7 test modes
- 7 working modes: CC/CV/CR/CP/dynamic/list/battery
- Independent short circuit test function
- Multi-mode battery discharge test
- Multiple protection functions. Various protections such as over-voltage, low voltage, over current, over power, overheat, anti-reverse connection, etc.

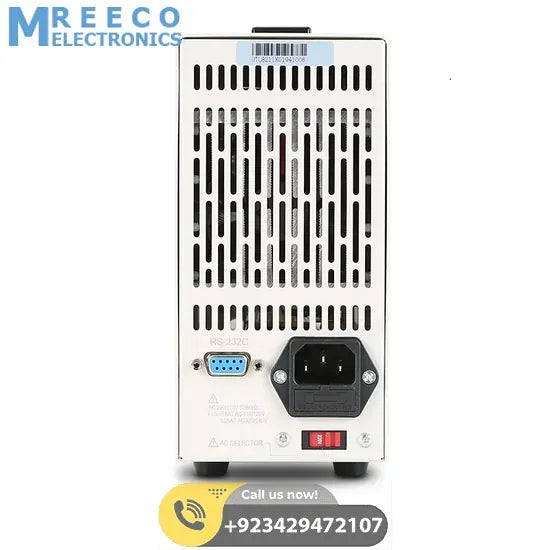

RS-232C communication interface, intelligent temperature control fan, power-off memory function:
- Standard RS-232C interface: supporting PC software to realize remote operation.
- Intelligent temperature control fan: Effectively reduce noise and help prevent the instrument from overheating.
- Power-off memory: power on again to restore the last saved setting value.
| MODEL | UTL8211 | UTL8212 |
| VOLTAGE | 150V | 150V |
| CURRENT | 40A | 20A |
|
TOTAL POWER |
400W | 200W*2CH |
| RESOLUTION | 1mV/1mA | 1mV/1mA |
| MAX. DYNAMIC FREQUENCY | 10kHz | 10kHz |
| CURRENT SLEW RATE | 0.15A/μs | 0.15A/μs |
| SIZE | 300mm x 88mm x 174mm | 300mm x 88mm x 174mm |
| CONNECTIVITY | RS-232 | RS-232 |
| NO OF CHANNELS | Single Channel | Dual Channel |
| DATA STORAGE | Memory Storage 60 Groups | Memory Storage 60 Groups |
