AL253 Boost Converter For Internet Router 5V 9V 12 DC Output Mini Converter Boost Step Ptcl D Link Tp Link

Mini Converter Boost Step Up DC-DC, 3V, 3.2V, 3.3V, 3.7V, 5V, 9V to 12V, PCB Board Module, can be configured 5V/ 8V/ 9V

Multi-function Mini DC-DC Boost Step Up Volt Converter 5V 6V 9V to 12V Power Supply Module

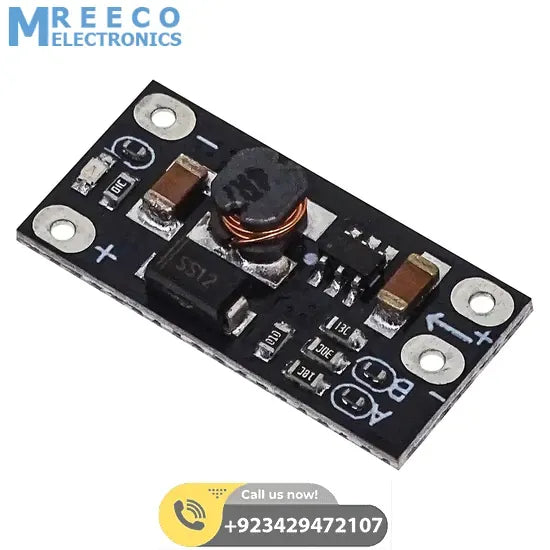

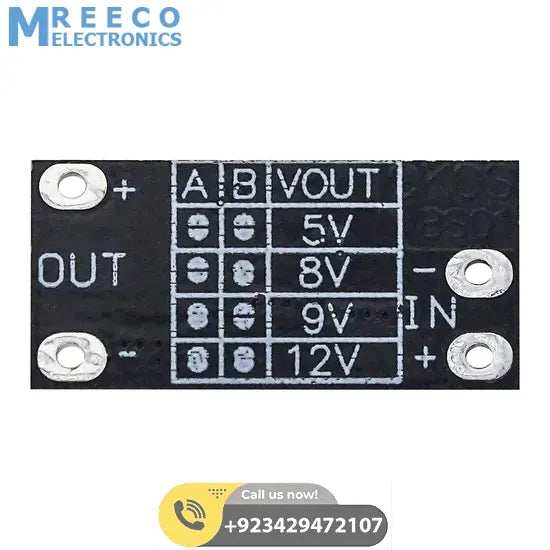

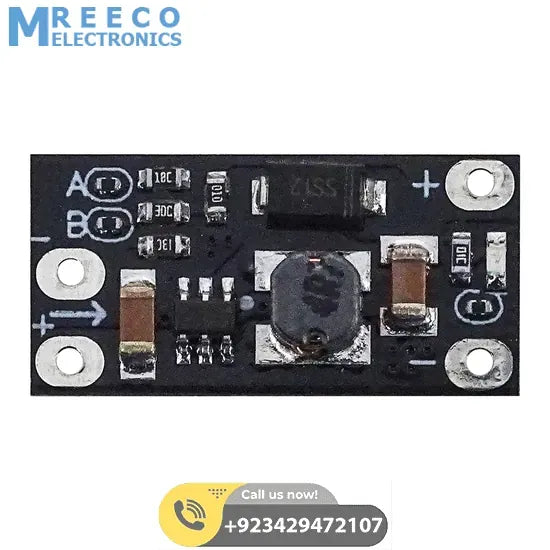

The front side of the PCB can be seen with the words A and B. The output voltage can be changed by using the soldering iron to switch the pad on and off. In the table below, 0 means that the pad is disconnected and 1 means that the pad is connected.

The basic parameters

• The output voltage can be set to 5V / 8V / 9V / 12V, the default is 12V
• Input voltage range: 2.5V ~ VOUT-0.5V
• Output performance: take the input 3.7V lithium battery as an example, it can output 5V1.2A, 8V0.7A,9V0.6A, 12V0.5A.
• Please make sure the input current and output current do not exceed 1.5A.

Package Include:

• 1 x Mini Converter Boost Step Up DC-DC, 3V, 3.2V, 3.3V, 3.7V, 5V, 9V to 12V, PCB Board Module In Pakistan
