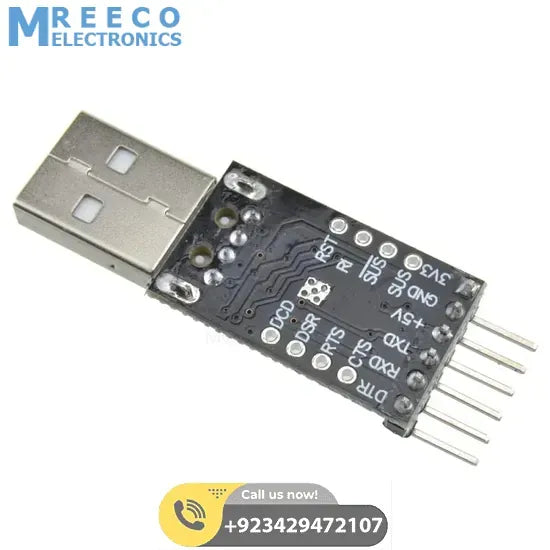

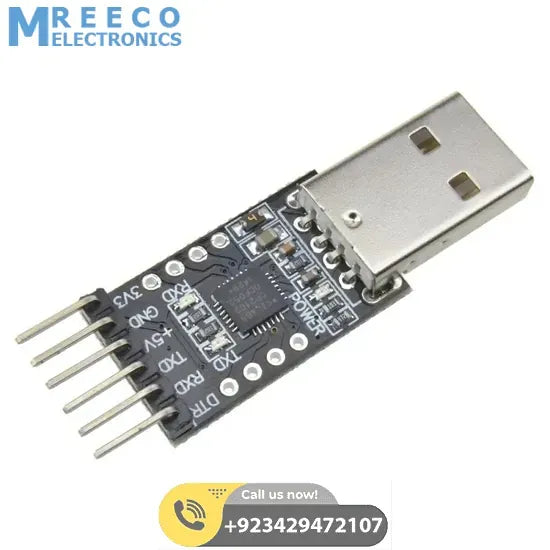

USB 2.0 To TTL UART Serial Converter CP2102

CP2102 its high integration, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART), supports full-featured modem signals, without any external USB device. CP2102 with other USB-UART adapter circuits works similar to the PC through the driver's USB port into a virtual COM port in order to achieve the purpose of expansion.

Features Of CP2102 USB 2.0 to TTL UART Module 6Pin Serial Converter Module 3.3V/5V Power:

• Included USB transceiver, without external circuit device
• Includes a clock circuit, no external circuitry
• Includes power-on reset circuit
• Chip 3.3V voltage regulator output voltage can be
• Meet the USB2.0 specification requirements
• SUSPEND pin supports USB suspend state
• Asynchronous serial data bus compatible with all handshake and modulation controller interface signals
• The supported data format is 8 data bits, 1 stop bit, and parity bits
• connotation 512 byte receive buffer and 512 bytes transmit buffer
• Supports hardware handshaking or X-ON/X-OFF

Specifications Of CP2102 USB TO UART Converter:

1. PCB dimensions: 26.5mm * 15.6mm
2. PCB Color: Black
3. Weight: 4g
4. Using a new chip factory in 2013 CP2102
5. With self-recovery fuse. In the event of an accidental short circuit, it can effectively protect your computer USB port and Downloader
6. With three LEDs: power indicator, data reception indicator, the data transmission indicator, working status
7. With 3.3V and 5V dual power output
8. Pin leads to all sorts of useful
9. With reset signal output, etc. directly to the FOR Arduino board Pro mini download!
10. Supported operating systems: Windows 98/Me/2000/XP/7, OS-9, OS, X-Windows CE, Linux 2.40 or later

Package Includes:

• 1 x 6Pin CP2102 Module
