USB Digispark ATTINY85 Developing Board

USB Digispark ATtiny85 Developing Board based microcontroller development board. ATtiny85 Developing Board is similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much.

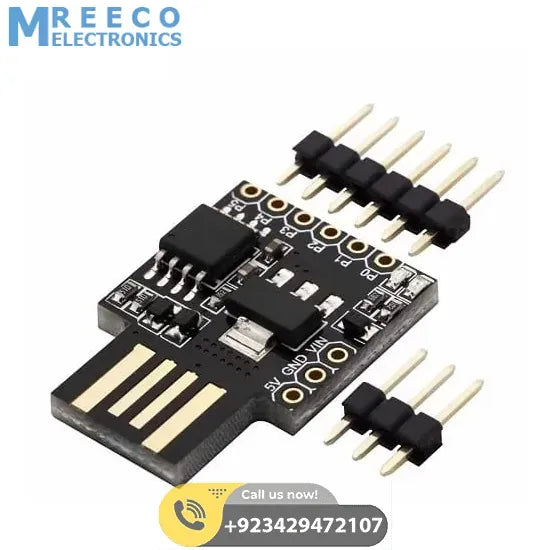

The Digispark is shipped fully assembled except for the two included and easy to solder headers.

Features of USB Digispark ATtiny85 Developing Board:

Attiny85 Digispark USB is the smallest Arduino compatible development board so far. Originally developed under the name Digispark and released under open source license. It has 6 port with several functions. Depending on the programming (with Arduino IDE) can it have 6 digital I/O, 4 analogue inputs or 3 PWM outputs. It can be powered by a USB port or an external power supply of 6?35V DC.

Specifications of USB Digispark ATtiny85 Developing Board:

1. Support for the Arduino IDE 1.0 (OSX/Win/Linux)
2. Power via USB or External Source? 5v or 7-35v
3. On-board 500ma, 5V Regulator
4. Built-in USB
5. 6 I/O Pins
6. 8k Flash Memory (about 6k after bootloader)
7. I2C and SPI (vis USI)
8. PWM on 3 pins (more possible with Software PWM)
9. ADC on 4 pins
10. Power LED and Test/Status LED

For more information, please follow the link to the official Digispark product page:?klick here.

Software and drivers:

Wiki For DigiSpark http://digistump.com/wiki/digispark

Connection And Driver Setup Tutorial http://digistump.com/wiki/digispark/tutorials/conn...

Package Includes:

• 1x USB A Digispark ATtiny85 Developing Board
